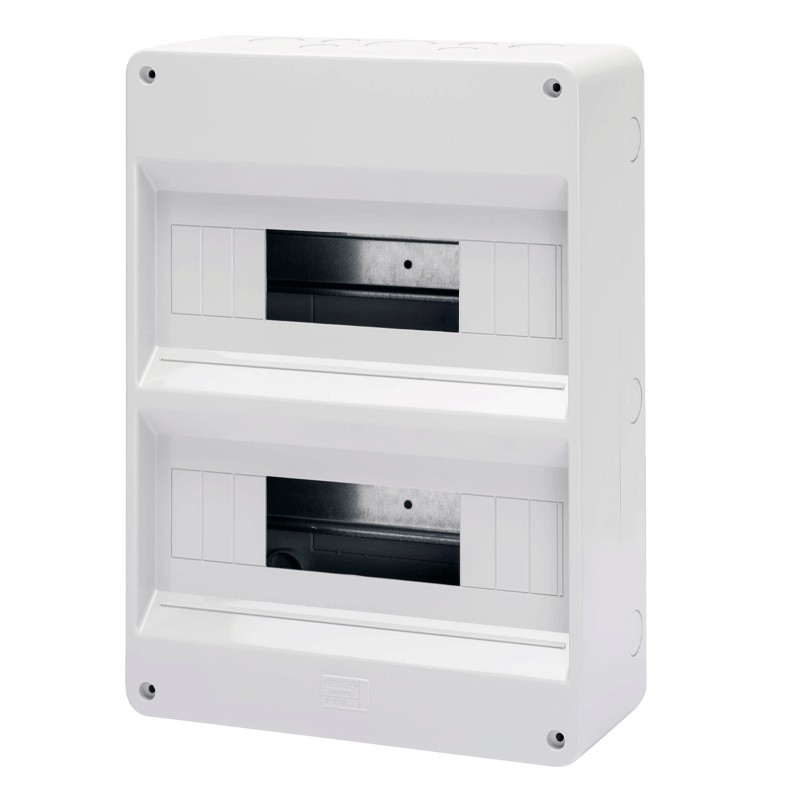

Gewiss protected switchboard 24+2 modules IP40 without door GW40030
GEW GW40030
8011564012172
Gewiss wall-mounted doorless protected switchboard, compact structure, with walls prepared for drilling and housing for terminal blocks. Ideal for indoor electrical installations, with the following features:
-
Number of modules: 24+2 (12x2)
-
Power dissipation: 40 W
-
Degree of protection: IP40
-
Walls: With drilling doilies
-
Arrangement: Housing for terminal blocks
-
Installation: Wall-mounted
€36.35
Items Available: 122
: 29
Switchboard functional structure for electrical installations
This doorless protected switchboard is an ideal solution for civil and tertiary installations where a reliable, compact and functional modular enclosure is required. The 24+2 module configuration on EN 50022 DIN rail (arranged in two rows of 12 modules) allows for the orderly installation of modular switches, protection devices and control components.
Easy wiring thanks to prearranged walls
The switchboard's side walls are equipped with drilling doilies, which allow for quick creation of custom cable runs, easily adapting to the needs of the installation. This feature facilitates site work, improving installation time and reducing manual adaptation work.
Provision for terminal blocks and IP40 protection
The internal compartment is prepared for housing terminal blocks, making the switchboard also suitable for installations that require neat and secure distribution points. The IP40 degree of protection makes it suitable for dry indoor environments, such as offices, technical rooms, domestic or commercial distribution boards.
Heat dissipation up to 40 W
The switchboard is capable of handling a power dissipation of 40 W, providing the thermal seal needed for high-density installed devices, without compromising the performance or durability of indoor equipment.
Gewiss Switchboard Technical Specifications
Technical Specifications
| Number of modules | 24+2 (12x2) - Standard EN 50022 |
| External Dimensions (BxHxD) | 250 × 340 × 95 mm |
| Power dissipation | 40 W |
| Degree of protection | IP40 |
| Installation | Wall-mounted |
Functionality and Design
| Walls | With drilling doilies for custom wiring |
| Arrangement | Housing for terminal blocks |
Perfetto per l'utilizzo con interruttori magnetotermici
Prodotto ottimo! consegnato nei tempi previsti e con un prezzo ottimo rispetto ai negozi del settore
Prodotto in linea con le aspettative e consegna puntuale
Data sheet
- Type: Front panels
- Modules: 24
- Degree of protection: IP40
- Model: Without door
Wall
