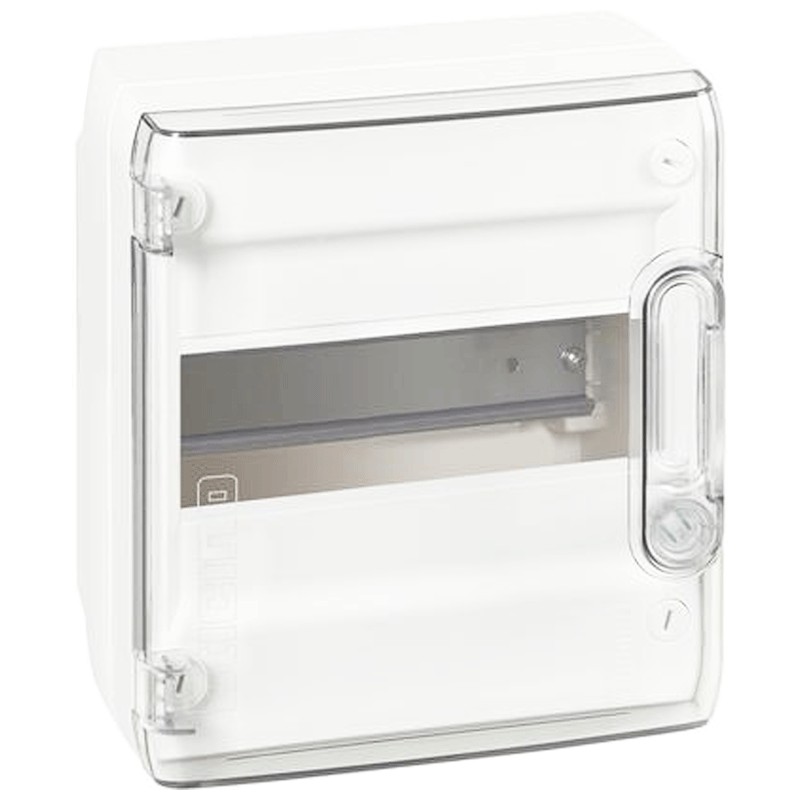

Bticino wall-mounted switchboard with door IP40 8 modules F305PT8
BTI F305PT8
8005543556009
Wall-mounted switchboard with transparent door Bticino, with the following features:
- Wall installation with DIN bar (universal connection that allows to hook any switch with DIN connection even of different brand)
- 8 DIN35 modules
- Degree of protection IP40 (protection against solid bodies 1mm) and IK07
Bticino wall-mounted switchboard with door IP40 8 modules F305PT8
€16.51
€16.51
Tax included
Tax included
Pay in installments with Klarna
Items Available: 77
Features:
- Bticino series
- Rated operating voltage 400 V AC - 50/60 Hz
- Rated insulation voltage 400 V AC - 50/60 Hz
- Short-circuit current 10 kA
- Power dissipation 11W
- Allowable current 40A
- Wall installation with DIN bar (universal connection that allows to hook any switch with DIN connection even of different brand)
- 8 DIN35 modules
- Degree of protection IP40 (protection against solid bodies 1mm) and IK07
- Meets IEC 60670-24 , CEI 23-48 , CEI 23-49, CEI 61439-3 standards
- Thermoplastic resin material
- Insulation class II
- Wall box in white RAL 9003 finish
- Operating temperature -10 +60°C
- Abnormal heat and fire resistance (EN 60695-2-11) 650°C
- Profile type DIN35: Galvanized steel
- Pre-set pre-cuts for pipes (diameter)16÷32mm
- Reversible door opening
- Box and cover colour white RAL 9003
- Self-extinguishing: 650°C
- Storage temperature from -25°C to +70°C
- Use temperature from -5°C to +40°C
- Installation temperature from -15°C to +60°C
- Height 200 mm
- Width 178 mm
- Depth 107 mm
molto ben studiato. ottima la qualità costruttiva
Centralino da esterno moto bello, solo un pò di dubbi sulle cerniere plastiche con piega, ma Bticino è sempre una garanzia
Prodotto di primaria marca a prezzo conveniente
Data sheet
- Type:
- Wall
- Modules:
- 8
- Degree of protection:
- IP40
- Model:
- With door
