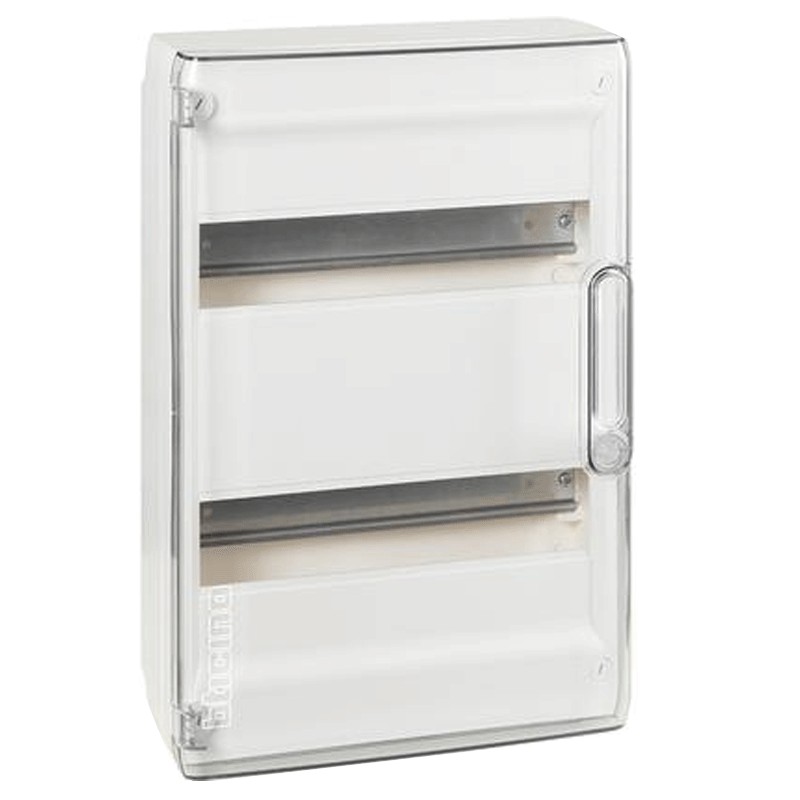

Bticino wall-mounted switchboard with door IP40 24 modules F305PT24
BTI F305PT24
8005543556047
Wall-mounted switchboard with transparent door Bticino, with the following features:
- Wall installation with DIN bar (universal connection that allows to hook any switch with DIN connection even of different brand)
- 24 DIN35 modules (on two rows)
- Degree of protection IP40 (protection against solid bodies 1mm) and IK07
€37.62
Items Available: 31
: 3
Ideal for small commercial installations
Features:
- Bticino series
- Rated operating voltage 400 V AC - 50/60 Hz
- Rated insulation voltage 400 V AC - 50/60 Hz
- Short-circuit current 10 kA
- Power dissipation 29W
- Allowable current 90A
- Wall installation with DIN bar (universal connection that allows to hook any switch with DIN connection even of different brand)
- 24 DIN35 modules (on two rows)
- Degree of protection IP40 (protection against solid bodies 1mm) and IK07
- Meets IEC 60670-24 , CEI 23-48 , CEI 23-49, CEI 61439-3 standards
- Thermoplastic resin material
- Insulation class II
- Wall box in white RAL 9003 finish
- Operating temperature -10 +60°C
- Abnormal heat and fire resistance (EN 60695-2-11) 650°C
- Profile type DIN35: Galvanized steel
- Pre-set pre-cuts for pipes (diameter)16÷32mm
- Reversible door opening
- Box and cover colour white RAL 9003
- Self-extinguishing: 650°C
- Storage temperature from -25°C to +70°C
- Use temperature from -5°C to +40°C
- Installation temperature from -15°C to +60°C
- Height 385 mm
- Width 250 mm
- Depth 112 mm
Valido prodotto alle altezze delle aspettative
come da descrizione. economico rispetto altri siti. perfetto
Molto soddisfatto del servizio.
Servizio clienti eccellente.
Data sheet
- Type: Front panels
- Modules: 24
- Degree of protection: IP40
- Model: With door
Wall
