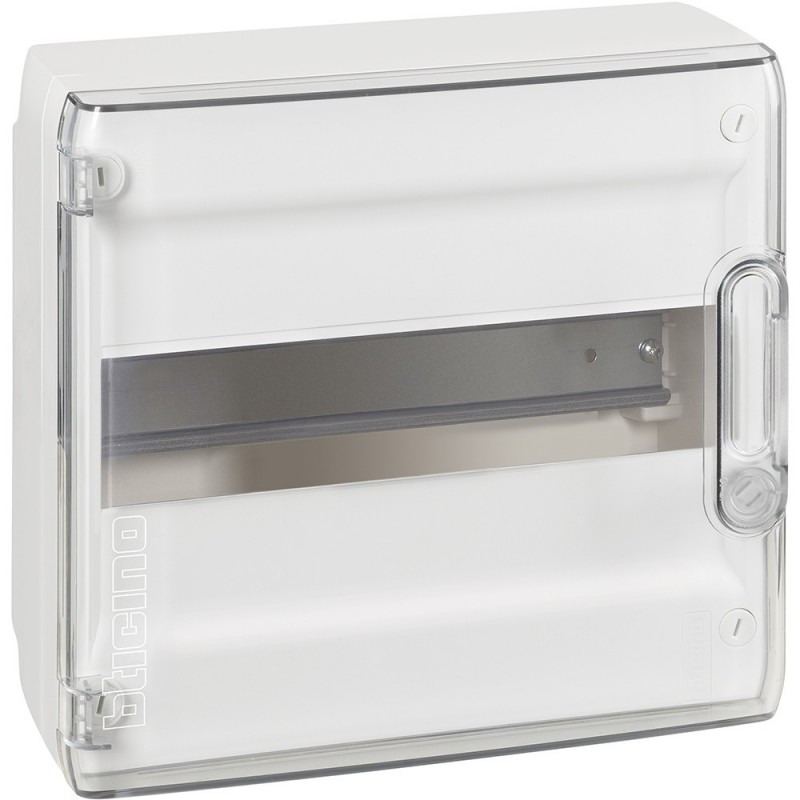

Bticino wall-mounted switchboard with door IP40 18 modules F305PT18
BTI F305PT18
8005543545829
Wall-mounted switchboard with transparent door Bticino, with the following features:
- Wall installation with DIN bar (universal connection that allows to hook any switch with DIN connection even of different brand)
- 18 DIN35 modules
- Degree of protection IP40 (protection against solid bodies 1mm) and IK07
€36.70
Items Available: 10
: 1
Ideal for small commercial installations
Features:
- Bticino series
- Rated operating voltage 400 V AC - 50/60 Hz
- Rated insulation voltage 400 V AC - 50/60 Hz
- Short-circuit current 10 kA
- Power dissipation 43W
- Maximum admissible current 63A
- Wall installation with DIN bar (universal connection that allows to hook any switch with DIN connection even of different brand)
- 18 DIN35 modules
- Degree of protection IP40 (protection against solid bodies 1mm) and IK07
- Meets IEC 60670-24 , CEI 23-48 , CEI 23-49, CEI 61439-3 standards
- Thermoplastic resin material
- Insulation class II
- Wall box in white RAL 9003 finish
- Operating temperature -10 +60°C
- Abnormal heat and fire resistance (EN 60695-2-11) 650°C
- Profile type DIN35: Galvanized steel
- Pre-drilled for pipes (diameter) 16-32mm
- Fully reversible (back, lid and door)
- Distance between guides 150 mm
- Lockable door handle
- Removable and articulated frame
- Tightening torque for plastic cover screws 2 Nm
- Box and lid colour white RAL 9003
- Self-extinguishing: 650°C
- Storage temperature -20°C to +70°C
- Operating temperature -5°C to +40°C
- Installation temperature -15°C to +60°C
- Height 300 mm
- Width 450 mm
- Depth 150 mm
Data sheet
- Type: Front panels
- Modules: 18
- Degree of protection: IP40
- Model: With door
Wall
