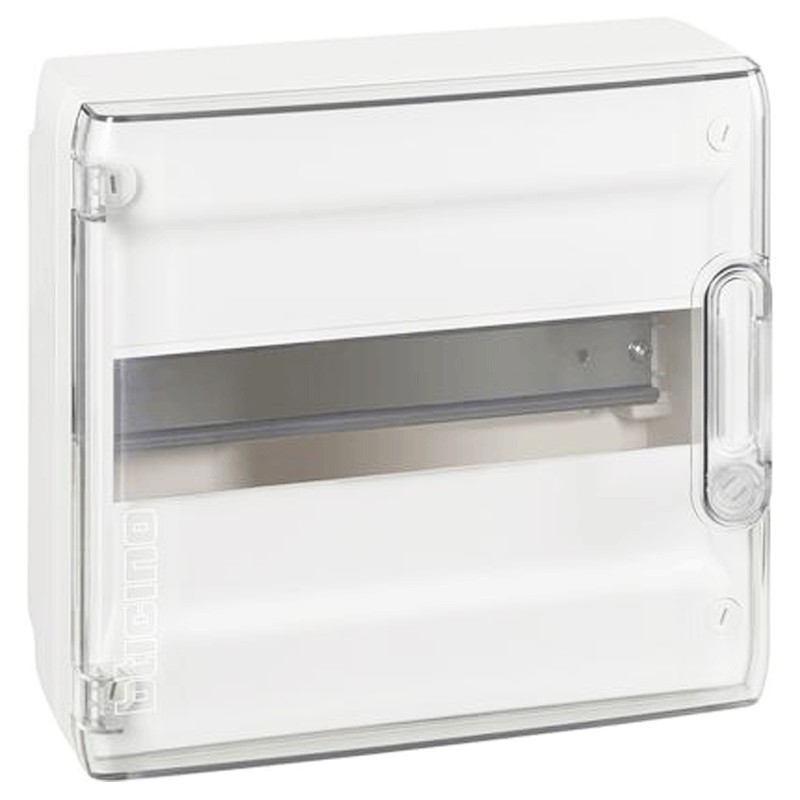

Bticino wall-mounted switchboard with door IP40 12 modules F305PT12
BTI F305PT12
8005543556023
Wall-mounted switchboard with transparent door Bticino, with the following features:
- Wall installation with DIN bar (universal connection that allows to hook any switch with DIN connection even of different brand)
- 12 DIN35 modules
- Degree of protection IP40 (protection against solid bodies 1mm) and IK07
€24.86
Items Available: 82
: 12
Features:
- Bticino series
- Rated operating voltage 400 V AC - 50/60 Hz
- Rated insulation voltage 400 V AC - 50/60 Hz
- Short-circuit current 10 kA
- Power dissipation 22W
- Allowable current 63A
- Wall installation with DIN bar (universal connection that allows to hook any switch with DIN connection even of different brand)
- 12 DIN35 modules
- Degree of protection IP40 (protection against solid bodies 1mm) and IK07
- Meets IEC 60670-24 , CEI 23-48 , CEI 23-49, CEI 61439-3 standards
- Thermoplastic resin material
- Insulation class II
- Wall box in white RAL 9003 finish
- Operating temperature -10 +60°C
- Abnormal heat and fire resistance (EN 60695-2-11) 650°C
- Profile type DIN35: Galvanized steel
- Pre-set pre-cuts for pipes (diameter)16÷32mm
- Reversible door opening
- Box and cover colour white RAL 9003
- Self-extinguishing: 650°C
- Storage temperature from -25°C to +70°C
- Use temperature from -5°C to +40°C
- Installation temperature from -15°C to +60°C
- Height 235 mm
- Width 250 mm
- Depth 112 mm
Tutto bene grazie installato non presenta nessuna criticità
Elegante, economico e funzionale L.
La Ticino si distingue sempre
Prodotto di ottima fattura, e di facile installazione
Data sheet
- Type: Front panels
- Modules: 12
- Degree of protection: IP40
- Model: With door
