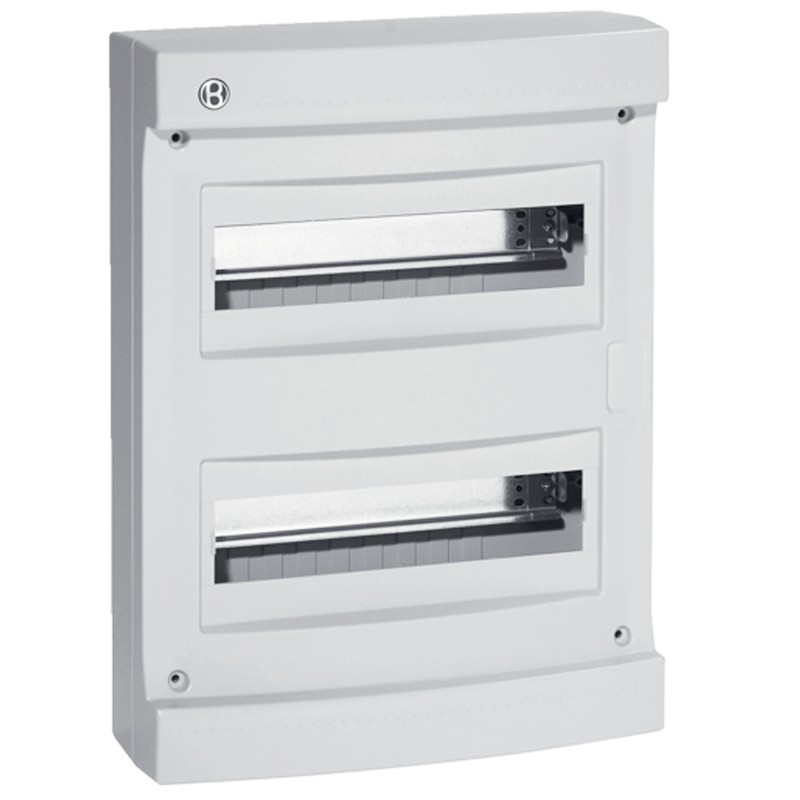

Bocchiotti switchboard without door 24 modules IP40 B04020
IBO B04020
8015892040203
Switchboard without hatch Bocchiotti, with the following features:
- Wall installation with DIN bar (universal connection that allows to hook any switch with DIN connection even of different brand)
- 24 modules (in two rows)
- Degree of protection IP40 (protection against solid bodies 1mm)
€28.90
Items Available: 16
: 9
Features:
- Bocchiotti Series
- Rated current 125 A
- Wall installation with DIN bar (universal connection that allows to hook any switch with DIN connection even of different brand)
- 24 modules (in two rows)
- Degree of protection IP40 (protection against solid bodies 1mm)
- Protruding fixing method
- Colour light grey RAL 7035
- Material plastic
- Depth 113 mm
- Inside depth 113 mm
- Height 400 mm
- Width 300 mm
- Insulation protection class II
- Degree of resistance to glow wire according to EN 60695-2-11: 960°C
- Operating temperature -25...60 °C
There are no reviews
Data sheet
- Type: Front panels
- Modules: 24
- Degree of protection: IP40
- Model: Without door
Wall
