Fischer hook RH 40-52 H AL 3 adjustments for photovoltaic aluminum 00571742
FIS 00571742
8001132116883

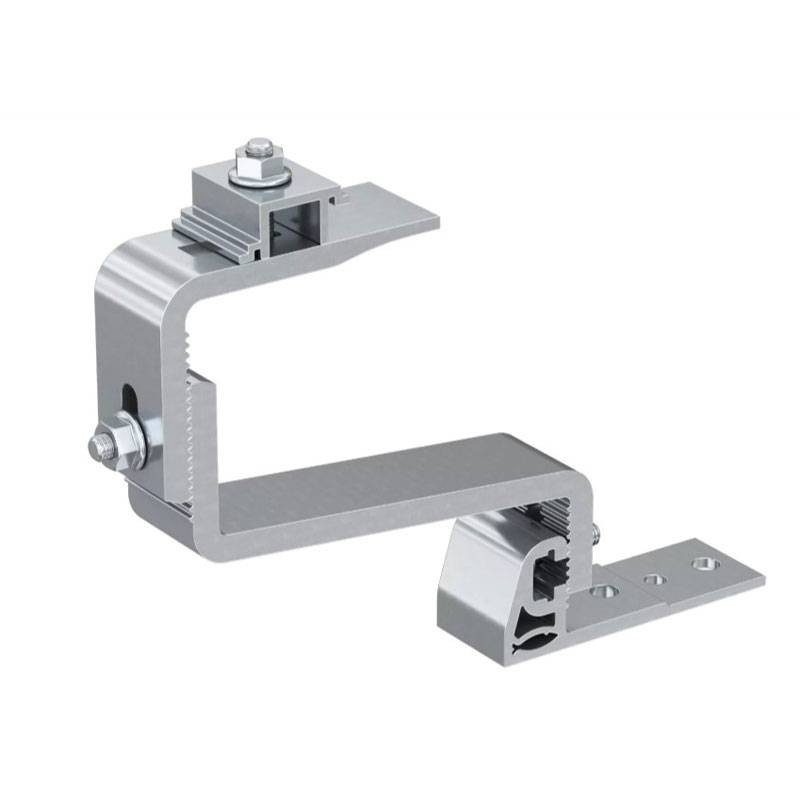

Aluminum hook RH 40-52 H AL with 3 adjustments, for pitched roofs with variable thickness tiles and ventilation battens. Compatible with Solar profiles, with the following features:
-
Three adjustments: Vertical lower, vertical upper and horizontal
-
Adjustment: 40 to 52 mm to accommodate different batten thicknesses
-
Plug-in joint: Quick for Solar profiles, without additional accessories
-
High load capacity: Fewer hooks needed per installation
-
Material: Aluminum
-
Installation: Easy and pre-assembled, ready to use
€13.57
Items Available: 582
: 90
Modular hook for pitched roofs with tile covering

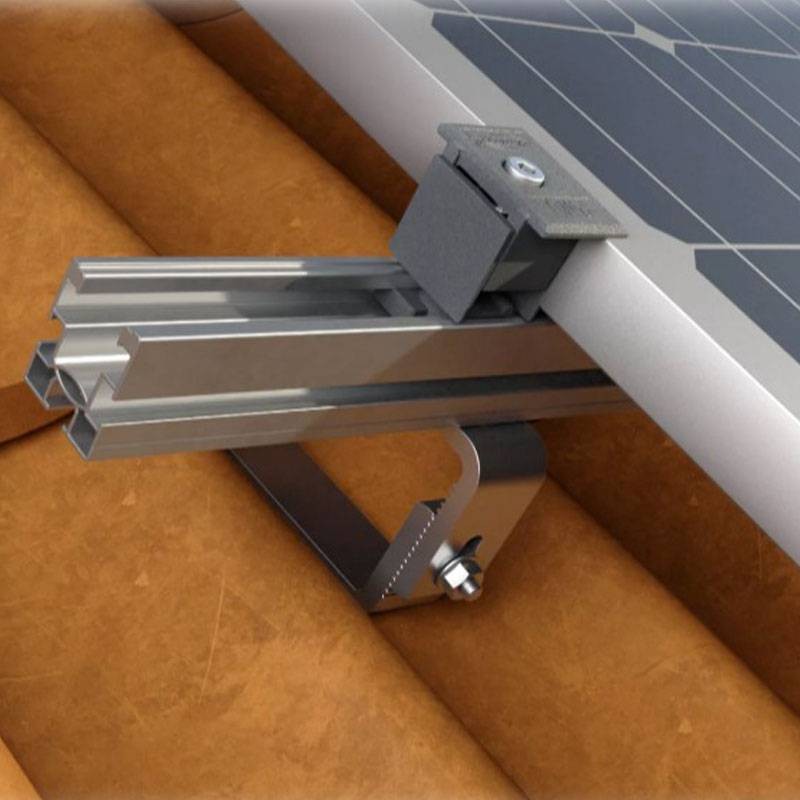

The Fischer RH 40-52 H AL hook is designed for the installation of PV systems on pitched roofs with a tiled covering. With its three independent adjustments, it offers maximum adaptability to every roof configuration and ensures precise and secure installation of support profiles.
Flexible adjustments for every need
-
Lower vertical adjustment: allows adaptation to different thicknesses of tile and ventilation batten
-
Upper vertical adjustment: allows correct spacing of the profile from the tile surface
-
Horizontal adjustment: allows precise alignment of the profile along the lateral axis
This system of adjustments makes the hook extremely versatile and suitable for many structural configurations.
Maximum strength and durability
Made of aluminum alloy, the RH 40-52 H AL hook is lightweight yet strong, able to withstand regulation-compliant snow and wind loads. Its geometry is designed to avoid direct contact with the tile, even under maximum load conditions.
Quick engagement and compatibility
The 180° quick-rotation top joint allows direct connection to SolarLight and SolarFish profiles without the use of additional hardware. This makes installation faster and safer, reducing installation time and costs.
Technical Specifications Fischer Hook

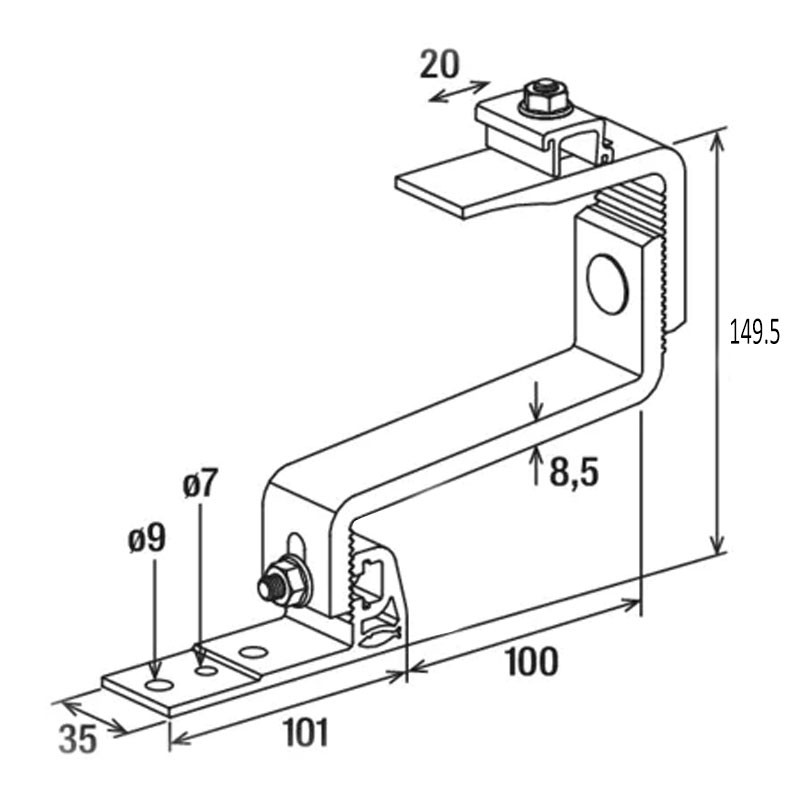

Dimensional Data
| Vertical Adjustment | 40-52 mm |
|---|---|
| Overall height | 119.5 - 149.5 mm |
| Thickness | 8.5 mm |
Technical Specifications
| Tightening torque | 20 Nm |
|---|---|
| Torque wrench | 13 mm |
| Degree of compatibility | SolarLight and SolarFish profiles |
Application
| Area of use | Pitched roofs with tiles and ventilation battens |
|---|
excellent produit facile à mettre en oeuvre
Professionali e veloci nonchè pronti ad affrontare e risolvere ogni problema
Ottimo prodotto di marca. Già lo conoscevo per cui tutto ok
Data sheet
- Type: Fixing Accessories
