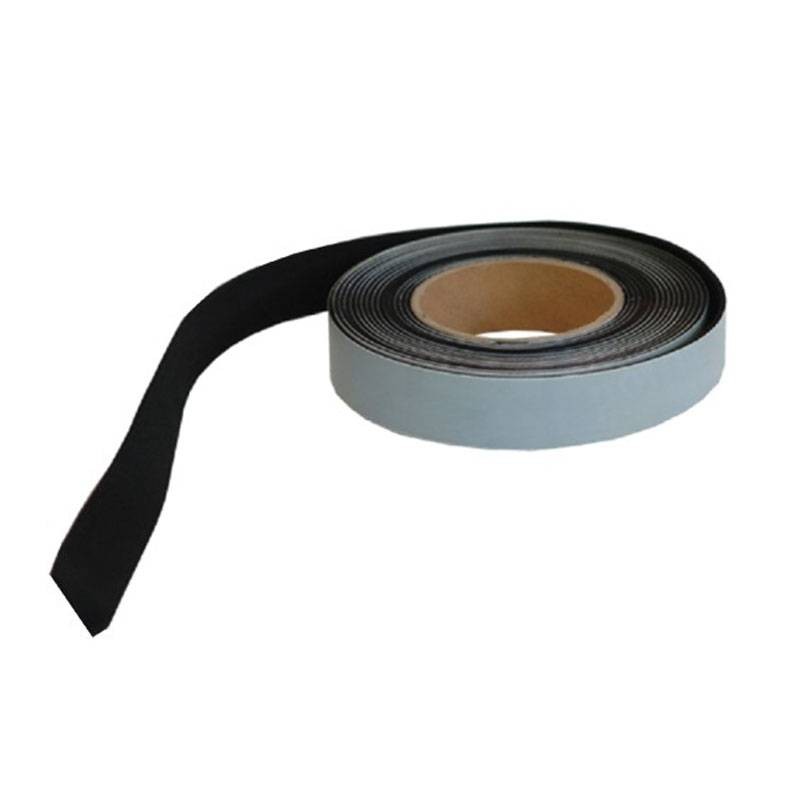

Alusistemi Waterproofing Butylene Gasket Tape 10 meters ATL077
ALS ATL077
Alusistemi butylene waterproofing tape with polyester mesh, ideal for secure fastening of photovoltaic profiles on trapezoidal sheet metal. It optimizes waterproofing and prevents seepage into fixing holes, with the following features:
-
Length: 10 meters
-
Width: 30 mm
-
Thickness: 1.5 mm
-
Material: butyl compound reinforced with polyester mesh
-
Adhesive with protective film
-
High tensile strength and elongation
€21.11
Items Available: 3
: 2
Alusistemi Professional Waterproofing Tape for Photovoltaic Fasteners
Sealing tape is designed to ensure effective sealing of holes made for mounting aluminum profiles or accessories on metal roofs. The highly adhesive butylene composition combined with polyester mesh ensures strong and durable adhesion, even in extreme weather conditions.
Simple application, guaranteed result
Using the tape together with self-drilling screws, it is possible to install photovoltaic profiles directly on trapezoidal sheet metal, protecting the hole from infiltration dacqua and optimizing the tightness of the fastening.
Why choose Alusistemi tape
-
Guaranteed watertightness
-
Quick and easy installation
-
Compatible with solar systems and aluminum structures
-
Weather and UV resistance
Ideal for:
-
Photovoltaic fastening systems
-
Sealing on trapezoidal sheet metal
-
Exterior installations on metal roofs
-
Use in environments with wide temperature range
Technical Specifications Butyl Sealing Tape
| Length | 10 meters |
| Width | 30 mm |
| Thickness | 1.5 mm |
| Color | Black |
| Material | Butyl compound + polyester mesh |
| Density | 130 kg/m³ |
| Longitudinal traction | >140 N/50 mm |
| Transverse traction | >205 N/50 mm |
| Elongation at break | >15% |
| Adhesion at 180° | 35 N/cm |
| Application temperature | +5°C TO +40°C |
| Operating temperature | -30°C TO +130°C |
| Reference standards | EN 12311-1, ASTM D1000, ASTM D2979 |
There are no reviews
Data sheet
- Type: Adhesive Tapes
