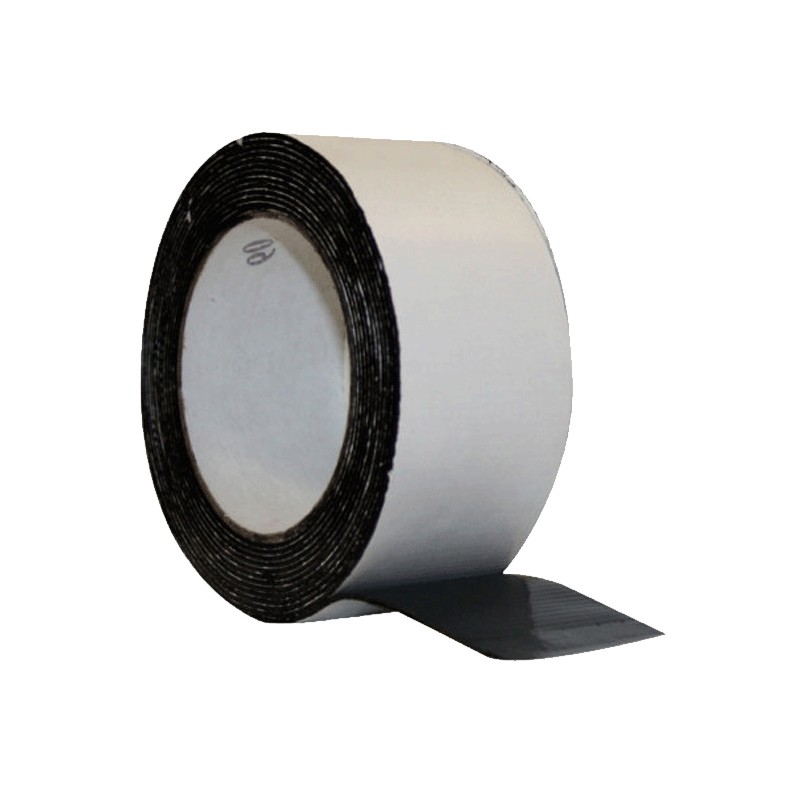

Orbis BU-50 double-sided butyl tape 30 mm x 10 m polyester OB620900
ORB OB620900
8426709923426
Orbis BU-50 double-sided butyl tape with high cold tack and polyester mesh reinforcement. Perfect for joints and waterproofing of photovoltaic systems, with the following characteristics:
-
Butyl biadhesive reinforced with polyester mesh.
-
High cold adhesion, resistant up to +130 degrees
-
Length 10 m - Width 30 mm - Thickness 1.5 mm
-
Ideal for sealing and fastening under solar panel brackets
-
Contains no solvents, 100% solid
-
Classification of reaction to fire M1 / Class E
€22.91
Items Available: 24
: 11
Orbis tape reliable waterproofing for photovoltaic systems
Orbis BU-50 tape is designed to provide perfect adhesion on metal surfaces and photovoltaic structures. Thanks to its high-adhesion butyl compound and polyester-reinforced structure, it provides durable, weather-resistant sealing, even in outdoor environments.
High performance in all conditions
BU-50 is distinguished by its excellent cold adhesion, without the need for primer or heating, and its superior mechanical properties: it resists tensile and elongation without deforming or breaking. It can be applied in a temperature range of +5 °C to +40 °C and works effectively from -30 °C to +130 °C.
Easy to apply, safe to use
The tape is solvent free, so it is safe to handle even in sensitive environments. It is classified M1 for flammability and class E for reaction to fire, according to European standards. Perfect for use under brackets in combination with other waterproofing accessories such as BI-ARS4.
Features Butyl Tape with Polyester Mesh
| Composition | Butyl compound with polyester mesh reinforcement |
|---|---|
| Color | Black |
| Dimensions | 30 mm × 10 m |
| Thickness | 1.5 mm |
| Longitudinal tensile strength | ≥ 140 N/50 mm |
| Transverse tensile strength | ≥ 205 N/50 mm |
| Elongation at break | 15 % (longitudinal and transverse) |
| 180° Adhesion (Peel Adhesion) | 35 N/cm |
| Initial Tack (Probe Tack) | 10 N |
| Application Temperature | +5 °C ÷ +40 °C |
| Operating Temperature | -30 °C ÷ +130 °C |
| Solids | 100 % - Solvent-free |
| Reaction to fire | Class M1 (UNE) / Class E (EN 11925-2, EN 13501-1) |
There are no reviews
Data sheet
- Type: Adhesive Tapes
