RCF PL 8X in-wall speaker 20W 100V white 13133043
MAD 13133043
8024530004965

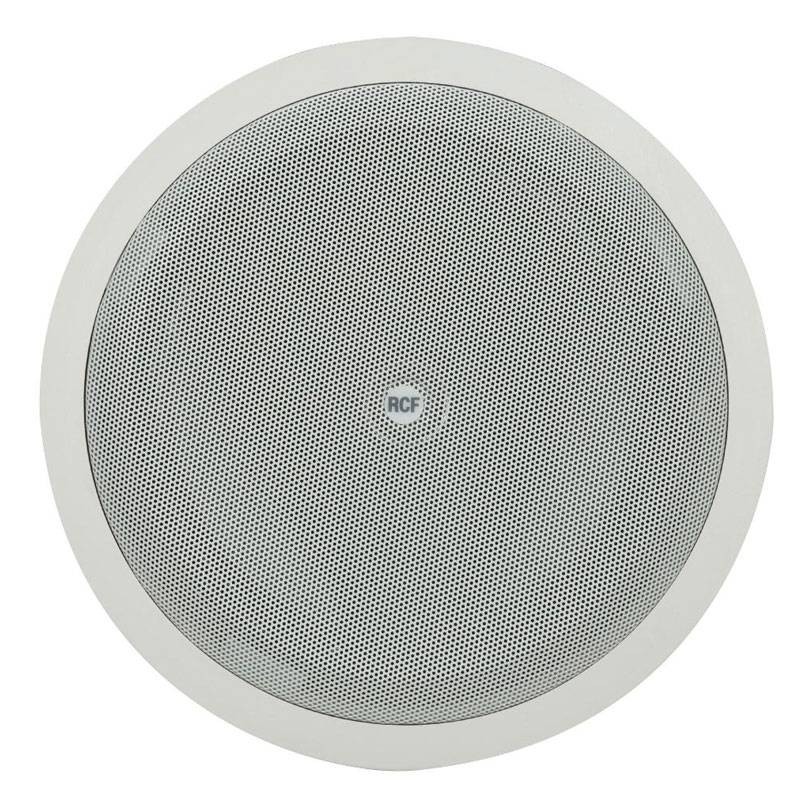

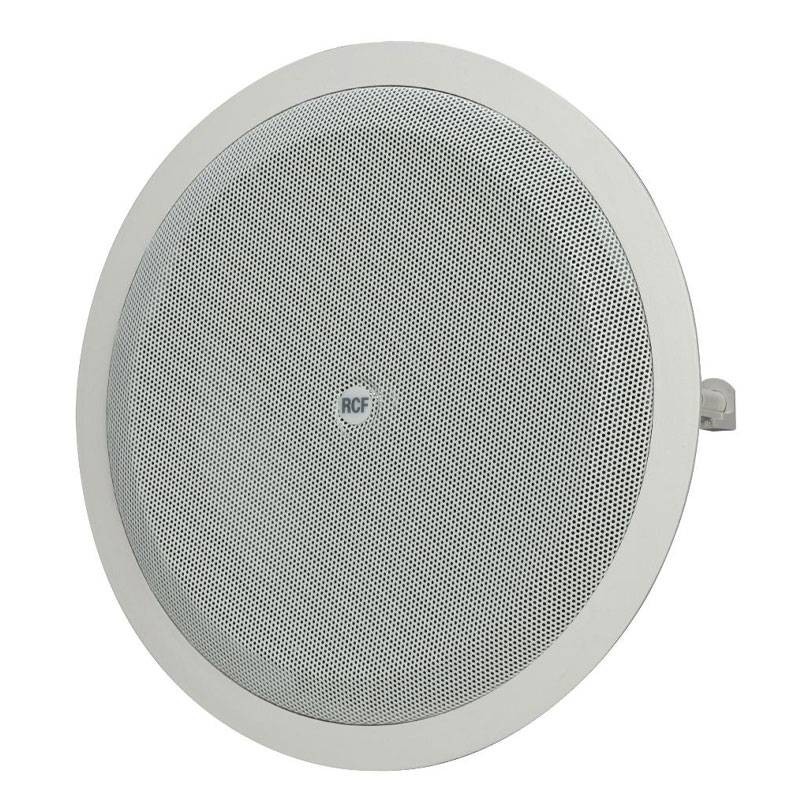

RCF PL 8X in-wall speaker with the following features:
- 8" woofer with 1" tweeter.
- Selectable power (70V - 100V): 20W 10W 5W 2.5W
- 93 dB sensitivity
- Coverage angle: 80 degrees
- Color: White
- Plastic front, steel grille
Elegantly and uniquely designed ceiling-mounted diffuser, suitable for recessed installation in false ceilings or panels.
€61.81
Items Available: 3
: 2
Elegantly and uniquely designed ceiling-mounted loudspeaker, suitable for recessed installation in false ceilings or panels.

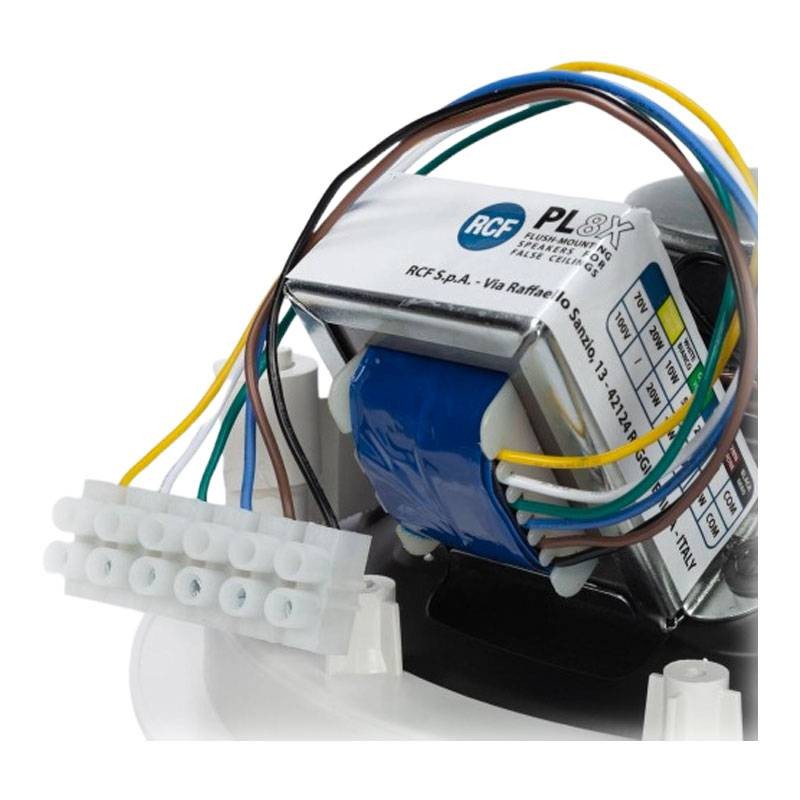

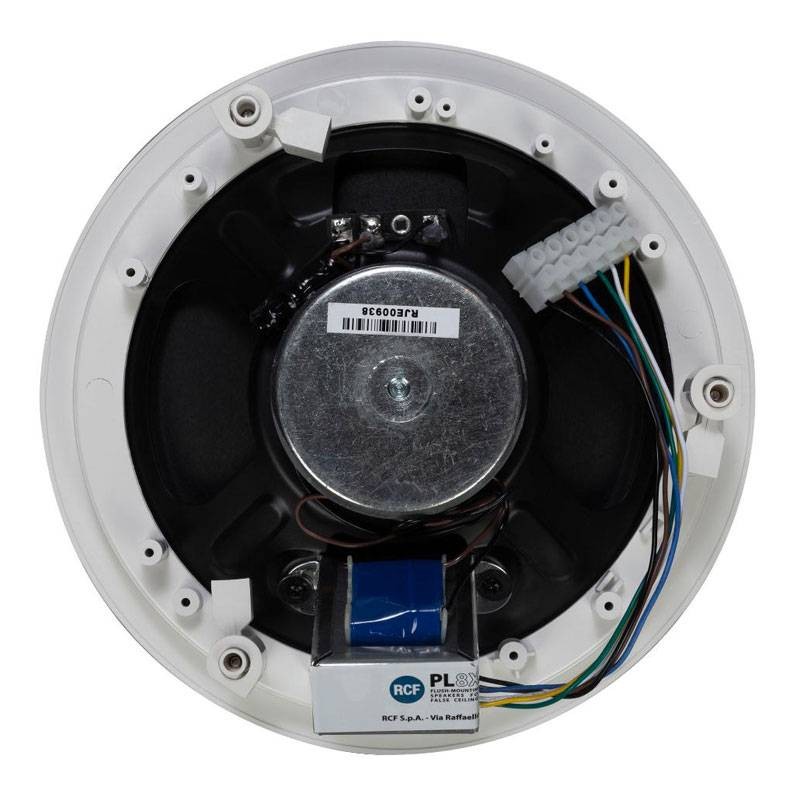

It employs 8'' loudspeaker with 1'' coaxial tweeter mounted on a bridge stand. It is equipped with a line transformer that allows direct connection to 70V or 100V constant voltage systems.
Thanks to the line transformer's multiple sockets, it is possible to select the power to be spread among several available values. Ceiling installation is quick and easy thanks to a special three-hook rotating system that avoids the use of screws and anchors or other fasteners.
Features:
- Frequency response (-10dB): 60 Hz ÷ 20000 Hz
- Maximum SPL at 1 m: 109 dB
- Coverage angle: 80°
- System sensitivity: 93 dB
- Input connectors: Screw terminals
- Output connections: Screw terminals
- Constant Voltage Transformer: 70/100 V
- Cabinet/Case Materials: Plastic
- Hardware: Plastic
- Grille: Aluminum

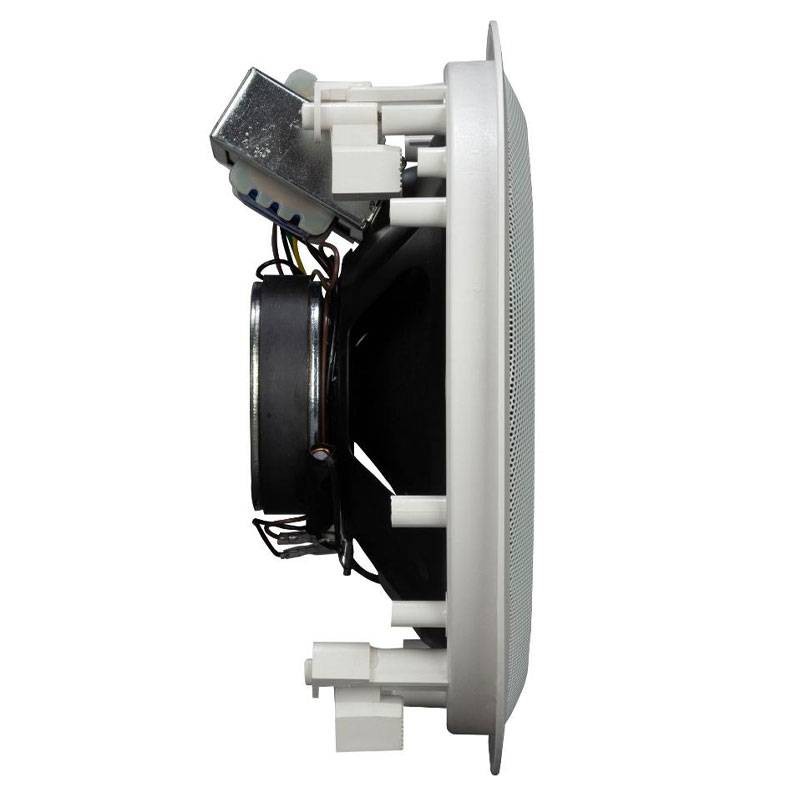

- Depth: 88 mm
- Recessed Depth: 80 mm
- Diameter: 247 mm
- Cutting diameter: 224 mm
There are no reviews
Data sheet
- Type: Loudspeakers
