Comelit wall-mounted EN54-24 round loudspeaker with 100V transformer 49DPQ110
COE 49DPQ110
8023903402612
Comelit round wall-mounted EN54-24 loudspeaker with the following features:
- Equipped with 165mm ful-range speaker (HQ)
- 100V transformer with four levels of power adjustment (10-6-3-1.5 W)
- Material: metal material body with powder coating
- Color: white
- Designed and built for use in emergency and evacuation systems
€66.36
Items Available: 42
: 14

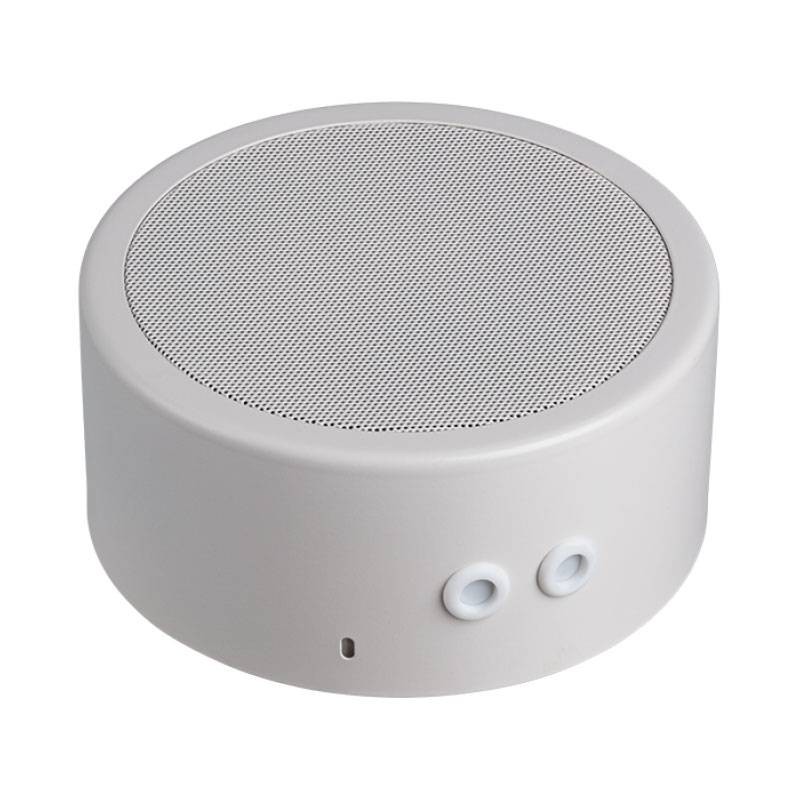

The round speaker features a body made of metal material with white powder coating. It is equipped with 165mm ful-range speaker (HQ) and 100V transformer with four power adjustment levels (10 / 6 / 3 / 1.5 W).
Designer speaker designed for wall- or ceiling-mounted installation, providing excellent strength and durability of the outer frame. Equipped with ceramic terminal block and thermal fuse to safeguard the speaker connection line in case a possible fire knocks out one or more speakers connected to it. Designed and built for use in emergency and evacuation systems. Certified to EN 54-24 standard.
Features:
- IP21 degree of protection
- Product color White
- Application type A
- Type of mounting Wall/ceiling
- Operating temperature (°C) -10 to 55
- Height (mm) 75
- Cable cross section for terminals (mm) 0.2 ÷ 4
- Diameter (mm) 170
- Rated power 10 / 6 / 3 / 1.5 W
- Impedance (100V) 1000/1667/3333/6667 Ohm
- Sound pressure level (SPL) IEC268- 5, 1W/1m, (dB) 102.2
- Sound pressure level (SPL) IEC268- 5, 1W/4m, (dB) 90.2
- Sound pressure level (SPL) IEC268- 5, Pmax./4m, (dB) 100.2
- Sensitivity EN54-24, 1W/4m (dB) 81
- Frequency range (-10dB) IEC268-5 (Hz) 290 ÷ 23400
- Frequency response (Hz) 230 ÷ 24000
There are no reviews
Data sheet
- Type: Loudspeakers
