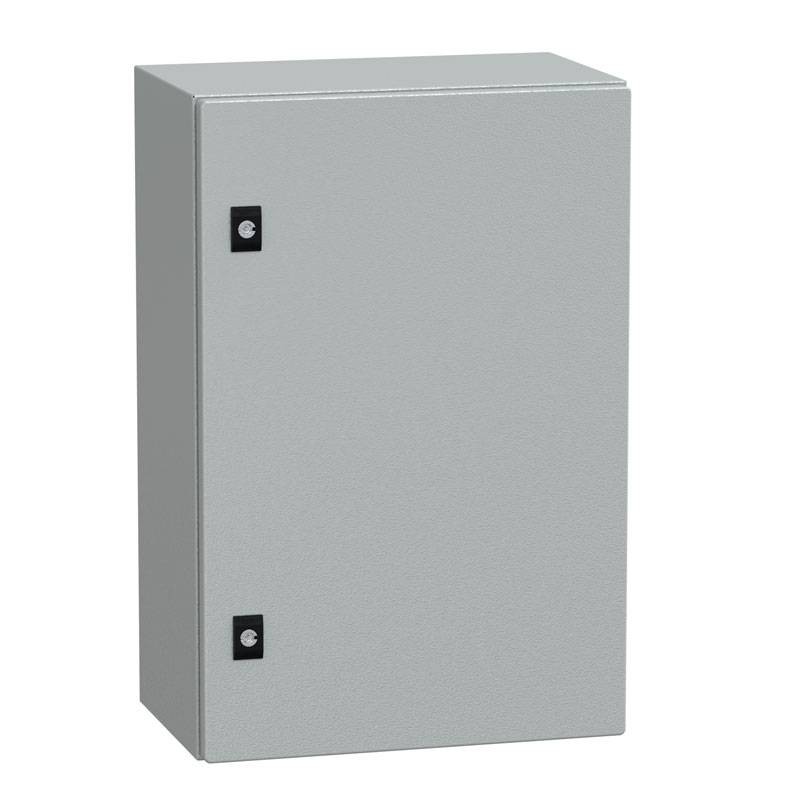

Solid door + plate Schneider CRN 600X400x250mm NSYCRN64250P
SNR NSYCRN64250P
3606480212123
Solid door + Schneider CRN plate with the following features:
- Installation accessory type: wall mounting
- Door type: Simple
- Mounting plate description: Flat
- Number of doors: Front side 1 door
- Door opening: Reversible (120°)
- Locking device type: 3mm double bar lock
- Material: Container: steel
- Mounting plate: galvanized sheet metal: surface finish
- Container: epoxy-polyester powder
€159.96
Items Available: 1
Frequently bought together
Advantages:
- Steel box for wall mounting with solid door
- Dimensions: 400 x 300 x 200 mm
- Backside welded with double profile to form a protected sealed area
- Sides made from a single bent section
- 3 mm double bar lock insert
- Made of steel with polyester-based epoxy powder coat finish
- IP66, IK10 degrees of protection
- RAL 7035 gray
Features:
- Body type: Side panels made in one piece - Welded on the back with double profile to form a sealed protected zone
- Removable parts: Door with hinges - Cable gland plate With screws - Mounting plate with fastener
- IP degree of protection: IP66 according to IEC 60529
- IK degree of protection: IK10 in accordance with IEC 62262
Dimensions and weight:
- Nominal cassette height: 600 mm
- Nominal cassette width: 400 mm
- Nominal cassette depth: 250 mm
- Weight: 13,811 kg
Device composition:
- 1 body
- 1 gland plate
- 1 door with lock
- 1 mounting plate
There are no reviews
Data sheet
- Type: Enclosures
- Degree of protection: IP66
