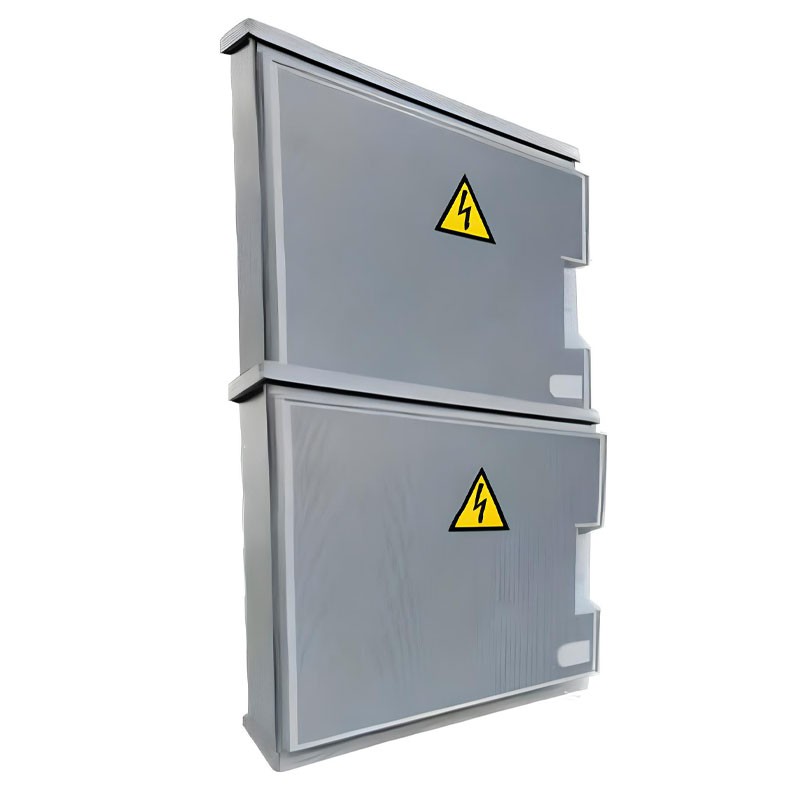

Double OEC fiberglass ARE/C-SS stacked enclosure for IP44 meters S03743SW

OEC
OEC
OEC S03743SW 859095357892

Double OEC fiberglass ARE/C-SS container, stacked for single-phase and three-phase meters, with the following features:

  • Number of compartments: 2 (expandable up to 4)

  • Degree of protection: IP44

  • Lock: Three-point, triangular + padlockable

  • Bottom: Open

  • Provision: Single-phase / three-phase measuring units

  • Fixing: Floor mounted with frame or base

  • Material: SMC fiberglass

  • Colour: Grey

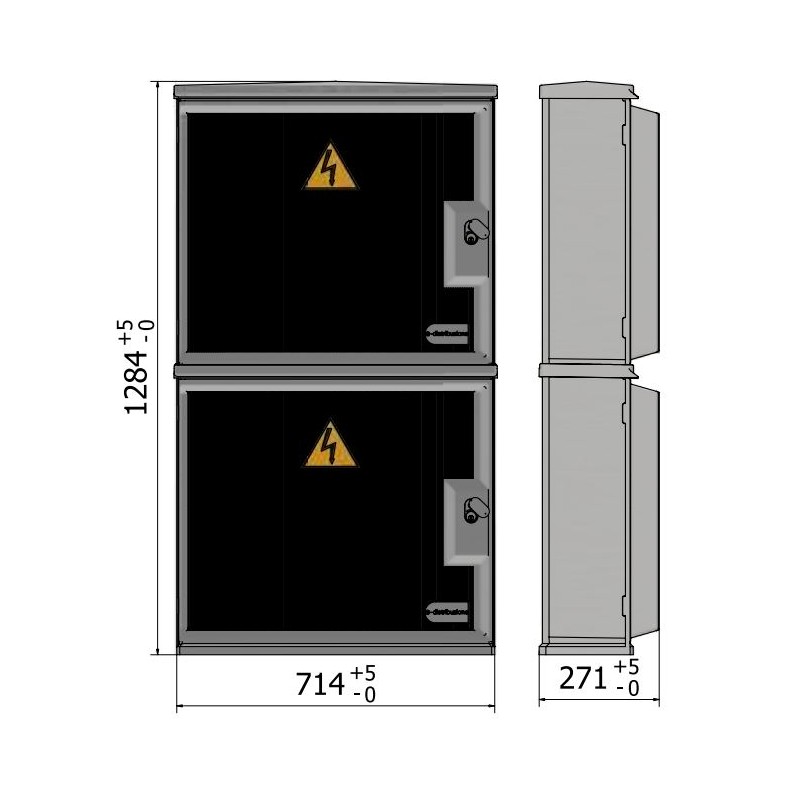

  • Dimensions: 710x1280x270 mm (WxHxD)

Do you have questions about this product or did you not find what you were looking for? Ask us!
Double OEC fiberglass ARE/C-SS stacked enclosure for IP44 meters S03743SW
€340.99
€340.99

€340.99
Tax included
Calculate shipping cost
Items Available: 18
Further availability of the manufacturer
€340.99

Buy it within and receive it from Monday, 29 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Frequently bought together

Double stacked electrical cabinet Series ARE/C-SS.

The OEC enclosure, is part of the ARE/C-SS series and is made of high-strength SMC fiberglass, designed for outdoor installation with single-phase or three-phase electric measurement units, both traditional and electronic. The structure is stackable, with two vertical bins to double the interior space, and is expandable to 3 or 4 modules for greater application flexibility.

Sturdy, modular and easily accessible structure

  • Hinged ribbed doors with 90° opening, which can be completely removed for easy access

  • Three-point, padlockable lock on both compartments (top and bottom) and provision for triangular, pin, Yale or national keys (upon request)

  • Passive ventilation provided by internal labyrinth between lid and walls

  • Supplied with open bottom for easy cable management

  • Prepared for floor mounting by frame or base (accessories not included)

Regulatory compliance and safety

The enclosure complies with the latest CEI and ENEL standards, offering mechanical strength, water and dust protection, as well as:

  • Flame resistance > 80 points (ENEL DS4974)

  • Impact resistance 20J (CEI EN 61439-5)

  • Surface current resistance: PTI 500 (IEC 60112)

  • IEC EN 61439-5 / A1 certification

Recommended applications

  • Installation of single-phase or three-phase measurement units

  • Distribution boards for civil, industrial or public electrical installations

  • Metering and distribution substations in accordance with ENEL specifications

  • Modular vertical expansion of meters in outdoor environments

There are no reviews

Data sheet

Type:
Enclosures
