Schneider PrismaSeT G L850mm H1880mm 33M IP30 Floor Cabinet LVS08244
SNR LVS08244
3606481876447

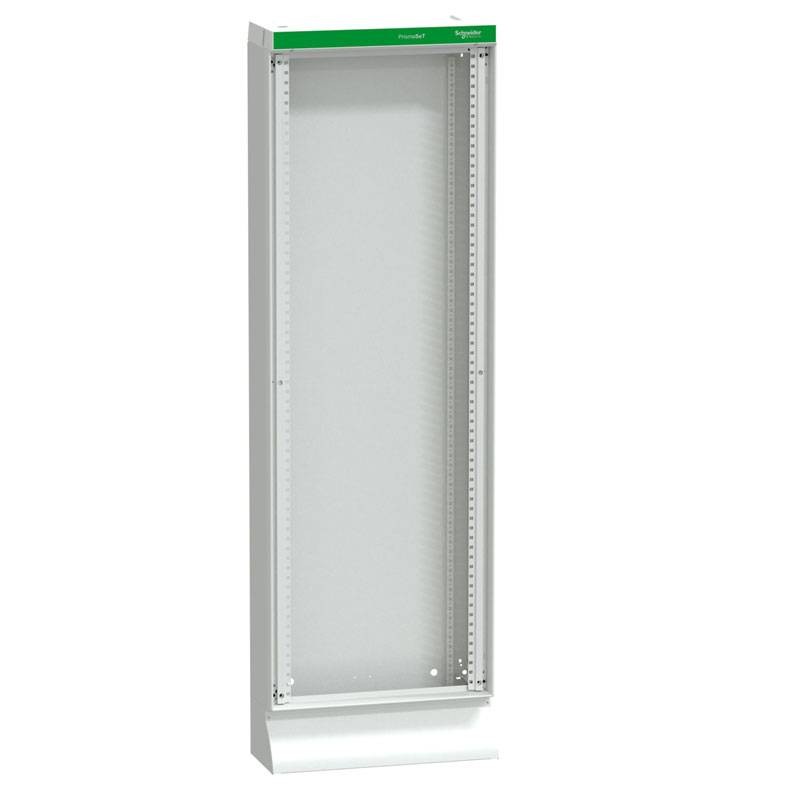

Schneider PrismaSeT G floor cabinet W850mm H1880mm 33M with the following features:
- Product range: PrismaSet G
- Device application: low-voltage electrical distribution
- Description of enclosure/cabinet: Floor standing cabinet - width 850mm
- Can be combined side by side
- Number of vertical modules (50 mm): 33
- Number of 18mm modules per row: 36
- Rated insulation voltage: 1000V on the rear main busbars according to IEC 61439-2
- Rated current: 630 A at 40 °C in accordance with IEC 61439-2
- Short-circuit current: 50 kA
- Degree of protection IP30
- Rated short-time withstand current: 25 kA 1 s complying with IEC 61439-1
- Rated peak withstand current: 53 kA complying with IEC 61439-1
€1,099.06
Items Available: 5
Specifications:
- Case type: Functional enclosure delivered as a kit
- Metalenclosure
- Indoorenclosure
Kit composition:
- Uprights
- Back plate
- 2 side panels
- Upper plate
- Bottom plate
- Plinth
Features:
- Electrical insulation class: Class I
- Material: treated sheet steel
- Protective treatment: Electrophoresis treatment and heat-cured polyester epoxy powder
- Surface finish: Matt textured

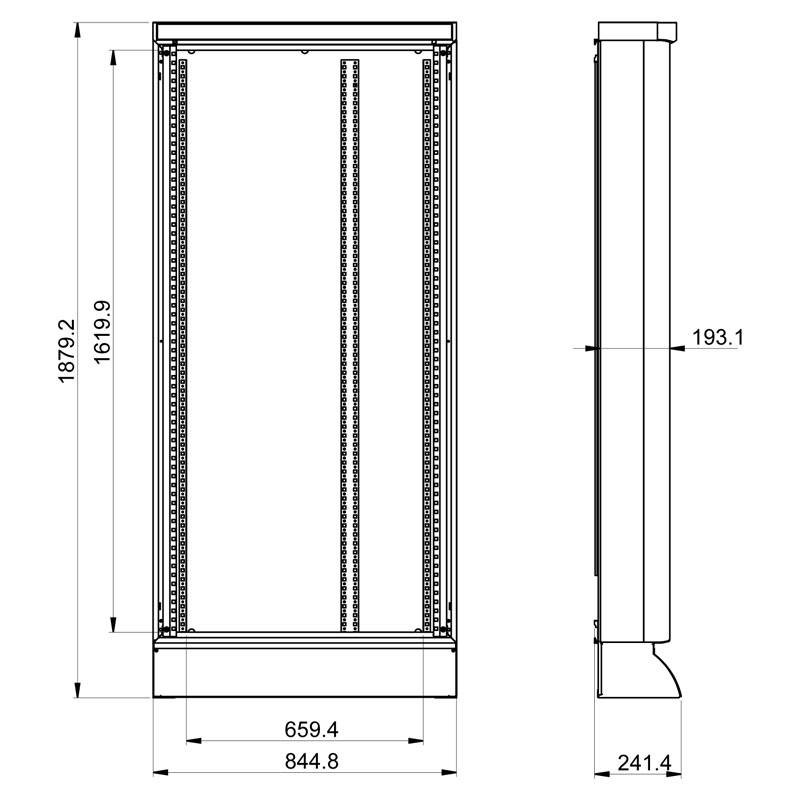

- Dimensions: height 1880 mm with plinth - width 850 mm - depth 205 mm
There are no reviews
Data sheet
- Type: Switchboards
- Modules: 33
- Degree of protection: IP30
