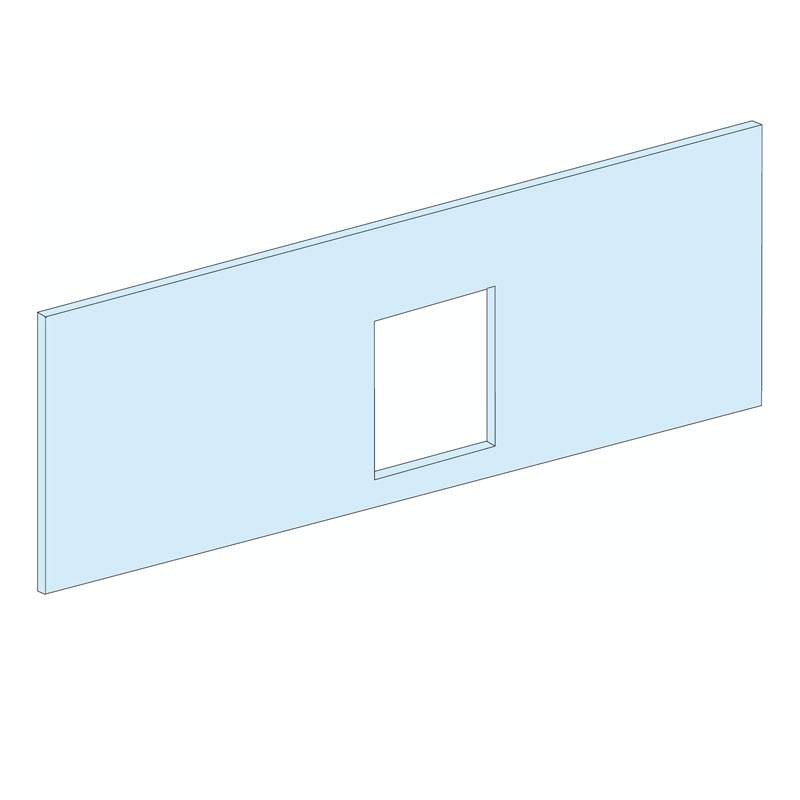

Schneider PrismaSet G front plate NSX/CVS250 W600 4M LVS03232
SNR LVS03232
3606481872869
Schneider PrismaSet G face plate with the following features:
- Type of product or component: front plate
- Range compatibility: PrismaSeT G Case - PrismaSeT Pack 250
- Operating position: Horizontal
- Number of modules: 4
- Product Certifications: ASTA
€30.96
Items Available: 7
: 2
Other technical features:
- Surface finish: Matt textured
- Protective treatment: Electrophoresis treatment and heat-cured polyester epoxy powder

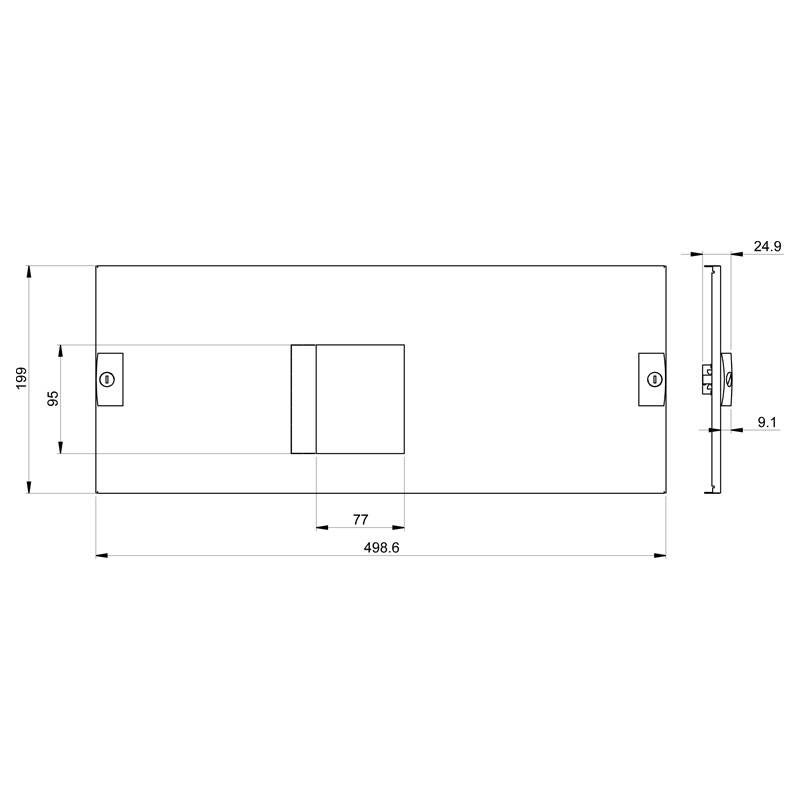

- Dimensions and weight: height 200 mm - weight: 800 grams
Device installed:
- EasyPact: CVS100...160 fixed without differential protection control: direct front rotary handle - horizontal installation
- EasyPact: CVS250 fixed without differential protection - control: direct front rotary handle
- EasyPact: CVS100...160 fixed without differential protection - control: direct front rotary handle - horizontal installation
- EasyPact: CVS250 fixed without differential protection - control: direct front rotary handle - horizontal installation
- ComPact: fixed NSX100...160 without leakage protection ground - control: lever - horizontal installation
- ComPact: fixed NSX100...160 without differential protection - control: direct front rotary handle - horizontal installation
- ComPact: fixed NSX250 without earth leakage protection - control: lever - horizontal installation
- ComPact: fixed NSX250 without differential protection - control: direct front rotary handle - horizontal installation
- Enerlin'X: fixed FDM121 - control: remote control - vertical installation
Enclosure/Cabinet Description:
- Floor cabinet width 600 mm
- Wall cabinet width 600 mm
- Packing cabinet width 600 mm
- Floor cabinet + channel width 600 + 300 mm
- Wall cabinet + channel width 600 + 300 mm
There are no reviews
Data sheet
- Type: Plates
