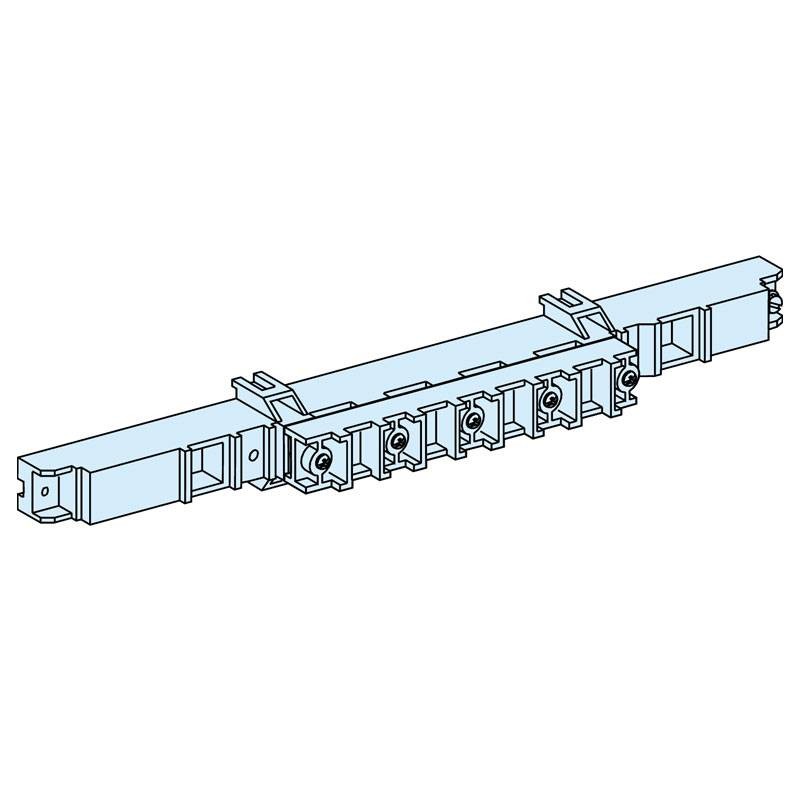

Schneider Prism G bottom bar support in copper 04191
SNR LVS04191
3606481866974
Schneider copper busbar support with the following features:
- Range compatibility: Linergy copper busbar busbar - PrismaSeT P Cassette - PrismaSeT PrismaSeT G Cassette
- Weight: 240 grams
- Reference standards: IEC 61439-2 -IEC 61439-1
€48.06
Items Available: 6
: 2
Permissible current:
- 160 A - busbar cross-section: 15 x 5 mm
- 250 A - busbar cross-section: 20 x 5 mm
- 400 A - busbar cross-section: 32 x 5 mm
Rated short-time withstand current [Icw]:
- 10 kA (1 s) at 160 A for 450 mm between support spacing
- 15 kA (1 s) at 250 A for 450 mm between support centres
- 20 kA (1 s) at 400 A for 300 mm media centre distance
- 25 kA (1 s) at 400 A for 225 mm between support centres
Installation description
- Enclosure - width 650 mm
- Freestanding enclosure - width 600 mm
- Wall box - width 600 mm
- Freestanding enclosure - width 850 mm
- Frame extension - width 600 mm
There are no reviews
Data sheet
- Type: Accessories
