Sanitrit Sanifloor Plus+ 3 shower waste pump with drain SFLOOR+3
SFA SFLOOR+3
3308815076164
Sanitrit shower waste pump model Sanifloor+ 3, designed specifically where a floor drain is required, but where space underneath is very limited, e.g., walk-in shower.

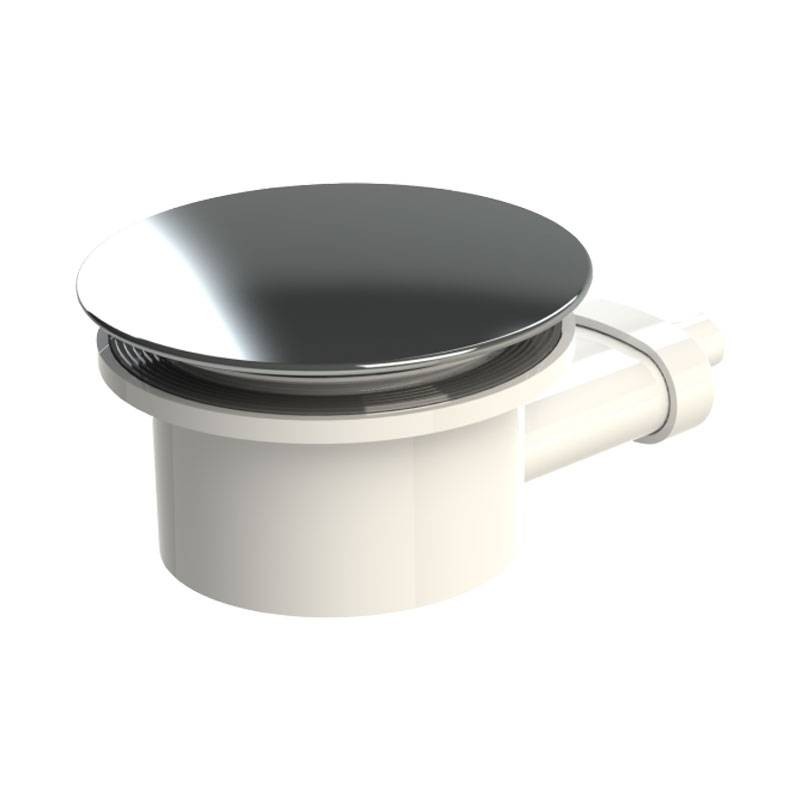

The kit includes the drain for floor-level shower tray.
Ideal system for clear water disposal, allowing installation of a floor-level shower.
€1,039.39
Items Available: 1
The SANIFLOOR PLUS SFLOOR+3 shower waste pump consists of a suction pump and a flush-mounted shower tray drain that allows for the creation of a flush-mounted shower, even as far as the drain is away.
Water entering the trap automatically sets the pump into action thanks to the detection system built into the drain. Water is drawn in and discharged to the main pipe. The pump can be installed either on the right or left side of the pan.
Sanifloor Plus + 3 can discharge up to 30 liters/minute and is compatible with large showerheads.
How does SANIFLOOR PLUS+ 3 work?:
- Water entering the siphon automatically sets the pump into action thanks to the detection system built into the drain. Lacqua is sucked in and discharged to the main pipe.
Accessories provided:

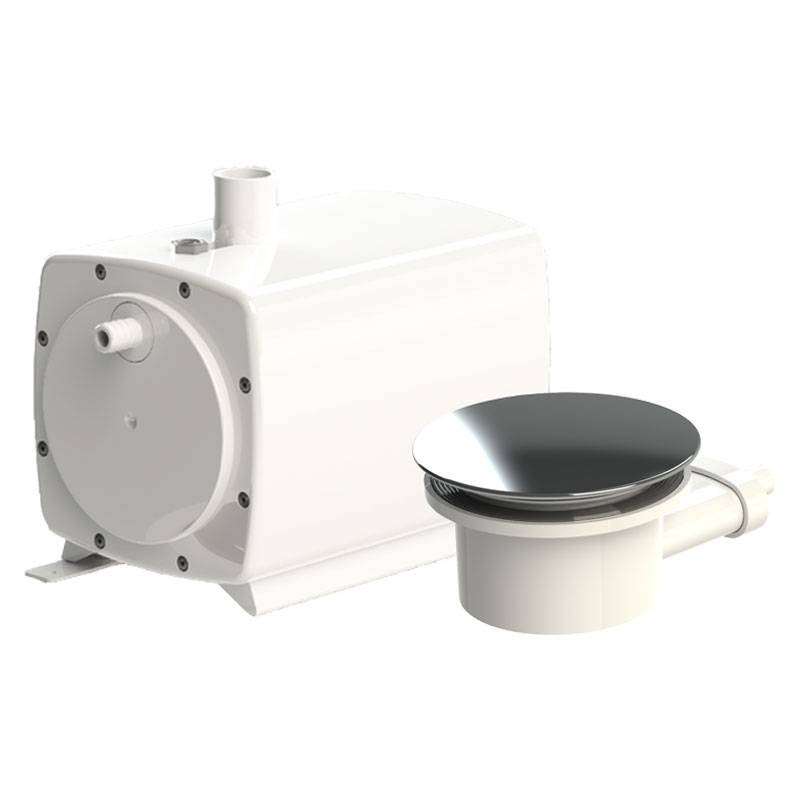

- SANIFLOOR+ pump + drain
- Clapper valve
- Connectors
Features:
- Important discharge flow rate 30 L/min bei 1 m
- Number of inlets available 1
- Diameter of inlets ext. 16 mm
- Recommended discharge diameter 32 mm
- Motor consumption 400 W
- Supply voltage 220-240V/50Hz
- Maximum current consumption 1.7 A
- Electrical class I
- Protection index IP44
- Maximum inlet water temperature 35 °C
- Horizontal discharge max 30 m
- Vertical discharge max 3 m
- Shower tray height 0 cm
- Total height 57 mm
- Materials used for the drain ABS / Edelstahl
- Drain outlet diameter 16 mm
There are no reviews
Data sheet
- Type: Waste water Lifting Units
