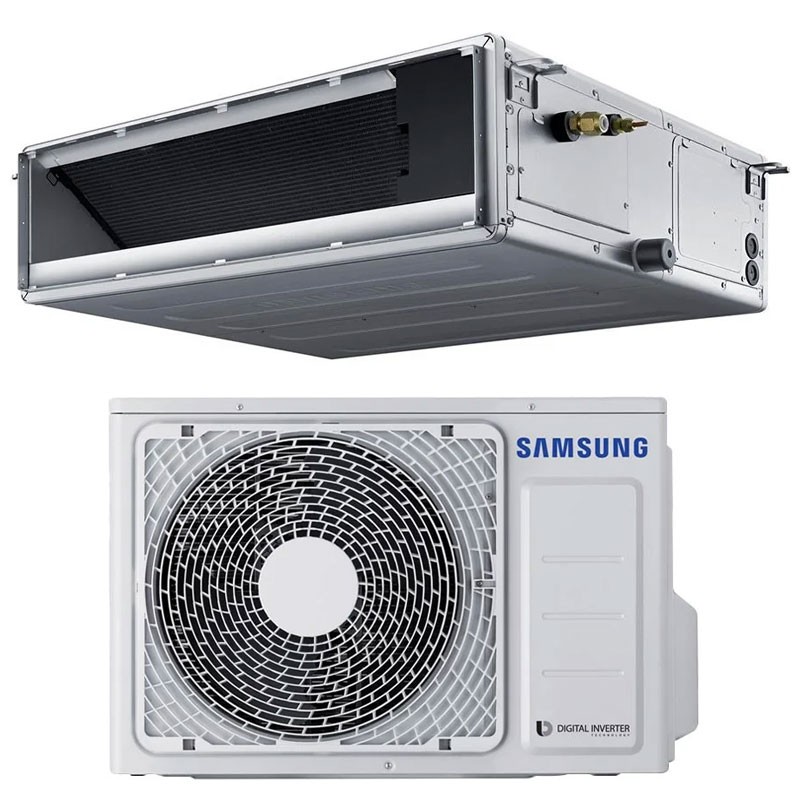

Samsung Medium Head Ducted Air Conditioner 12000BTU 3.5kW
KIT SMSCAN12
8801643606916
Samsung medium-pressure ducted air conditioner 12000 BTU (3.5kW) offers high energy efficiency, including R32 gas, compact design and flexible installation. Equipped with an inverter motor, antibacterial filter and automatic head regulation, it provides optimal air conditioning for residential and commercial environments.
The set includes:
- 1 Ducted Indoor Unit 3.5kW (AC035RNMDKG/EU)
- 1 Outdoor Unit 3.5kW (AC035RXADKG/EU)
Compatible controls to be purchased separately are as follows:
- AR-EH03E wireless remote control
- Simplified wired remote control MWR-SH11N
- MWR-WG00KN wired command.
- Nasa MIM-H04EN Wi-fi kit for remote control
For a room of approximately 35m²
The air conditioner will be delivered pre-charged with gas R32
The air conditioner is also an heat pump, therefore also suitable for heating environments in winter.
€1,490.97
Items Available: 2
: 1
Frequently bought together
Samsung single-split medium head ducted air conditioning
With its compact design and easy installation, the Samsung ducted air conditioner occupies 30 percent less volume than conventional units, making it easy to install in any setting. The splittable internal structure (separation of coil and fan) allows even easier installation, while access on three sides (top, bottom, and side) facilitates maintenance operations.
Samsung ducted fan strengths and advantages
- Scirocco Inverter Fan: Allows a higher air flow rate to be treated and provides more even distribution.
- Reduced noise and increased airflow: Thanks to the aerodynamic profi le, the Inverter fan treats 10% more air while reducing noise by 6 dB(A) compared to conventional models.
- Record-breaking efficiency: Thanks to the use of innovative technologies, Samsung ducted units deliver excellent performance with minimal energy consumption.
- Split indoor unit: The indoor unit can be separated into two parts (coil and fan to simplify installation).
- Twin Rotary BLDC compressor: The inverter-driven Twin Rotary BLDC compressor provides 75% balance and vibration reduction compared to conventional models.
- Reduced footprint and weight: 30% smaller volume and lighter weight than conventional units provide greater installation flexibility.
- Automatic head/flow rate adjustment: Using the wired control, the fan curve can be automatically set according to the pressure drop in the duct by measuring the absorption of the unit's inverter fan.
- High head: The maximum head of ductable units is up to 200 Pa (for high head models), and can be adjusted in different steps according to the duct pressure drop
- High efficiency filter: The high effi ciency fi lter (not included in 18.0 kW to 28.0 kW models) is easy to remove and clean for ease of maintenance.
Samsung Canalissate Features
"Smart Tuning" function
With this function you can adjust the airflow rate on different steps to have fast temperature set-up or higher efficiency and reduced noise.
"Out of Home" function
When you move away from rooms, you can set a holding temperature, so you can maintain comfort with significant energy savings.
"Silent" mode
During the night phase, setting this mode allows you to reduce the noise on 3 different steps up to a maximum of 7 dB(A)
Management and functions with optional Controls
Optional weekly programming
It is possible to set 2 different daily schedules for a total of 14 schedules per week by control MWR-WE13N.
Optional Remote Management MIM-H04EN
Samsung ducted units, through an optional Wi-Fi kit, can also be remotely managed via dedicated SmartThings APP, which can be downloaded for free from Smartphone or Tablet.
Optional SPi Air Purifier MSD-EAN1 device.
The efficient device is ideal for purifying the air of viruses, allergens and bacteria.
Optional Drain Pump
The condensate drain pump (optional) is installed externally to the indoor unit and is equipped with a check valve to avoid condensate backflows (a pump version that can be installed inside the unit is also available).
Samsung Ducted Unit Technical Specifications
Cooling
| Feature | Value |
|---|---|
| Capacity Std (Min~Max) | 3.50 (0.80~4.40) kW |
| Absorption Std (Min~Max) | 1.02 (0.20~1.36) kW |
| SEER (Seasonal Energy Efficiency) | 6,4 |
| Seasonal energy efficiency class | A++ |
| Theoretical heat load (Pdesignc) | 3.5 kW |
| Indicative annual energy consumption (QCE) | 194 kWh/a |
Heating
| Feature | Value |
|---|---|
| Capacity Std (Min~Max) | 4.00 (1.10~4.70) kW |
| Absorption Std (Min~Max) | 1.15 (0.24~1.80) kW |
| SCOP (Seasonal Energy Efficiency) | 4,1 |
| Seasonal energy efficiency class | A+ |
| Theoretical heat load (Pdesignh) | 2.0 kW |
| Declared capacity | 1.8 kW |
| Indicative annual energy consumption (QHE) | 630 kWh/a |

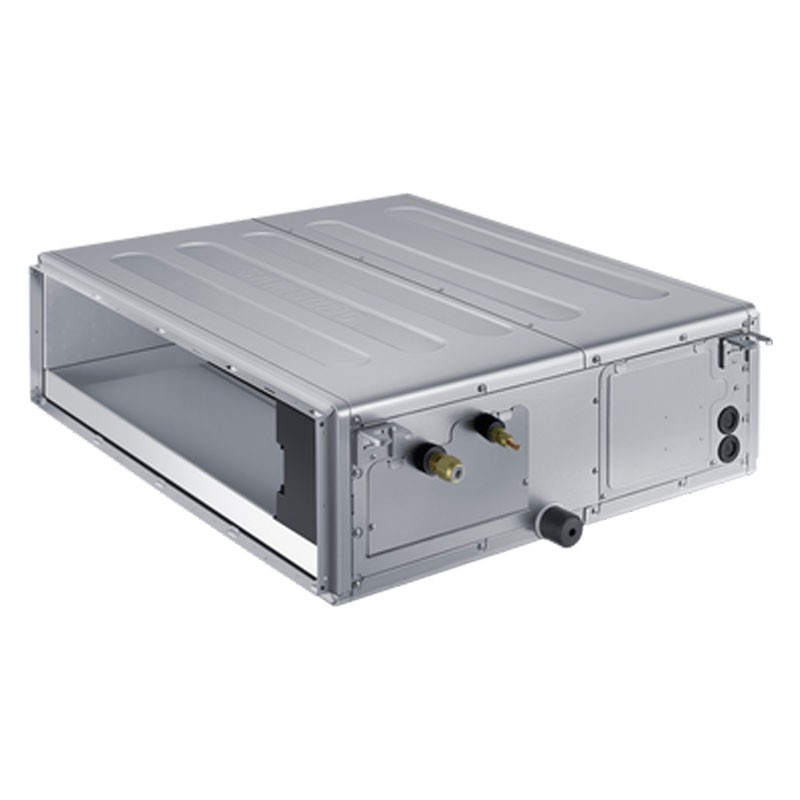

Indoor Unit
| Feature | Value |
|---|---|
| Dimensions (WxHxD) | 850x250x700 mm |
| Weight | 26.5 kg |
| Treated air (max) | 10.4 m³/min |
| Static Pressure Min-Std-Max | 0-2.5-15.0 mmH₂O |
| Sound Power Level | 52 dB(A) |

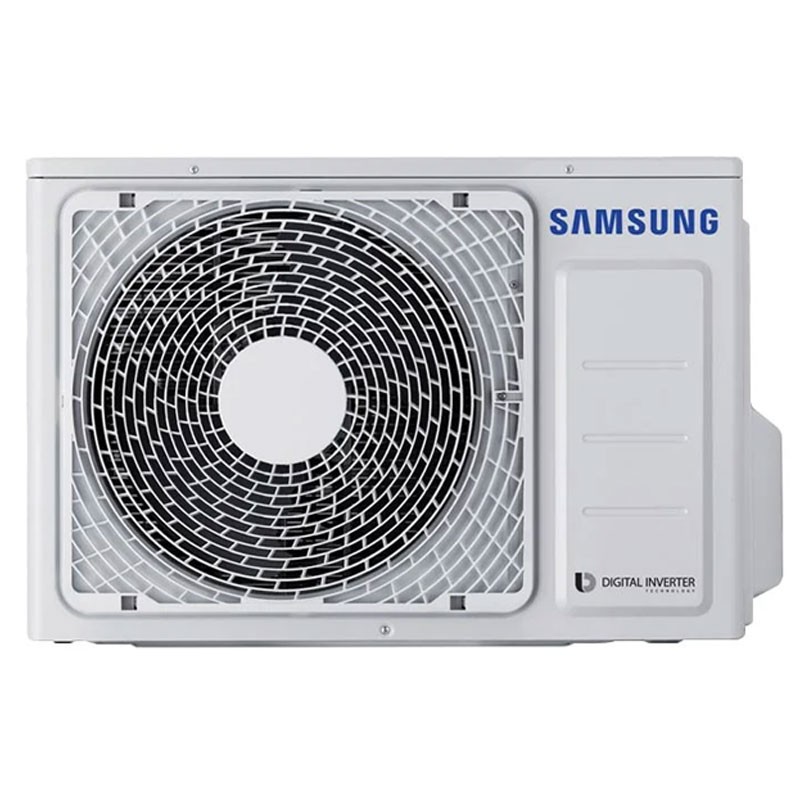

Outdoor Unit
| Feature | Value |
|---|---|
| Dimensions (WxHxD) | 790x548x285 mm |
| Weight | 32.5 kg |
| Sound Power Level | 61 dB(A) |
| Power Supply (Ø, V, Hz) | 1, 220-240, 50 |
| Operating Range (Cooling) | -15~46 °C |
| Operating range (Heating) | -20~24 °C |
| Liquid/Gas piping Ømm (inch) | 6.35 (1/4") / 9.52 (3/8") |
| Max piping length | 20 m |
| Max height difference (U. Internal/U. External) | 15 m |
| Max piping length without addition of refrigerant | 20 m |
| Additional refrigerant charge | 0 g/m |
| Refrigerant Type | R32 |
| GWP (Global Warming Potential) | 675 |
| Factory precharge | 0.90 Kg |
| Tons CO2 equivalent | 0.61 tCO₂e |
There are no reviews
Data sheet
- Air conditioners: Ducted
- Gas: R32
- Power: 12000 BTU (3,5 Kw)
- Room Size: 35m²
- Energy class: A++
