Playled Led Street Light 100W 230V 4000K Outdoor IP66 BGRD20100MEN
ERX BGRD20100MEN
8059304257605
Playled Big Road Led Street Light, luminous efficiency and extreme durability for professional urban lighting, with the following features:
-
Power: 100 Watt
-
Power supply: 230V
-
Color temperature: 4000K (natural light)
-
Luminous flux source/output: 21500 lm / 19100 lm
-
Degree of protection: IP66
-
Non-dimmable
-
Body: Painted passivated die-cast aluminum
-
Screen: thick tempered glass
€181.17
Items Available: 7
: 3

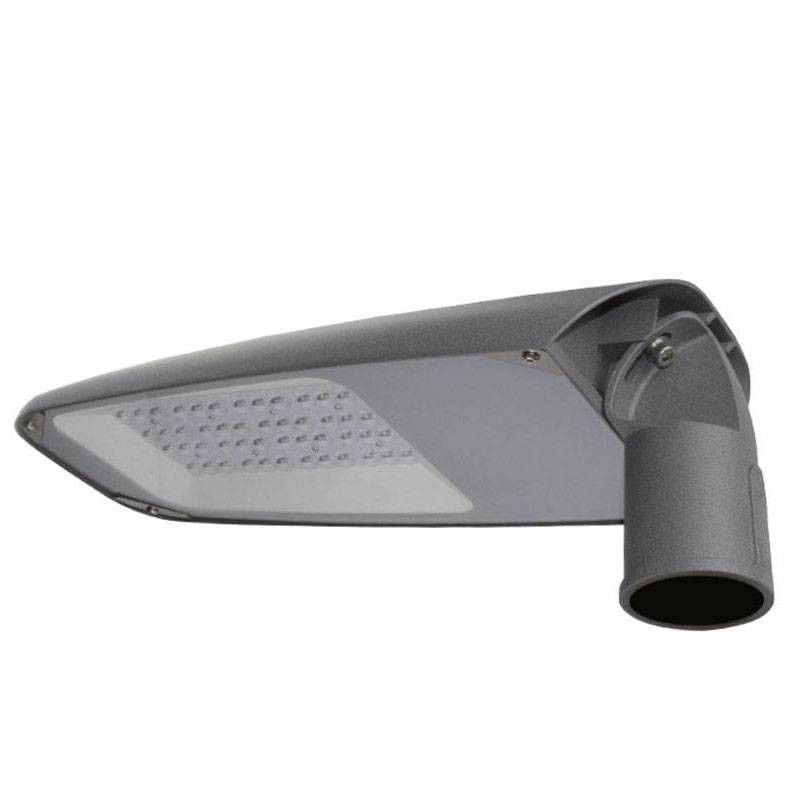

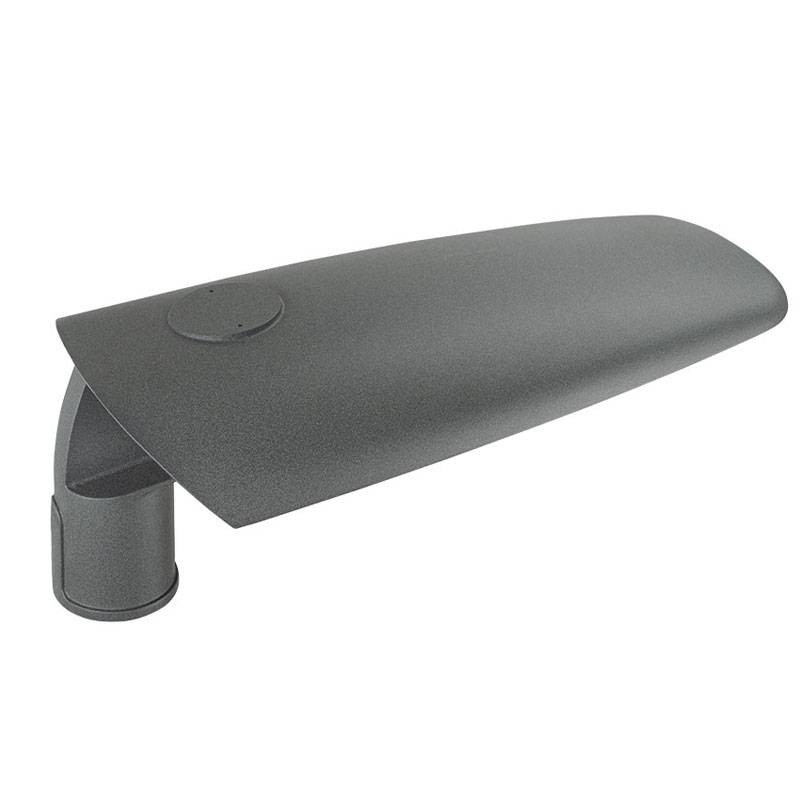

Playled Big Road road floodlight: powerful, uniform and reliable light over time
The Playled Big Road 100W LED street light fixture is designed to deliver high performance in urban settings, ensuring uniform light distribution on roads, driveways, parking lots, and public areas. Using advanced HP215 technology with a multichip optical system, this fixture ensures high efficiency with a net light output of 19,100 lumens and a source flux of 21,500 lumens.
Neutral light and maximum color rendering
The 4000K shade provides neutral light, ideal for urban settings, ensuring excellent nighttime visibility and natural color perception (color rendering index Ra 80). High color uniformity, guaranteed by an initial chromaticity SDCM <3, ensures a homogeneous lighting appearance over the entire covered area.
Designed to last: durable structure and quality materials
The die-cast aluminum body structure passivated and painted with high-strength epoxy is designed to withstand weathering and aging. The front glass is made of thick tempered glass, while the hardware is made of stainless steel, a guarantee of durability even in marine or pollution-prone environments.
The IP66 rating certifies total resistance to dust and water jets, making this fixture ideal for outdoor use even in extreme environmental conditions.
Versatile installation and adjustable orientation
Thanks to the pole head or whip pole mount, installation is simple and flexible. The ±20° swivel mount allows the direction of light to be adjusted both horizontally and vertically, improving the coverage of the illuminated area.
Consistent performance over time
The L90B10's stated life of 100,000 hours ensures that 90% luminous flux is maintained even after years of use, with minimal degradation, and a flux tolerance of only ±7%, synonymous with quality and precision construction.
Fields of Application.
Playled armature is the ideal choice for:
-
Urban and residential street lighting
-
Public and private parking lots
-
Traffic circles, intersections and tree-lined boulevards
-
Bicycle and pedestrian paths
-
Outdoor industrial areas
Technical Specifications Playled Street Light
Technical Data
| Feature | Value |
|---|---|
| Power consumption | 100W |
| Source luminous flux | 21,500 lm |
| Output luminous flux | 19,100 lm |
| Light tone | 4000K (natural light) |
| Color rendering index (CRI) | ≥ 80 |
| SDCM (chromaticity) | <3 |
| Lifespan | 100,000 h (L90B10) |
| LED number | 48 |
| Emission angle | ME - Wide street |
| Insulation class | II |
| Degree of protection | IP66 |
| Operating temperature range | -35°C / +50°C |
| Storage temperature | -35°C / +80°C |
| Body | Painted passivated die-cast aluminum |
| Screen | High-thickness tempered glass |
| Cable | 2x1.00 mm² neoprene |
| Cable gland | Nickel-plated brass |
| Mounting | Pole head or whip post (±20°) |
| Power supply | 230V - Non-dimmable |

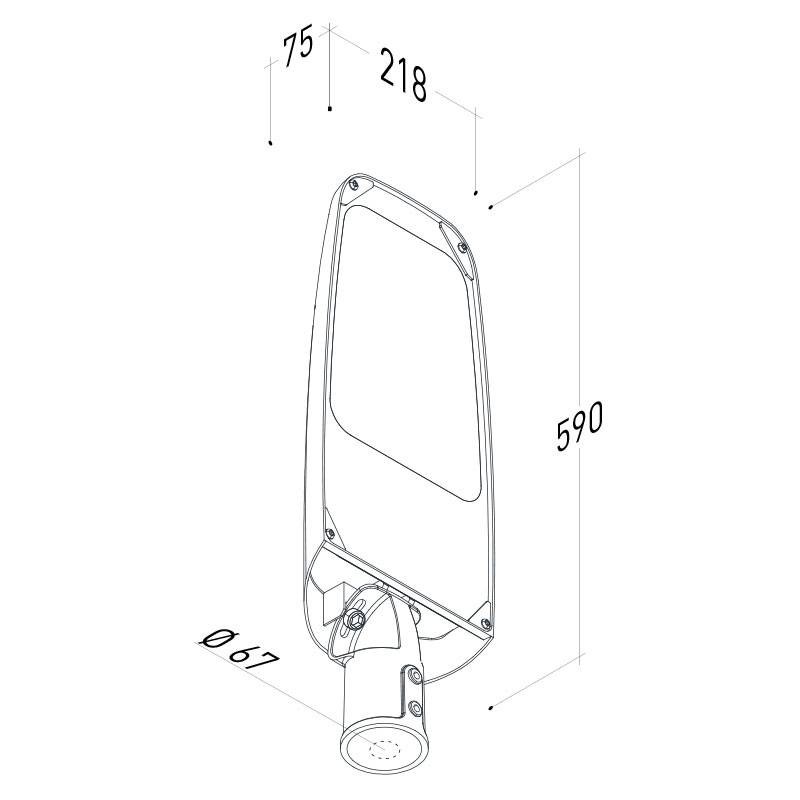

| Body dimensions | 590 x 218 x 75 mm |
There are no reviews
Data sheet
- Colour: Grey
- Type: Street lights
- Staining: Natural
- Degree of protection: IP66
- Watts: 51 to 100W
- Colour temperatures: 4000 Kelvin
