Performance Lighting Lyra+ Led Street Light 65W 4000K Grey 3115301
PRI 3115301
8018367722697

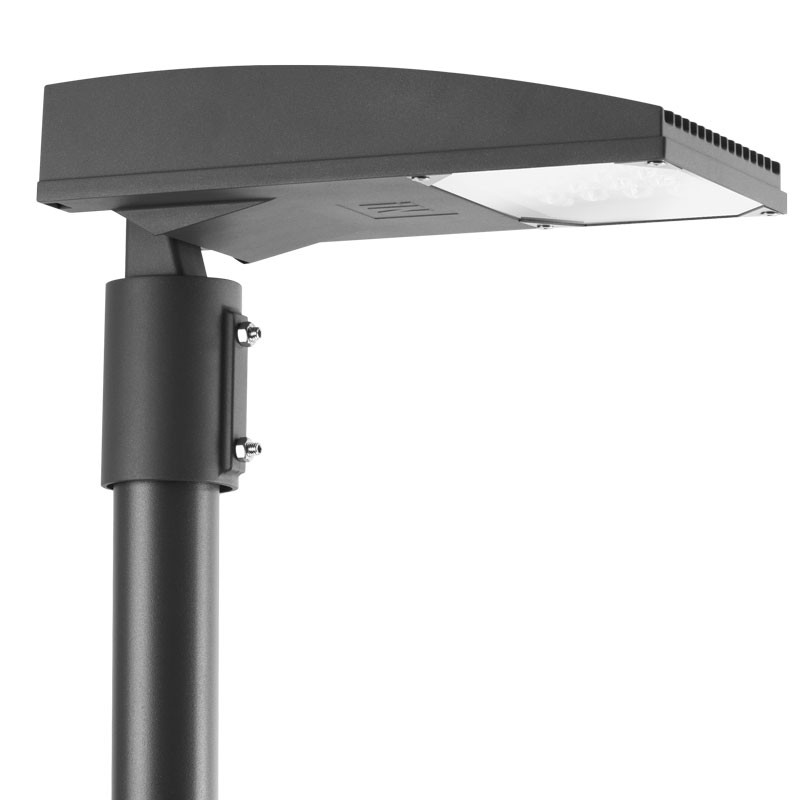

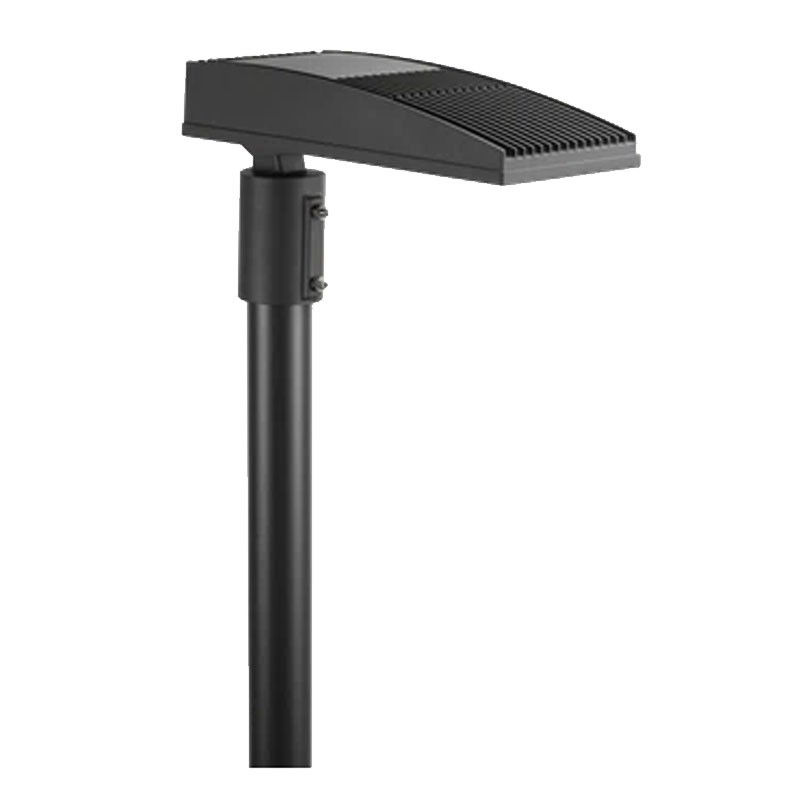

Performance Lighting Lyra+ SR/100 LED street light:
- 65W power
- Natural light 4000K
- Colour AN-96 / Anthracite metallic / Embossed
- Flux Source 9800 lumens
- Luminaire Flow 9365 lumens
- IK-J-xxIP: IK06 1J xx3
- Street optics

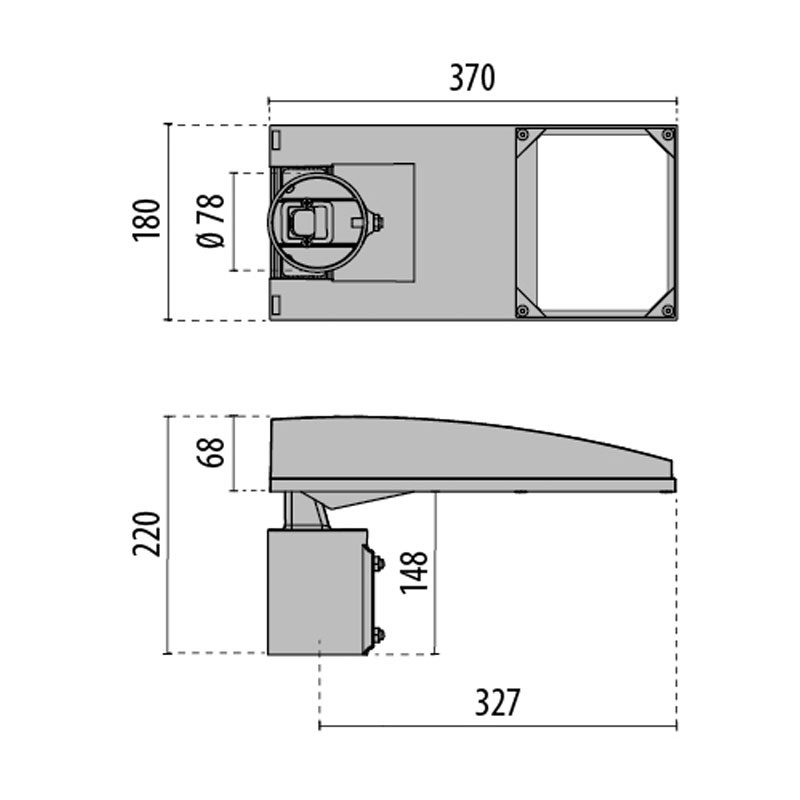

- Overall length mm: 180
- Overall height mm: 220
- Overall width mm: 370
- Degree of protection IP66
- Protection class II
- Net weight 4 kg
- ETIM Class: EC000062
- ETIM Group: EG000027
€144.79
€144.79
Items Available: 71
€144.79
Buy it within and receive it from Monday, 22 December
LED street luminaire, consisting of:
- Die-cast aluminum body and cover painted with polyester powders after chemical surface conversion treatment ISO 9227/12944 - ISO 9223 (C5)
- Pole attachment in die-cast aluminum painted with polyester powders after chemical surface conversion treatment, for Ø60 mm poles

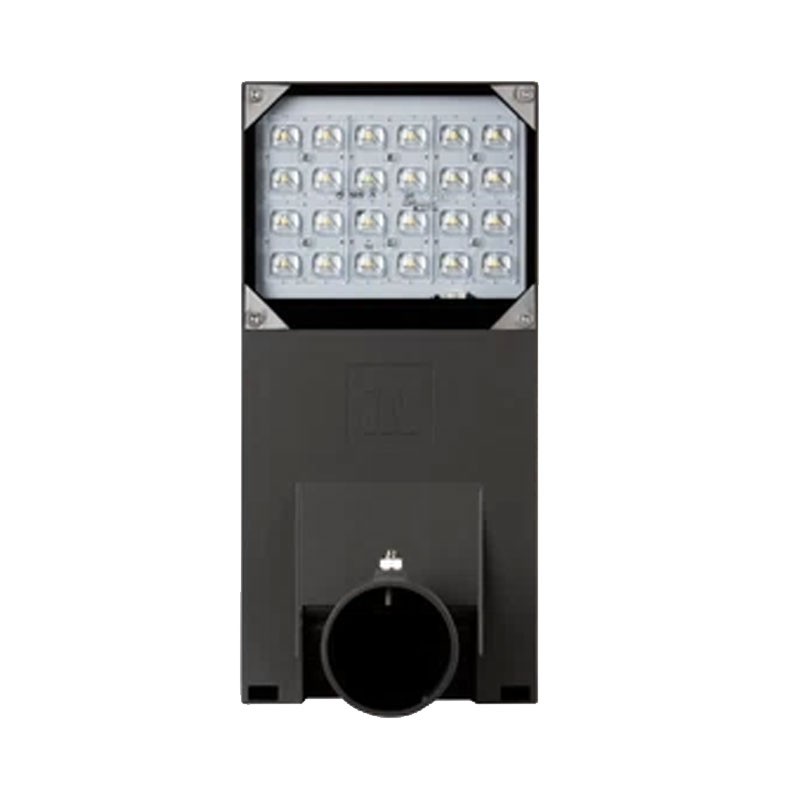

- Optical assembly consisting of technopolymer lenses with high light transmittance
- Anti-aging silicone gasket with high springback capability
- Extra-clear tempered safety flat glass diffuser
- Stainless steel glass closing claws
- Luminaire complete with ballast
- Complete with additional mains overvoltage protection device up to 10 kV (DM)
- Stainless steel closing hardware
- Luminaire complete with 1 meter of H07RN-F 2x1.5 mm² cable
- Pole attachment for Ø76 mm poles is available as an accessory
- Complies with UNI 10819, regional light pollution laws and CAM public lighting fixtures
Features:
- Rectangular shape
- Diffuser material: glass
- Lateral exposed area m²: 0.04
- Body material: aluminum
- Frontal exposed area m²: 0.02
- Upper exposed area m²: 0.07
- Power supply type: AC
- Power supply frequency 50/60 Hz
- Common Mode Surge 10 kW
- Inrush current 70A /200?s
- Supply voltage 220/240VAC
- Power Factor / COS 0.98
- Minimum ambient temperature -40 degrees
- Minimum distance to illuminated object 0.50 meters
- Max. ambient temperature 55 degrees
Data sheet
- Colour: Grey
- Type: Street lights
- Staining: Natural
- Degree of protection: IP66
- Watts: 51 to 100W
- Colour temperatures: 4000 Kelvin
