Siemens 3X160A+N/2 25KA Moulded case circuit breaker TM240 3VA11163FF460AA0
SIE 3VA11163FF460AA0
4042948820452
Siemens moulded case circuit breaker, series 3VA1, with the following characteristics:
- Rated insulation voltage 800 V
- Rated DC operating voltage 600 V
- Breaking capacity 25 kA
- Rated permanent current Iu 160A
- 4 poles
![](https://www.elettronew.com/41435-large_default/siemens-3x160an-2-25ka-moulded-case-circuit-breaker-tm240-3va11163ff460aa0.jpg)

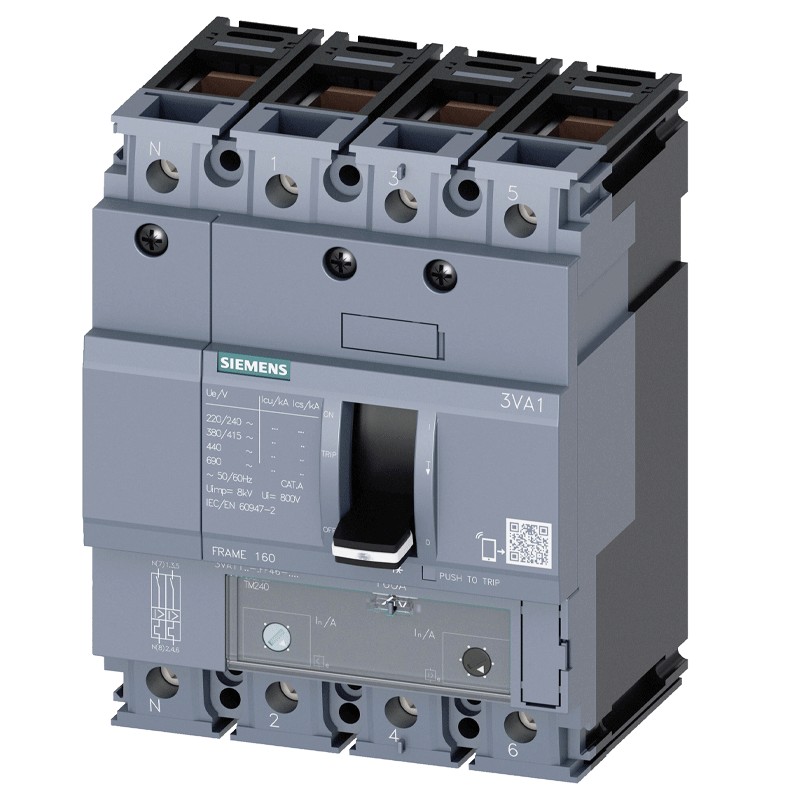

Siemens 3X160A+N/2 25KA Moulded case circuit breaker TM240 3VA11163FF460AA0
€531.70
€531.70
Tax included
Tax included
![klarna](/../img/logo-klarna-list.png)
Items Available: 69
The new 3VA moulded case circuit breakers guarantee high selectivity, extremely compact dimensions and high breaking capacities. The different dimensional sizes up to 1000 A and more than 500 accessory components allow to satisfy all possible configurations of any application.
Features:
- Siemens Series
- Rated insulation voltage 800 V
- Rated DC operating voltage 600 V
- Breaking capacity 25 kA
- Rated permanent current Iu 160A
- 4 poles
- Power loss at nominal current value with AC in warm operating state per pole 12.67W
- Max power dissipation 38 W
- Mechanical service life (switching cycles) typ. 20,000
- Height 130 mm
- Width 101.6 mm
- Depth 70 mm
- Net weight 1.2 kg
- Type of connectable conductor cross-sections of the terminals for round/multistranded conductors 1 x (1.5 - 70 mm²)
- Degree of protection front side IP40
Ambient temperature
- During operation / min -25 °C
- During operation / max. 70 °C
- During storage / min -40 °C
- During storage / max. 80 °C
Data sheet
- Type:
- Switches
- Poles:
- 4P
- Breaking capacity:
- 25KA
