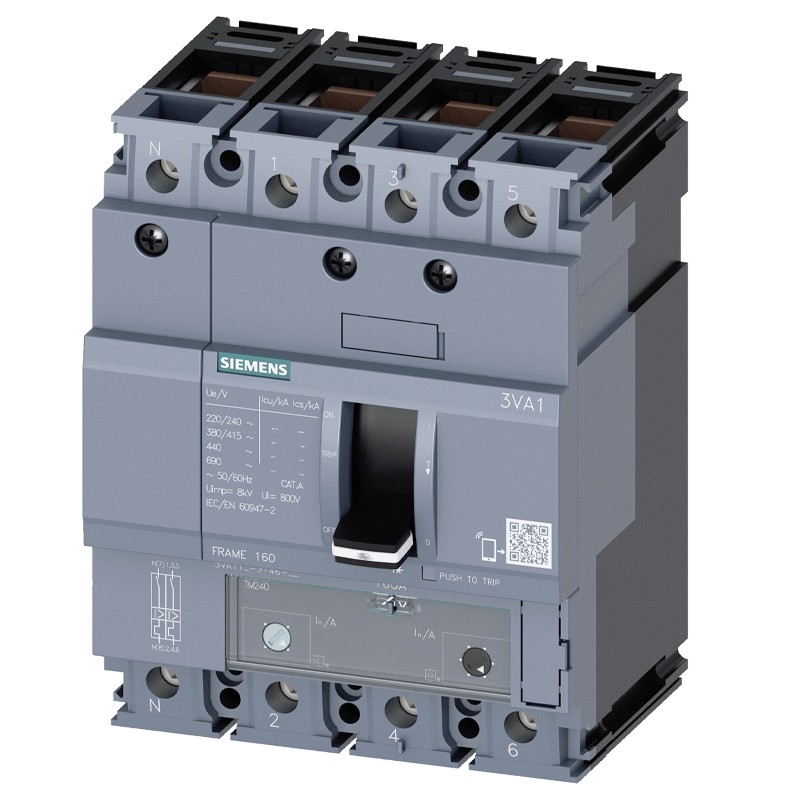

Siemens 3VA1 80A 4-pole 25KA moulded case circuit breaker 3VA11803EF460AA0


SIE 3VA11803EF460AA0 4042948821008

Siemens moulded case circuit breaker, series 3VA1, with the following characteristics:

  • Rated insulation voltage 800 V
  • Rated DC operating voltage 600 V
  • Breaking capacity 25 kA
  • Rated permanent current Iu 80A
  • 4 poles
Request info about this product

Siemens 3VA1 80A 4-pole 25KA moulded case circuit breaker 3VA11803EF460AA0

€267.64
€267.64

Siemens 3VA1 80A 4-pole 25KA moulded case circuit breaker 3VA11803EF460AA0

€267.64
Tax included
klarna Pay in installments with Klarna
qty

Siemens 3VA1 80A 4-pole 25KA moulded case circuit breaker 3VA11803EF460AA0

€267.64

Buy it within and receive it from Monday, 22 April
Two-year warranty
Secure Payment
Easy return within 14 days

The new 3VA moulded case circuit breakers guarantee high selectivity, extremely compact dimensions and high breaking capacities. The different dimensional sizes up to 1000 A and more than 500 accessory components allow to satisfy all possible configurations of any application.

Features:

  • Siemens Series
  • Rated insulation voltage 800 V
  • Rated DC operating voltage 600 V
  • Breaking capacity 25 kA
  • Rated permanent current Iu 80A
  • 4 poles
  • Power loss at nominal current value with AC in warm operating state per pole 6.4 W
  • Max. power dissipation 19.2 W
  • Mechanical service life (switching cycles) typ 20,000
  • Height 130 mm
  • Width 101.6 mm
  • Depth 70 mm
  • Net weight 1.2 kg
  • Type of connectable conductor cross-sections of the terminals for round/multistranded conductors 1 x (1.5 - 70 mm²)
  • Degree of protection front side IP40

Ambient temperature

  • During operation / min -25 °C
  • During operation / max. 70 °C
  • During storage / min -40 °C
  • During storage / max. 80 °C

Data sheet

Type:
Switches
Poles:
4P
Power:
25KA
Amps:
80A
