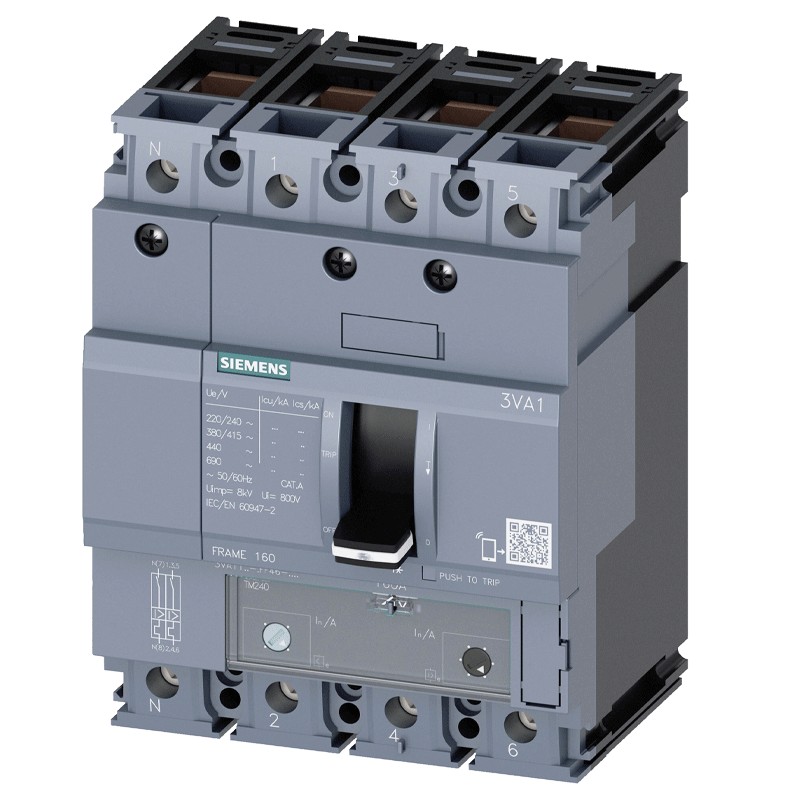

Siemens 3VA1 63A 4-pole 36KA 3VA11634GD420AA0 moulded case circuit breaker


SIE 3VA11634GD420AA0 4042948831816

Siemens moulded case circuit breaker, series 3VA1, with the following characteristics:

  • Rated insulation voltage 800 V
  • Rated DC operating voltage 600 V
  • Breaking capacity 36 kA
  • Rated permanent current Iu 63A
  • 4 poles
Request info about this product

Siemens 3VA1 63A 4-pole 36KA 3VA11634GD420AA0 moulded case circuit breaker

€224.18
€224.18

Siemens 3VA1 63A 4-pole 36KA 3VA11634GD420AA0 moulded case circuit breaker

€224.18
Tax included
klarna Pay in installments with Klarna
qty

Siemens 3VA1 63A 4-pole 36KA 3VA11634GD420AA0 moulded case circuit breaker

€224.18

Buy it within and receive it from Tuesday, 16 April
Two-year warranty
Secure Payment
Easy return within 14 days

The new 3VA moulded case circuit breakers guarantee high selectivity, extremely compact dimensions and high breaking capacities. The different dimensional sizes up to 1000 A and more than 500 accessory components allow to satisfy all possible configurations of any application.

Features:

  • Siemens Series
  • Rated insulation voltage 800 V
  • Rated DC operating voltage 600 V
  • Breaking capacity 36 kA
  • Rated permanent current Iu 63A
  • 4 poles
  • Power loss at nominal current value with AC in warm operating state per pole 5.77W
  • Max power dissipation 17.3W
  • Mechanical service life (switching cycles) typ. 20,000
  • Height 130 mm
  • Width 101.6 mm
  • Depth 70 mm
  • Net weight 1.2 kg
  • Type of conductor cross-sections that can be connected for flat busbar connection / min 12 x 1 mm
  • Type of conductor cross-sections that can be connected for flat busbar connection / max 17 x 6.5 mm
  • Degree of protection front side IP40

Ambient temperature

  • During operation / min -25 °C
  • During operation / max. 70 °C
  • During storage / min -40 °C
  • During storage / max. 80 °C

Data sheet

Type:
Switches
Poles:
4P
Power:
36KA
Amps:
63A
