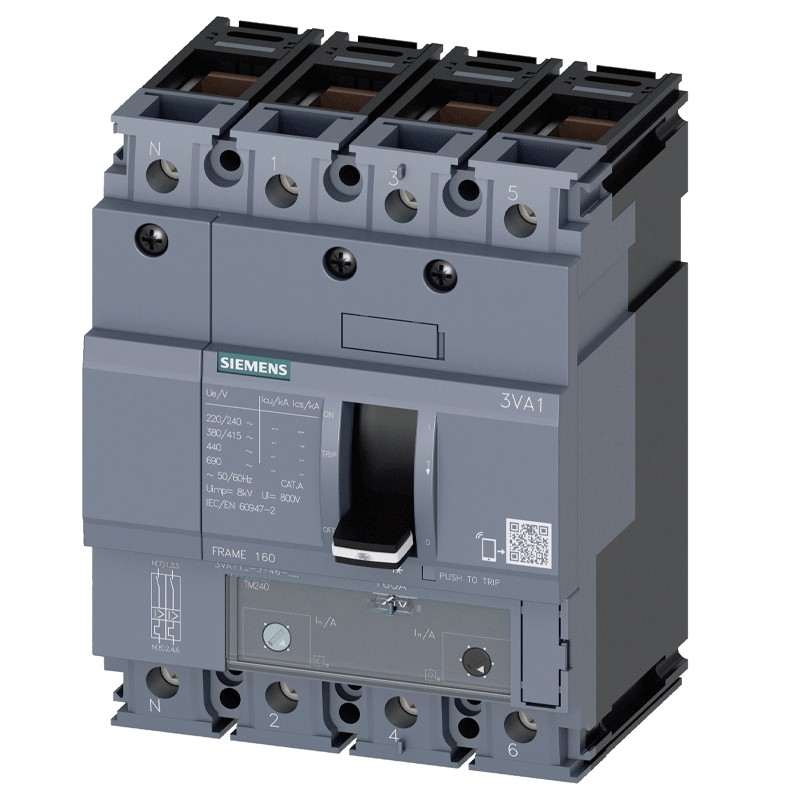

Siemens 3VA11 100A 4-pole 25K moulded case circuit breaker 3VA11103FF460AA0
SIE 3VA11103FF460AA0
4042948823248
Siemens moulded case circuit breaker, series 3VA1, with the following characteristics:
- Rated insulation voltage 800 V
- Rated DC operating voltage 600 V
- Breaking capacity 25 kA
- Rated permanent operating current 100A
- 4 poles
€296.44
Items Available: 33
: 3
Frequently bought together
The new 3VA moulded case circuit breakers guarantee high selectivity, extremely compact dimensions and high breaking capacities. The different dimensional sizes up to 1000 A and more than 500 accessory components allow to satisfy all possible configurations of any application.
Features:
- Siemens Series
- Rated insulation voltage 800 V
- Operating voltage with DC nominal value 600 V
- Power loss max 25 W
- Power dissipation at rated current value with AC in hot operating state per pole 8.33W
- Breaking capacity 25 kA
- Max. rated continuous current 160A
- Permanent current nominal value 100A
- 4 poles
- Mechanical service life (switching cycles) typ. 20.000
- Height 130 mm
- Width 101.6 mm
- Depth 70 mm
- Net weight 1.2 kg
- Type of connectable conductor cross-sections of the terminals for round/multistranded conductors 1 x (1.5 - 70 mm²)
- Degree of protection front side IP40
Ambient temperature
- During operation / min. -25 °C
- During operation / max. 70 °C
- During storage / min. -40 °C
- During storage / max. 80 °C
There are no reviews
Data sheet
- Type: Switches
- Poles: 4P
- Breaking capacity: 25KA
- Amps: 100A
