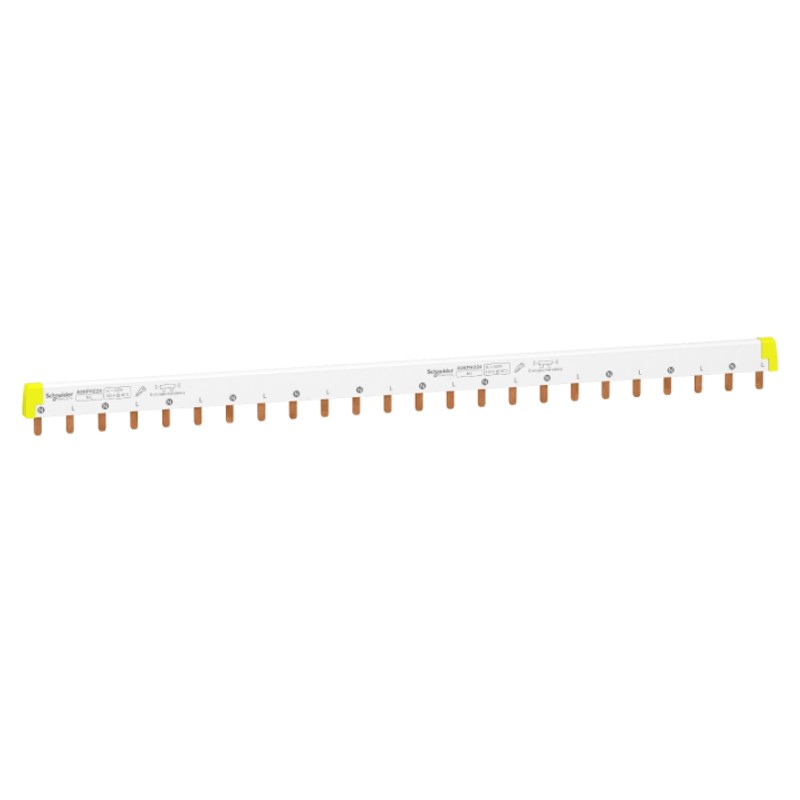

Schneider comb IC60/STI 2P 24 modules A9XPH224
SNR A9XPH224
3606480485039
Schneider Acti9-IC60/STI 2P cuttable connection comb, with the following characteristics:
-
Rated operational voltage 415 V "AC".
-
Rated insulation voltage 500 V "AC" according to IEC 61439-2
-
Rated operational current 100A at 40 °C
-
24 modules
€31.59
Items Available: 81
: 63
Features:
- Schneider series
- Rated operational current 100A at 40°C
- Rated operational voltage 415V "AC
- Rated insulation voltage 500V "AC" according to IEC 61439-2
- 24 modules
- Line description "1L + N
- Number of teeth 12N + 1L
- Pole configuration for 1 way 1 "1P + N" 1 2P
- Connection pitch 18 mm
- Type of connector: tooth
- Distance between teeth 36 mm
- Marking NL
- Insulated
- Steps 9 mm 48
- Width 430 mm
- Colour white (RAL 9003)
- Fire resistance 960 °C ( 30 s ) in accordance with IEC 60695-2-1
- Pollution degree 3 according to IEC 60947-7-1
- Degree of protection IP20 with terminals and lens covers
- Mounting mode: horizontal
Mounting position
- upstream or downstream on cage terminals
- upstream or downstream on double terminal
Ottimo sotto ogni aspetto. Celerità e prezzo
articolo commerciale buon prezzo e veloce la consegna.
Data sheet
- Type: Comb busbars
- Modules: 24
