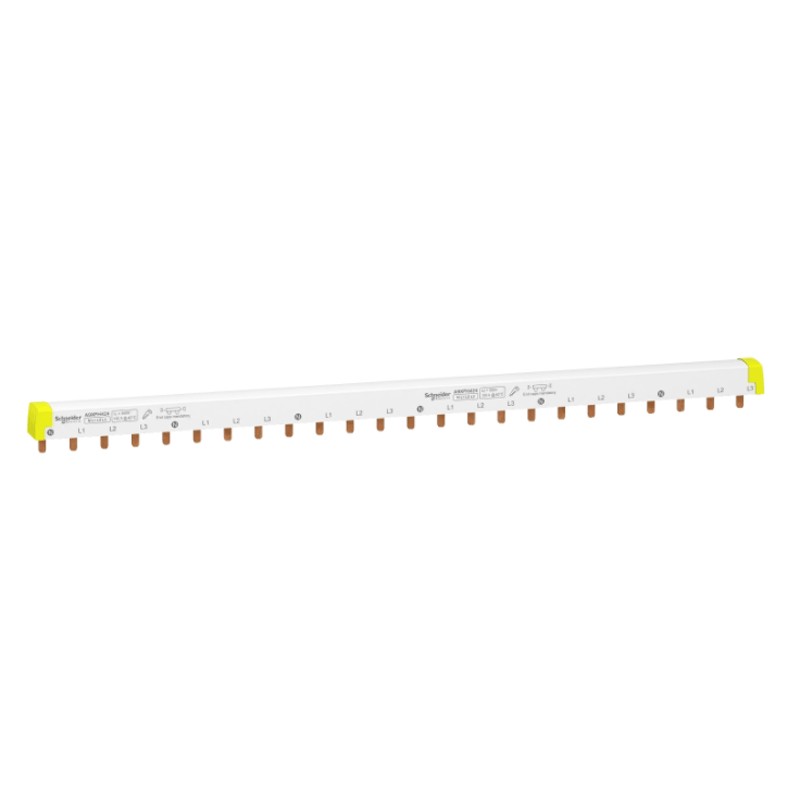

IC60/STI comb 4P 24 modules A9XPH424
SNR A9XPH424
3606480485077
Schneider Acti9-IC60/STI 4P cuttable connection comb, with the following characteristics:
- Rated operational voltage 415 V "AC".
- Rated insulation voltage 500 V "AC" according to IEC 61439-2
- Rated operational current 100A at 40 °C
- 24 modules
IC60/STI comb 4P 24 modules A9XPH424
€48.76
€48.76
Tax included
Tax included
Pay in installments with Klarna
Items Available: 128
Features:
- Schneider series
- Rated operational current 100A at 40 °C
- Rated operational voltage 415V "AC
- Rated insulation voltage 500V "AC" according to IEC 61439-2
- 24 modules
- Line description "3L + N
- Number of teeth 6N + 3L
- Pole configuration for 1 way 1 3P + N 1 4P
- Connection pitch 18 mm
- Type of connector: tooth
- Distance between teeth 72 mm
- Marking N L1 L2 L3
- Insulation Insulated
- Steps 9 mm 48
- Width 430 mm
- Colour white (RAL 9003)
- Fire resistance 960 °C ( 30 s ) in accordance with IEC 60695-2-1
- Pollution degree 3 according to IEC 60947-7-1
- Degree of protection IP20 with terminals and lens covers
- Mounting mode: horizontal
Mounting position
- upstream or downstream on cage terminals
- upstream or downstream on double terminal
Data sheet
- Type:
- Comb
- Modules:
- 24
