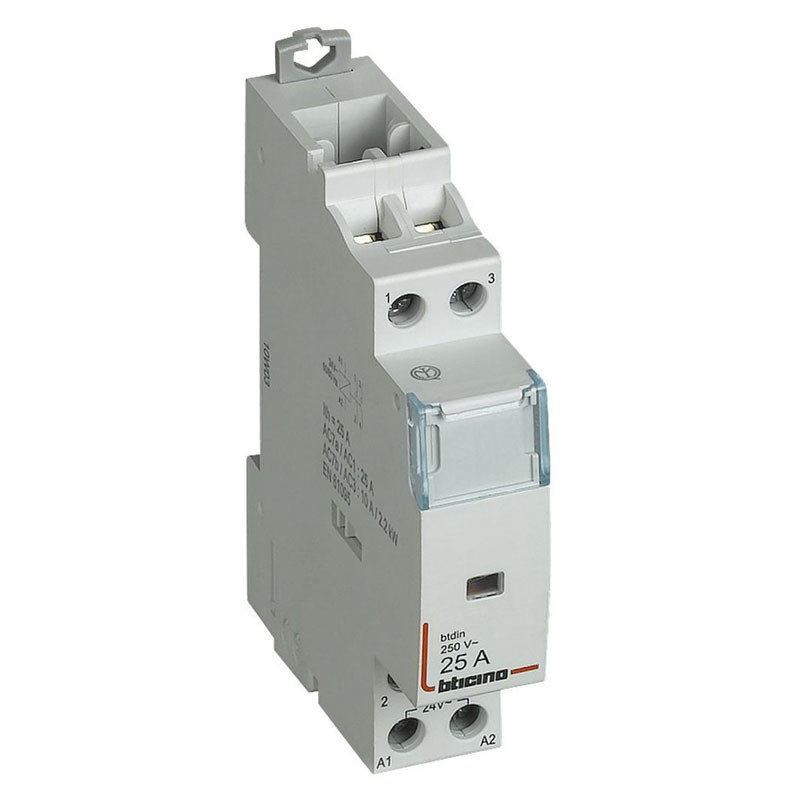

Bticino Btdin Modular Contactor 25A 230 Vac 2 NC 1 Module IP20 FT1C2N230

Bticino
Bticino
BTI FT1C2N230 8012199958149

Bticino Btdin modular contactor, reliable for automation and control electric circuits, with the following features:

  • Rated current: 25 A

  • Rated voltage: 230 Vac

  • Number of contacts: 2NC, closed, ideal for monitoring or load insertion

  • Modules: 1

  • Degree of protection: IP20 for installation in electrical panels

Do you have questions about this product or did you not find what you were looking for? Ask us!
Bticino Btdin Modular Contactor 25A 230 Vac 2 NC 1 Module IP20 FT1C2N230
€57.06
€57.06

€57.06
Tax included
Calculate shipping cost
Items Available: 12
Further availability of the manufacturer
€57.06

Buy it within and receive it from Monday, 22 December
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

Bticino Modular Contactor Double Load Capacity.

The Bticino contactor can handle resistive and inductive loads up to 25 A (classes AC-1 and AC-7a) and up to 10 A in motor applications (classes AC-3, AC-7b). Ideal for activating lights, heaters, battery chargers and small motors with a compact modular solution.

Safety through double NC contact

With two normally closed contacts (2 NC), the device provides continuous circuit status monitoring, ideal as a safety interlock or fall back signaling in automation systems.

Modular mounting on DIN rail

With small dimensions (only 1 DIN module), the contactor is perfect for compact modular switchboards. It is easily mounted on 35 mm DIN rail, simplifying professional installation.

Easy installation and safe wiring

Screw terminals accept conductors up to 4 sq. mm, enabling robust and reliable wiring. The shallow depth (67 mm) allows use in tight spaces, maintaining order and accessibility in the switchboard.

Recommended applications.

  • Home automation: automated control of roller shutters, lights, heating

  • Driving inductive loads: motors, air conditioners, pumps up to 10 A

  • Safety systems: fault signaling or circuit disconnection via NC contacts

  • Modular distribution boards: easy integration with other Btdin devices

  • Light industrial use: management of electrical loads and block signals in automated systems

Technical Specifications Bticino Contactor

Rated voltage Vn 230 Vac
Rated current In 25 A (AC-1/7a); 10 A (AC-3/7b motor)
Contacts 2 NC (normally closed)
DIN modules 1 module (17.8 mm)
Dimensions (H×W×D) 83 × 17.8 × 67 mm
Degree of protection IP20
Maximum cable cross-section Up to 4 mm²
Mounting 35 mm DIN rail
Standards CE, IMQ (national certification)
