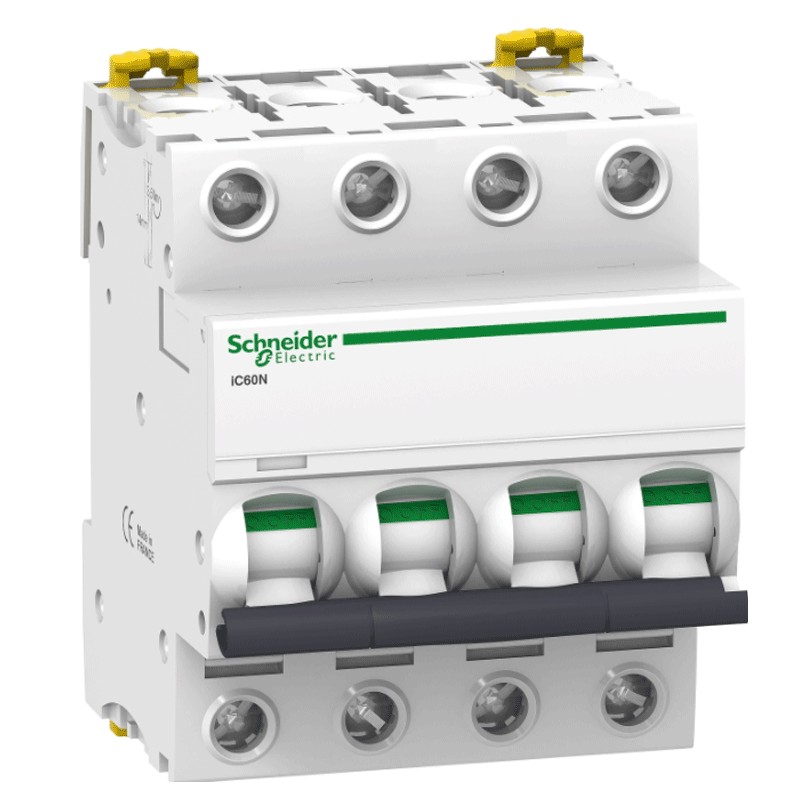

Circuit breaker-Schneider 4P 10A 6 KA C 4 modules A9F79410
SNR A9F79410
3606480093401
Circuit breaker-Schneider 4P 10A 6 KA C 4 modules A9F79410
€118.06
Items Available: 35
: 9
Frequently bought together
Device application: Distribution Range: Acti 9 Type of product or component: Switch, modular product Name: IC60 short Name: IC60N Number of poles: 4P Number of poles protected: 4 rated Current [In]: 10 A network Type: AC, DC, Technology trip unit: thermal magnetic Code of the curve: C rated breaking capacity: 10 kA Icu conforming to EN 60947-2 - 180...250 V DC 10 kA Icu conforming to EN 60947-2 - 380...415 V AC 50/60 Hz, 10 kA Icu conforming to IEC 60947-2 - 180...250 V DC 10 kA Icu conforming to IEC 60947-2 - 380...415 V AC 50/60 Hz 20 kA Icu conforming to EN 60947-2 - 220...240 V AC 50/60 Hz 20 kA Icu conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz 36 kA Icu conforming to EN 60947-2 - 12...133 V AC 50/60 Hz 36 kA Icu conforming to IEC 60947-2 - 12...133 V AC 50/60 Hz, 6 kA Icu conforming to EN 60947-2 - 440 V AC 50/60 Hz 6 kA Icu conforming to IEC 60947-2 - 440 V AC 50/60 Hz 6000 A Icn conforming to EN 60898-1 - 400 V AC 50/60 Hz 6000 A Icn conforming to IEC 60898-1 - 400 V AC 50/60 Hz utilization Category: Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2 Attitude to slicing: Yes conforming to EN 60898-1, Yes conforming to EN 60947-2, You conform to IEC 60898-1, It conforms to IEC 60947-2 reference Standards: EN 60898-1, EN 60947-2, IEC 60898-1, IEC 60947-2
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 4
- Poles: 4P
- Curve: C
- Breaking capacity: 6KA
- Amps: 10A
- Circuit Protections: Circuit breakers
