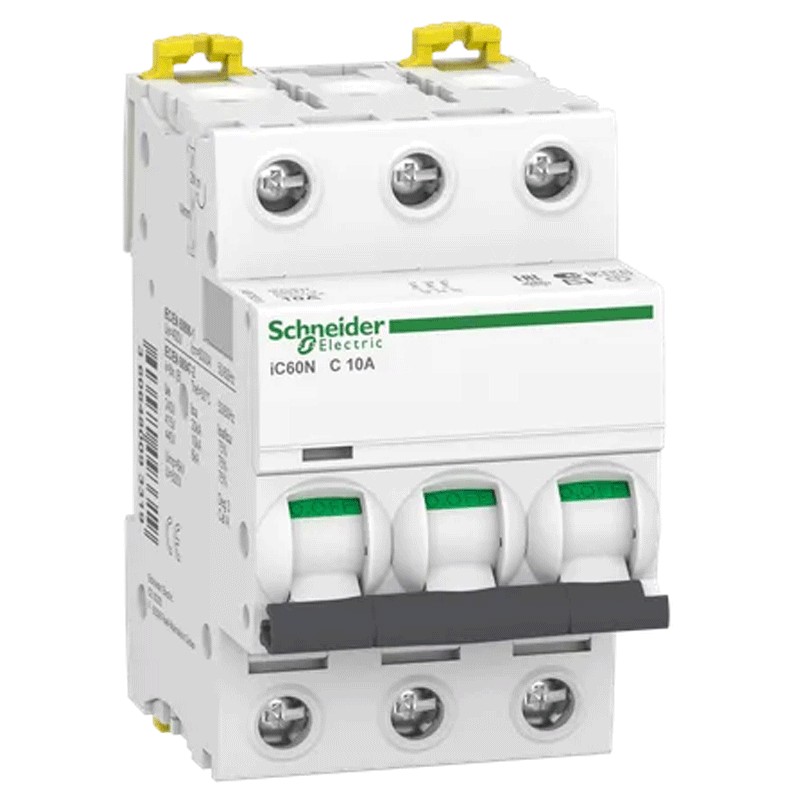

Circuit breaker 3P 10A 6 KA C 3 modules A9F79310
SNR A9F79310
3606480093319
Circuit breaker 3P 10A 6 KA C 3 modules A9F79310
€98.18
Items Available: 9
: 2
Frequently bought together
Product features Function and use Suitable for protection against overloads and short-circuits in distribution systems in all areas: from the domestic to the industrial. Curve C Features Poles: 3P Rated current: 0.5 to 63A; power outage: according to IEC EN 60898: 6000 A, according to CEI EN 60947-2: 10 kA voltage (Eu): 220/240 V AC between phase and neutral 380/415 V AC between the phases; intervention curves: the trip units magnetic speakers between 5 and 10; VisiSafe: ensures isolation of the downstream circuit. The ndicatore green slicer is interlocked mechanically with the contacts of the circuit breaker. Voltage impulse: Uimp = 6 kV, isolation voltage: 500 V, the degree of pollution level 3; insulation class II on the front; closing speed: the closing speed of the contacts is independent from the action of the operator; reporting VisiTrip intervention on a failure through a mechanical display of red color on the front side of the switch; shutter insulating protection about the terminals; electrical life: 10,000 cycles; mechanical life: 20,000 cycles; connection via screw-cage clamps: up 25A rigid cables up to 25 mm2 and flexible cable up to 16 mm2, from 25 to 63 rigid cables up to 35 mm2 and flexible cable up to 25 mm2; associated with blocks QuickVigi iC60 and Vigi iC60; Main features Breaking capacity (kA) 6 Nominal operating current (A) 10 Number of poles 3 P Trip curve C
There are no reviews
Data sheet
- Voltage: 400VAC
- Modules: 3
- Poles: 3P
- Curve: C
- Breaking capacity: 6KA
- Amps: 10A
- Circuit Protections: Circuit breakers
