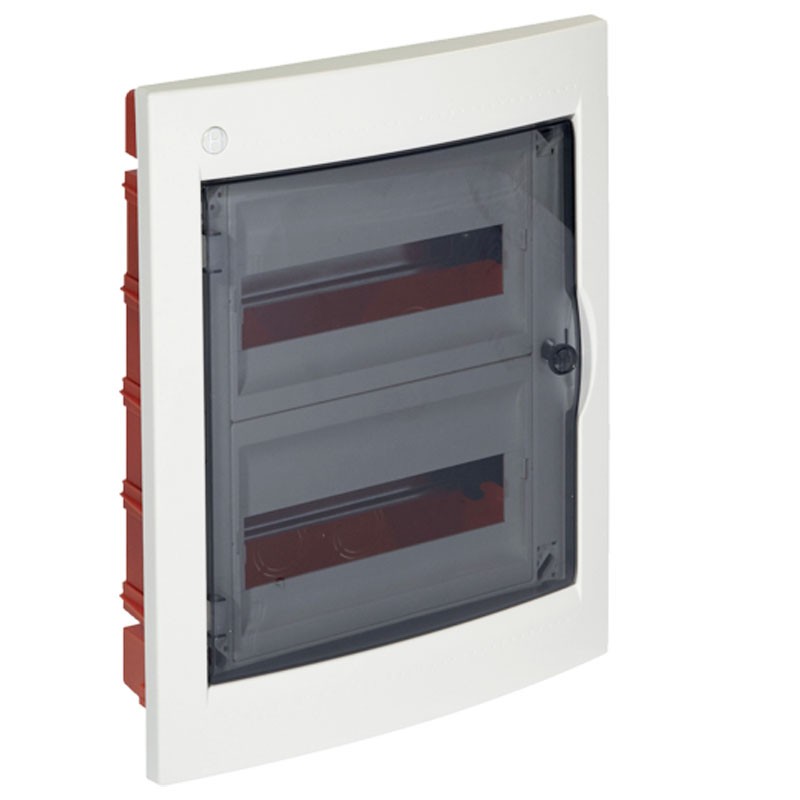

Bocchiotti Pablo recessed switchboard with smoked door 24M IP40 B04104
IBO B04104
8015892041040
Bocchiotti Pablo recessed switchboard with smoked door. Ideal for civil and tertiary installations, shock and UV resistant, with the following features:
-
Capacity: 24 DIN modules (2 rows of 12)
-
Degree of protection: IP40
-
Installation: Recessed with masonry box
-
Color: White with semi-transparent smoked door
-
Rated current: 125 A
-
Operating temperature: -25/+60 degrees
€48.31
Items Available: 49
: 32
Recessed electrical switchboard for tidy and protected installations
Bocchiotti's Pablo line switchboard is a compact and professional solution for electrical distribution in residential, commercial and tertiary environments. Designed for recessed installation, it can accommodate up to 24 DIN modules distributed in two rows of 12, with universal DIN rail compatible with fixtures of any brand.
Functional design with IP40 protection
The UV-resistant white plastic frame is complemented by a semi-transparent smoked door that provides immediate access and protection from solids greater than 1 mm (IP40). The panel features an IK09 impact resistance rating and Class II electrical insulation, ensuring safety even in the most demanding environments.
Safety, compatibility and regulatory compliance
The switchboard complies with EN 60670-24 and has glow wire resistance up to 960°C according to EN 60695-2-11, ensuring high reliability in the event of overheating. It contains no halogens and complies with the European WEEE directive, making it safe and sustainable.
Technical Characteristics Bocchiotti Switchboard
| Mounting | Flush-mounted |
|---|---|
| Number of DIN modules | 24 (2 rows of 12) |
| Rated current | 125 A |
| Degree of protection | IP40 |
| Impact resistance rating | IK09 |
| Material | Plastic, color white RAL 9016 |
| Door | Smoked semitransparent, without lock |
| Insulation class | II |
| Operating temperature | -25°C TO +60°C |
| Glow wire resistance | 960°C |
| Additional properties | Halogen-free, UV-resistant |
| Reference Standards | EN 60670-24 |

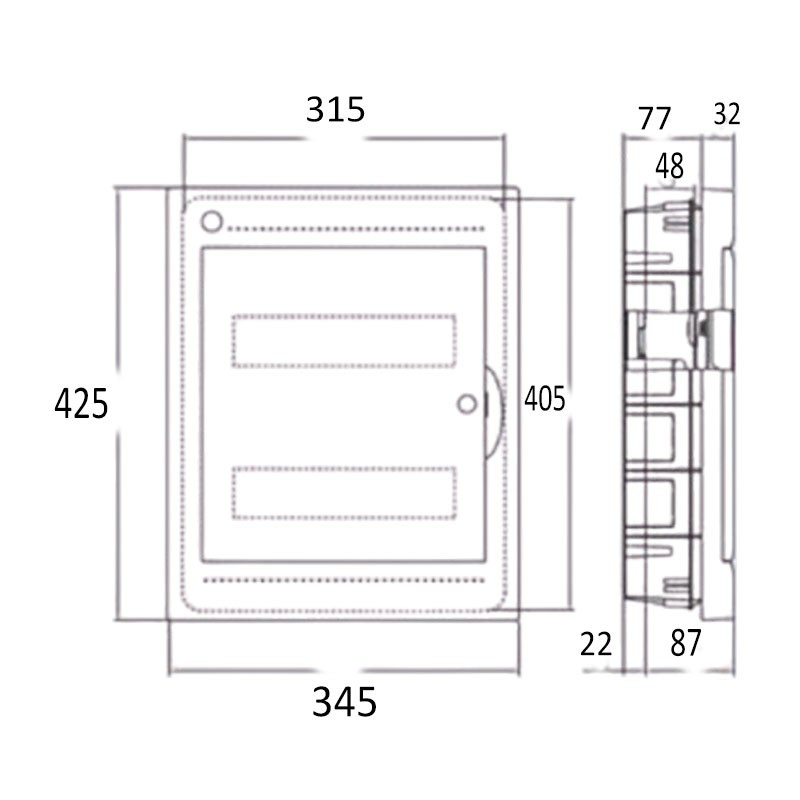

| Dimensions | 425 x 345 x 109 mm |
| Recessed depth | 77 mm |
economici, professionali, rapidissimi. perfetti!
Il centralino si presenta di ottima fattura, molto resistente. Comoda la chiusura magnetica.
Data sheet
- Type: Recessed
- Modules: 24
- Degree of protection: IP40
- Model: With door
