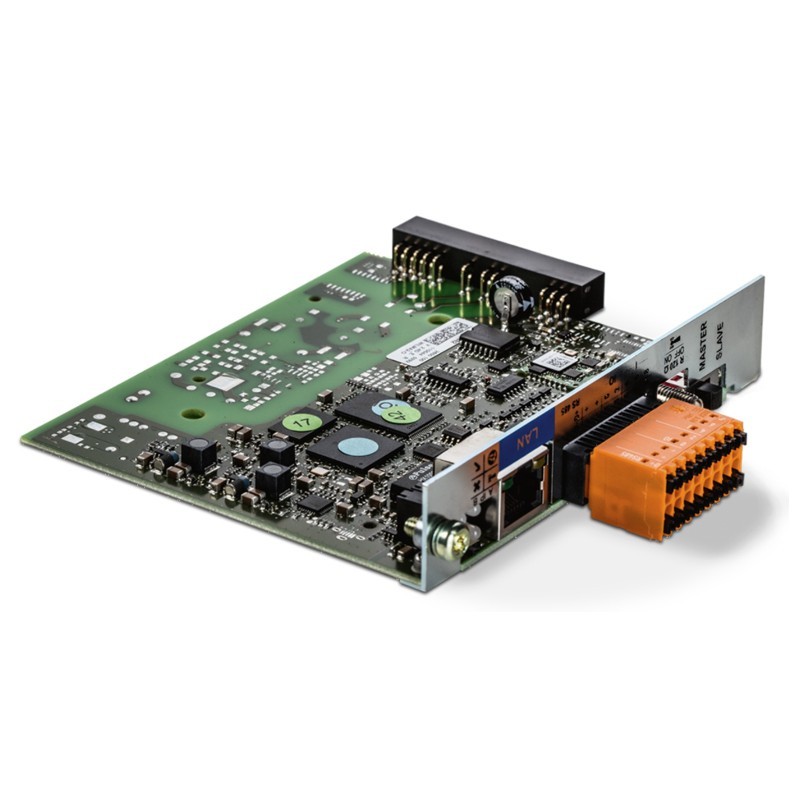

Fronius DATAMANAGER 2.0 WLAN communication unit for Inverter 4,240,038.Z
FRO 4.240.038.Z
9007947156259
Fronius DATAMANAGER 2.0 WLAN communication unit for photovoltaic inverters, Using the Internet connection via LAN or WLAN, Fronius Datamanager sends the values of the photovoltaic system directly to the Fronius Solar.web online portal, which provides an overview of the system's operation at any time.
€276.66
Items Available: 1
Fronius Datamanager therefore allows you to connect inverters directly to the Internet via WLAN. The dedicated website on the integrated Fronius Datamanager web server also enables optimal monitoring of the system and the configuration of Fronius Datamanager. The integrated SunSpec Modbus RTU, SunSpec Modbus TCP and Fronius Solar API (JSON, for current values) allow you to integrate Fronius inverters easily and in parallel with Fronius Solar.web into third-party systems.
Suitable for the following Inverter models: GALVO,PRIMO,SYMO,ECO
- Memory capacity Max. 4,096 days
- Supply voltage Power supply 12 V DC from inverter
- Power consumption < 2.0 w 2.0=‘’ w=‘’>
- Dimensions (height) 132 mm
- Dimensions (width) 103 mm
- Dimensions (length) 22 mm
- Operating temperature range -20°C - +65°C.
INTERFACES:
- Ethernet (RJ45 connector) LAN, 10/100 MBit / Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)
- RS422 (RJ45 connector) Fronius Solar.Net IN
- WLAN Radio standard 802.11 b/g/n / Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON)
- 6 digital inputs Connection to the receiver of cyclic control signals
- 4 digital inputs/outputs Connection to cyclic control signal receiver, load management
- RS485 Modbus RTU SunSpec or connection to the meter.
Come da descrizione, tutto ok, sia prodotto che venditore.
Muy bien y bastante facil de instalar. Se tarda mas en configurar que en instalarlo. Me lo enviaron a españa y todo bien
Perfect service. Correctly informed by e-mail when back in stock. Fast delivery and correct package. Correct price compared to other sites. Product works perfect! I already recommanded your site to a friend, to bad already sold-out again.
Il dispositivo è conforme a quanto indicato e all'interno dell'imballo originale con sigillo del produttire
Installato con facilità
Un pò meno facile la configurazione che comunque è andata a buon fine
Prezzo molto buono.
Sito molto valido nessun problema
Data sheet
- Type: Accessories
