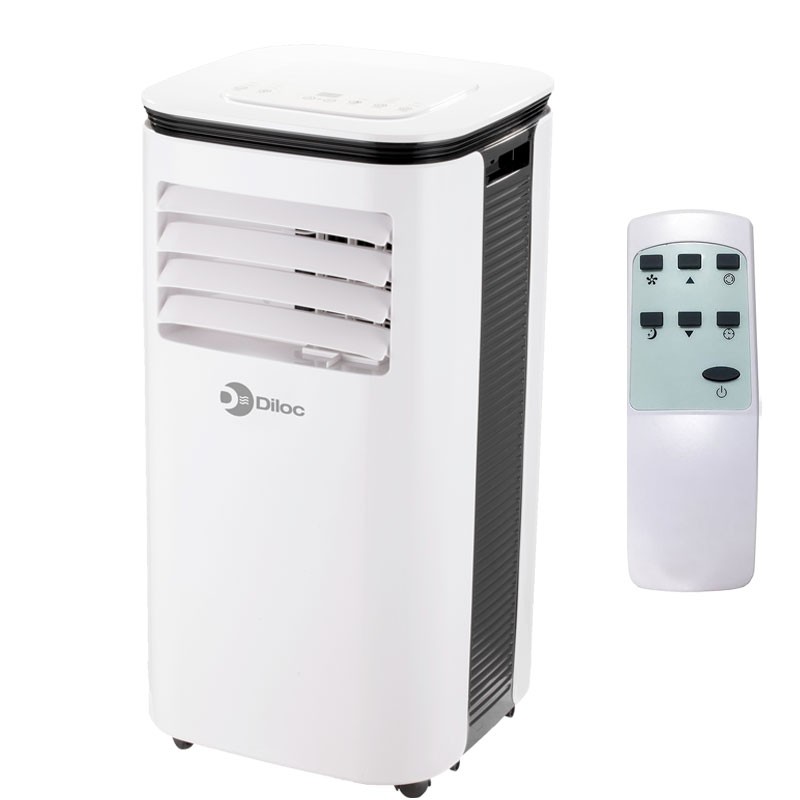

Naicon Diloc Compact Portable air conditioner 3.5kW 12000BTU hot - cold
Naicon Diloc Compact 3.5 kW (12 000 BTU) portable air conditioner, hot/cold, dehumidifies and ventilates, with continuous exhaust, timer, remote control-immediate comfort anywhere, no outdoor unit.
- Cooling/heating 3.5 kW (12 000 BTU), with dehumidification and ventilation
- No outdoor unit: easy to move and compact for offices, stores or second homes
- Continuous condensate drain + top air exhaust kit (145mm) for easy installation

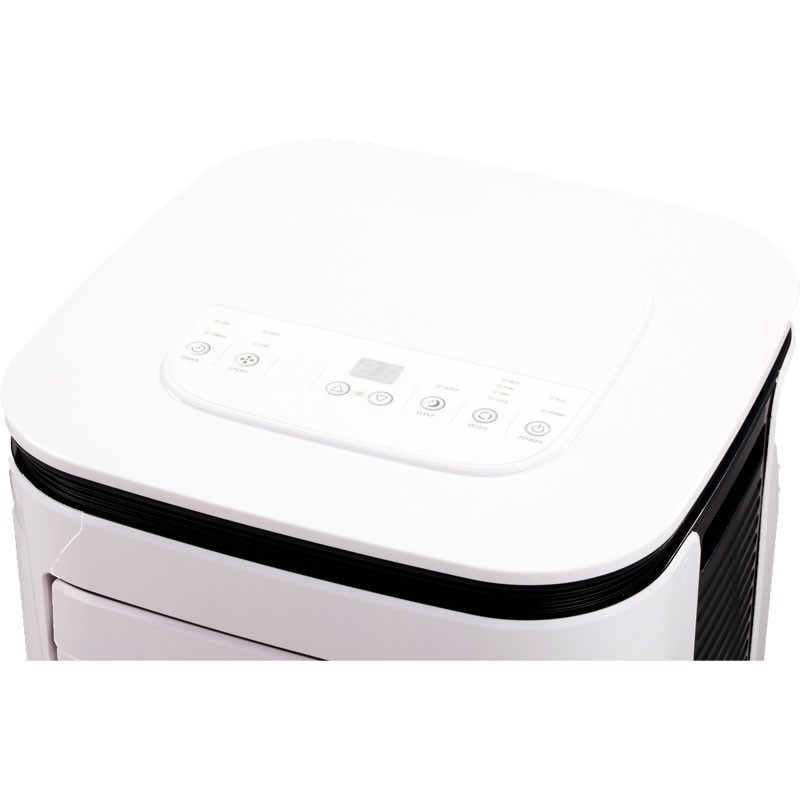

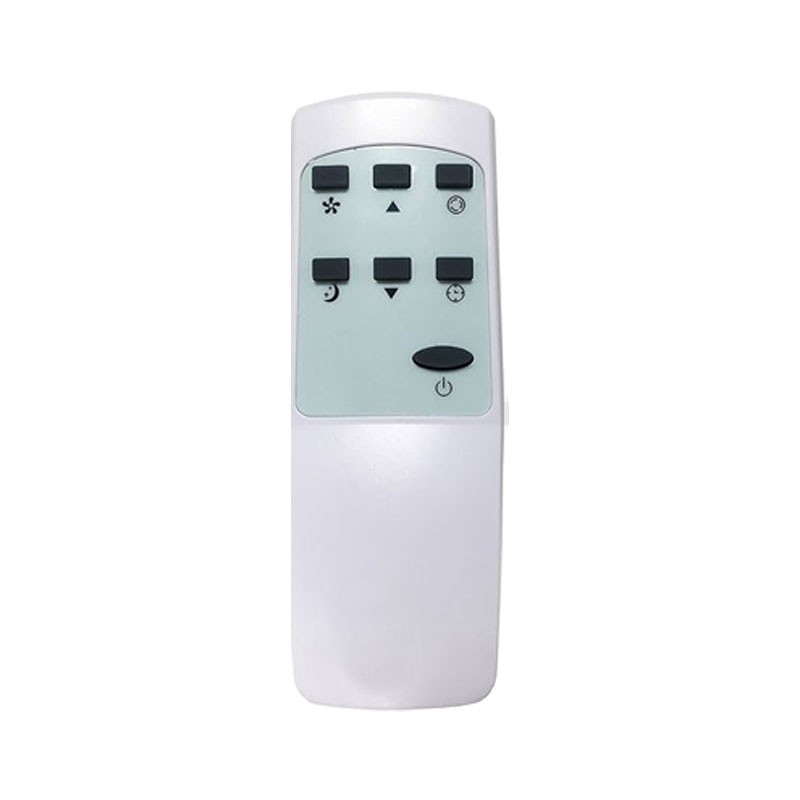

- LED display and remote control, programmable timer, sleep mode
- Multiple protections: automatic compressor restart after 3 min, thermostat and defrosting
- Operation in environments from 7°C to 35°C, with comfort even at low temperatures
Air conditioners of the same series
Naicon Diloc Compact: Compact design & mobility
The Compact series is designed for those looking for a transportable air conditioner without an outdoor unit. Slim and handy design: ideal in small or temporary spaces.
Multiple modes for every need
Supports cooling, heating, dehumidification and ventilation. You can select two fan speeds, Sleep mode and set timers up to 24 h-all from the LED panel or remote control.
Simple and clean installation
Air exhaust kit is placed on top for smooth flow and easy installation. Continuous condensate drain eliminates need for water tanks.
Safety & Reliability
Multiple protection with automatic compressor-off after short circuit or defrost. The system also protects against over-temperature, ensuring automatic restart in as little as 3 minutes.
Naicon Compact series technical specifications
| Feature | Detail |
|---|---|
| Power supply | 220-240V / 1P / 50Hz |
| Capacity (Btu/kW) | 12000 / 3,5 |
| Power consumption | 1010 W |
| Current consumption | 4,4 A |
| EER / Energy Efficiency | 2,61 / A |
Heating
| Feature | Detail |
|---|---|
| Rated capacity (Btu/kW) | 10000 / 2,8 |
| Power consumption | 850 W |
| Current consumption | 3,7 A |
| COOP / Energy Efficiency | 2,4 / A |
Other Features
| Feature | Detail |
|---|---|
| Air flow rate | 350 m³/h |
| Dehumidification capacity | 24 L/g |
| Sound power level | ≤65 dB(A) |
| Dimensions (W x H x D) | 365 x 713 x 355 mm |
| Net/gross weight | 22 / 24 kg |
| Refrigerant / Precharged quantity | R290 / 195 g |
| Accessories included | Air exhaust hose (145mm), Window adapter, Remote control |
Data sheet
- Air conditioners: Portable
- Gas: R290
- Power: 12000 BTU (3,5 Kw)
- Room Size: 35m²
- Series: Compact
