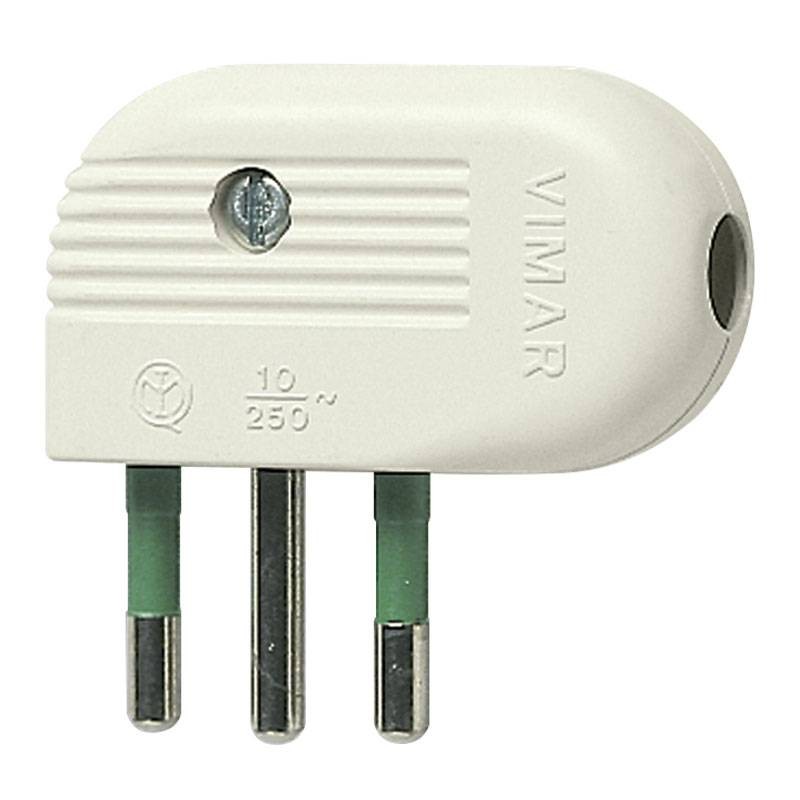

Vimar Mille flat plug 2P+E 10A 250V White 01041.B
VIW 01041.B
8007352035454
Vimar Mille series flat square plug is designed to provide a safe and efficient connection in environments with limited space, thanks to the 90-degree shape that reduces bulk behind furniture or appliances, with built-in Sicury protection and secure connection via screw terminals. Ideal for homes, offices and small facilities, with the following features:
-
Plug type: 2P+E Italian standard type SPA11
-
Rated current: 10 amps
-
Output: Angled (90 degrees) for space-saving installations
-
Protection system: Sicury against accidental contact
-
Connection: With screw terminals
-
Degree of protection: IP20
-
Material: Plastic
-
Colour: White
€1.14
Items Available: 136
: 87
Vimar Sicury flat plug: safe and easy to install
Built-in safety with Sicury system
The Sicury system protects the user from accidental contact with live parts, ensuring maximum safety during use. It is a reliable solution for domestic and semi-professional applications.
Easy assembly with screw clamps
Equipped with screw clamps, the plug allows quick and safe connection of cables. Installation is easy and stable even for those doing occasional assembly or quick intervention.
Compatibility with standard Italian installations
With a rated voltage of 250V and current of 10A, this plug conforms to the Italian standard type SPA11, which is perfectly compatible with most common household sockets and systems.
Technical Characteristics Vimar Flat Plug
| Feature | Value |
|---|---|
| Series | Mille |
| Safety system | Sicury |
| Number of poles | 2P + T |
| Rated voltage | 250 V |
| Rated current | 10 A |
| Standard | Italian type SPA11 |
| Cable output direction | Square (right angle) |
| Connection type | Screw terminal |
| Material | Plastic |
| Color | White |
| Degree of protection | IP20 (indoor use) |
There are no reviews
Data sheet
- Type: Mobile plugs
- Model: Angle Plug
