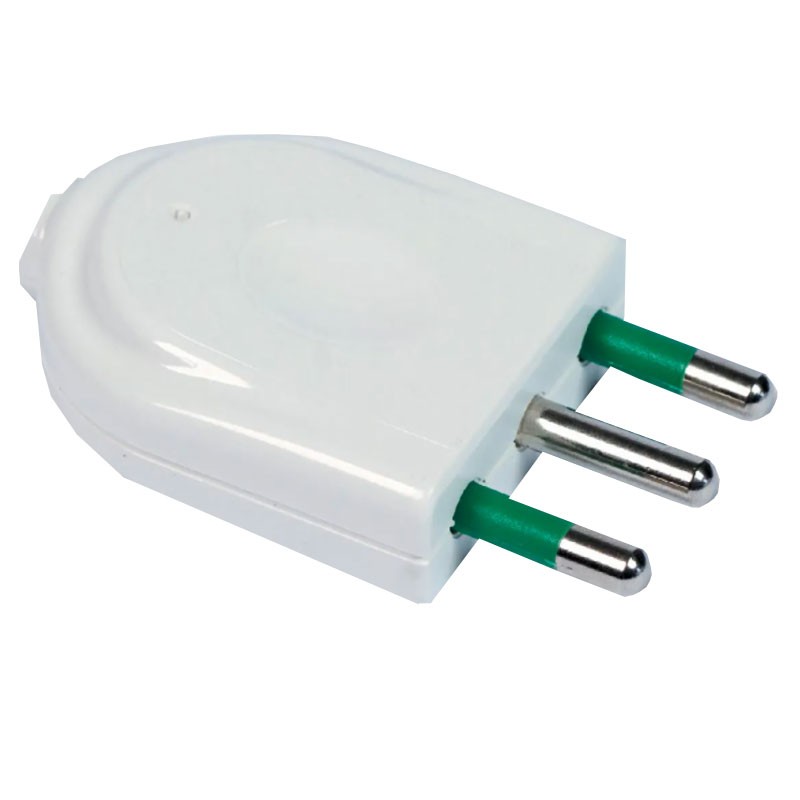

Fanton straight Italian plug 2P+E 16A Easy model White 82520-E
FME 82520-E
8015450825204
Italian straight plug Fanton model Easy, robust, safe and ideal for high power systems, with the following features:
-
Plug type: Italian S17 - 2P+E 16A
-
Rated voltage: 250V
-
Connection technique: Screw terminal
-
Material: Durable thermoplastic (polycarbonate)
-
Color: White
€1.36
Items Available: 833
: 82
Italian plug for high power consumption applications
The Easy 2P+E 16A model plug is designed for safe connection of household appliances, professional equipment and devices with higher than average power consumption. Compatible with standard Italian type S17 sockets, it guarantees a rated current of 16A at 250V, ensuring reliable performance even under prolonged use.
CE and IMQ certifications for maximum safety
With CE and IMQ certifications, the Easy plug complies with Italian and European safety and quality regulations. It is equipped with a round ground contact, which is essential for grounding the system and protecting against short circuits or electrical leakage.
High-quality insulation material
The structure of the plug is made of thermoplastic polycarbonate, a material that is resistant to heat, impact and wear and tear, ideal for everyday use, and fits into any environment, from domestic to professional.
Quick and easy installation
Cable connections are made using screw clamps, which ensure solid and secure attachment of conductors. The straight design allows easy insertion into the socket, even in situations where space is limited, making this plug especially practical and functional.
Indoor use in standard environments
Rated IP20, the plug is suitable only for use in dry indoor environments, not exposed to dust or moisture. It is not designed for severe conditions according to VDE standards, but offers excellent reliability in all ordinary use situations.
Technical Specifications Fanton Straight plug
| Parameter | Value |
|---|---|
| Plug Type. | Italian 2P+E 16A (S17) |
| Rated current | 16A |
| Rated voltage | 250V AC |
| Frequency | 50/60 Hz |
| Number of poles | 3 |
| Protective contact | Yes, round |
| Material | Thermoplastic polycarbonate |
| Connection technique | Screw terminal |
| Direction of engagement | Straight |
| Color | White |
| Degree of protection | IP20 |
Spina dritta Fanton 2P T 16A bianca : prodotto buono
prodotto standard, niente da dire, tutto ok
Prodotto eccellente soddisfatto del acquisto
Data sheet
- Type: Mobile plugs
- Model: Straight
