Philips LED floodlight 200W 22000 lumen IP65 73608599
PHA 73608599
8720169736085

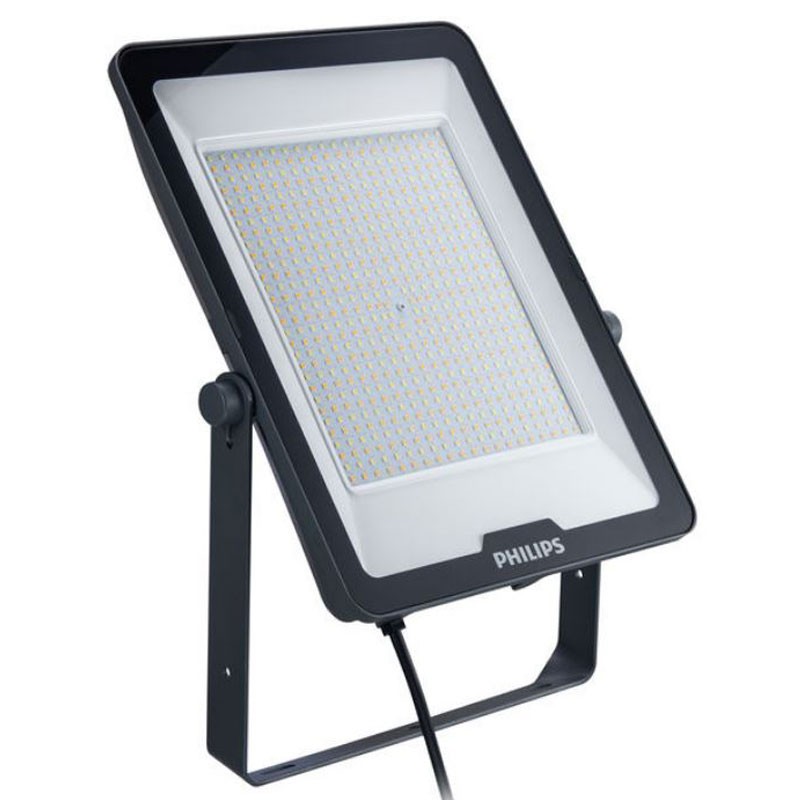

Philips Ledinaire BVP169 complete LED floodlight with the following features:
- Input voltage 220/240V
- Line frequency 50/60 Hz
- Inrush current 4.38 Amps
- Inrush time 0.0284 ms
- Power consumption 200 Watts
- Power factor (fraction) 0.95
- Correlated Colour Temperature (All-in multicolour type): 3000/4000/6500 Kelvin
- Colour rendering index (CRI) 80
- Light source colour 830 warm white and 865 cool daylight
- Optics Type Symmetrical 110 degrees
- Optic cover type Glass
- 110° Diffused Light Luminaire
- Optic type outdoor areas Symmetrical
- Driver included
- Non-dimmable
- Luminous flux 22,000 lm
€175.26
Items Available: 90
: 41

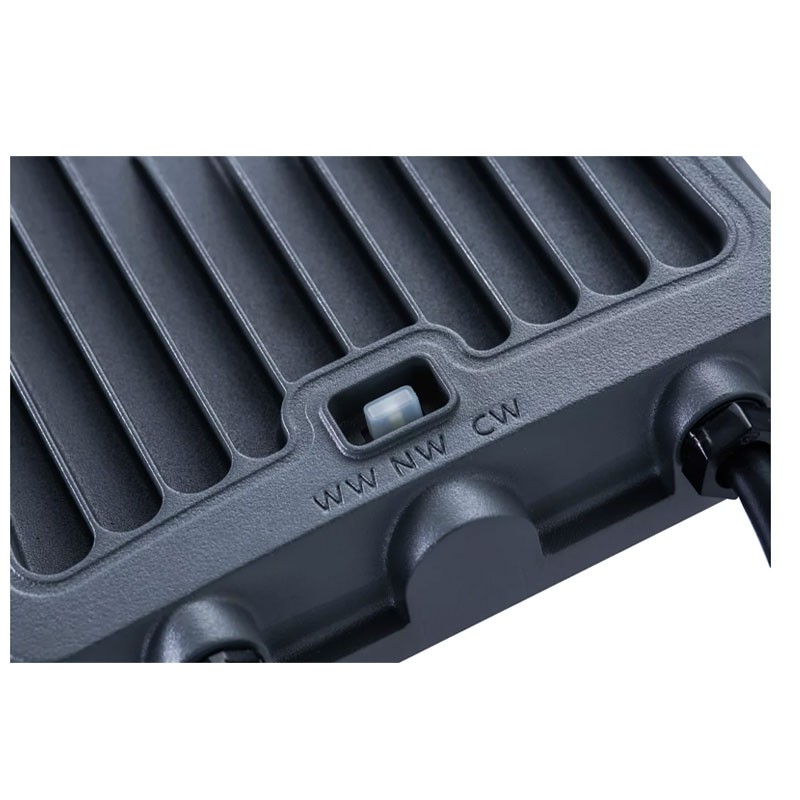

With this Ledinaire complete spotlight series, you can easily adjust the colour temperature with a simple switch. You no longer have to choose between warm white, neutral white or cool white: you get it all in one product!
The range offers Philips' high levels of quality at a competitive price. Reliable, efficient and affordable: simply ideal.
Other technical features:
- Standard pole head tilt angle 27 degrees
- Luminous efficacy (specified) (Nom) 120 110 lm/W
- Cable connection: free-terminal
- Cable: 1 metre length without plug
- Number of products under circuit breaker (16A type B) 10
- Ambient temperature range -25 to +40 °C
- Constant light emission No
- Body material Die-cast aluminium
- Reflector material Polycarbonate
- Optical material Glass
- Optics/lens cover material Transparent tempered glass
- Mounting material Steel
- Housing colour RAL 7043
- Mounting device Via U-shaped bracket, aiming scale angle, universal installation
- Optics/Lenses cover shape Flat
- Optics/Lenses cover finish Transparent

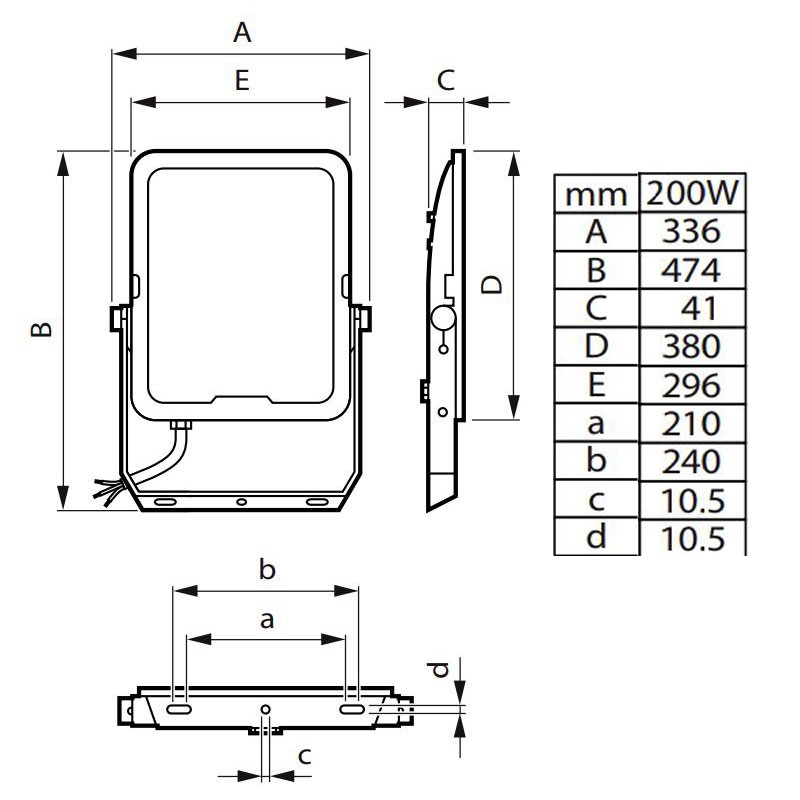

- Overall length 474 mm
- Overall width 336 mm
- Overall height 41 mm
- Effective projection area 0.11248 m²
- Dimensions (Height x Width x Depth) 41 x 336 x 474 mm
- Thermal Management IP65 (Protected against dust penetration, protected against water jets)
- Mechanical impact protection code IK08 (5 J protection against vandalism)
- Overvoltage protection (common/ differential) 1.5/1.5 kV
- Sustainability rating: /
- IEC Protection Class
- Insulation class I
- Glow wire test Temperature 650 °C, duration 30 seconds
- Flammability mark For mounting on normally flammable surfaces
- CE mark
- Photobiological risk Photobiological risk group 1 @200mm to EN62778
- Photobiological risk specification 0.2 m
- Compliance with RoHS EU Yes
- Tolerance to light intensity +/-10%.
- Initial chromaticity (0.440,0.403); (0.369,0.364); (0.313,0.337) SDCM<5
- Power consumption tolerance +/-10%.
- Tolerance Colour Rendering Index Initial -2
- Control gear failure rate at average life of 50,000 h 7.5
- Lumen maintenance at 50,000 h average service life
- Ambient temperature performance Tq 25 °C
- Suitable for random switching Not applicable
There are no reviews
Data sheet
- Colour: Black
- Type: Led floodlights
- Staining: Natural
- Watts: From 101 to 200W
- Reflector: Symmetrical
- Colour temperatures: 3000 Kelvin
4000 Kelvin
6500 Kelvin
