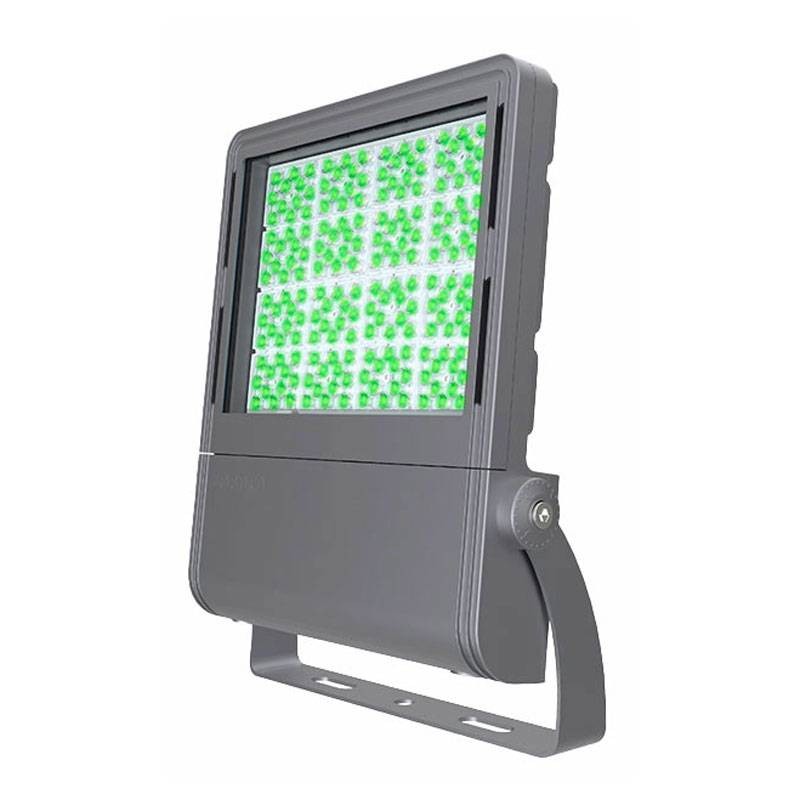

Playled Green Led Floodlight 120W 30° IP66 BGCL12030V
ERX BGCL12030V
Green LED Floodlight 120W Playled BIG COLOR ONE for outdoor use with 30° narrow beam, high strength, long life and superior optical performance.
-
Green light output High visual and color intensity
-
120W power with 144 diode multichip technology
-
30° light beam with anti-yellowing PMMA lenses
-
IP66 painted housing protected against salt spray and UV fog
-
Advanced dissipation system with large finning
-
Stainless steel hardware and anti-aging silicone gaskets
-
Overvoltage protection up to 10kV
-
Goniometric bracket for precise adjustment of projection angle
-
Can be used in marine environments and extreme conditions
€250.34
Items Available: 6
: 2
Playled BIG COLOR ONE 120W Green LED floodlight: High-level lighting performance
The Playled BIG COLOR ONE floodlight is equipped with 144 high-efficiency LEDs arranged in a multichip configuration with PMMA lenses, providing a nominal luminous flux of 12507 lumens and an effective output of 9231 lumens, with deep green hue and color rendering CRI ? 80. The narrow 30° beam makes it ideal for architectural, scenery and sports facility lighting.
Professional structure and materials
The body is made of aluminum treated with epoxy paint with high resistance against weather, salt and UV rays. The aerodynamic resistance is optimized to reduce static load in outdoor installations. The cover glass is extra-clear tempered, impact and thermal shock resistant.
Installation and versatility
The integrated goniometer system allows precise adjustment of the light beam, while the mounting bracket ensures compatibility with flat surfaces or metal structures. The IP66 rating makes it suitable for outdoor applications and in settings exposed to dust, water or salt spray.
Recommended Applications.
-
Architectural and scenic lighting
-
Facades and monuments
-
Public or private spaces with colored projection
-
Marine environments or environments subject to extreme weather conditions
-
Installations in industrial and commercial settings
Technical specifications of the Playled Big Color One Floodlight
| Family | Colored light floodlight |
|---|---|
| Application | Ceiling mount, wall mount, ground mount |
| IP rating | IP66 |
| Resistance grade IK | IK09 |

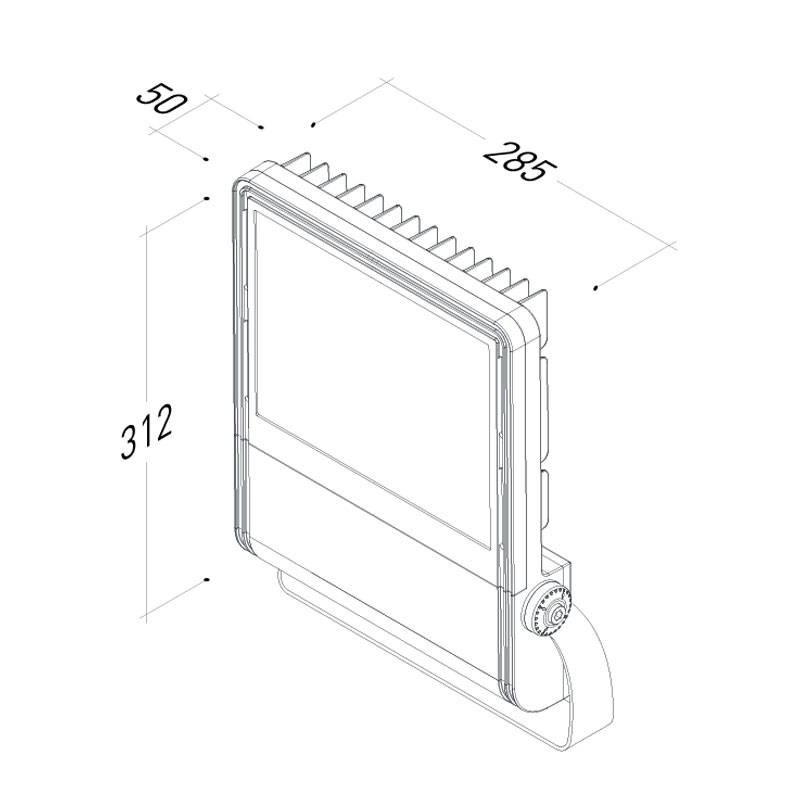

| Body size | 285 × 312 × 50 mm |
| Weight | 4.900 g |
| Source lumens | 12507 lm |
| Lumen output | 9231 lm |
| Flux maintenance | 90% at 100,000h (L90B10) |
| Flux tolerance | ±7% |
| Hue | Green |
| Color rendering index (Ra) | 80 |
| Photobiological risk (RG) | RG1 |
| Initial chromaticity | SDCM < 3 |

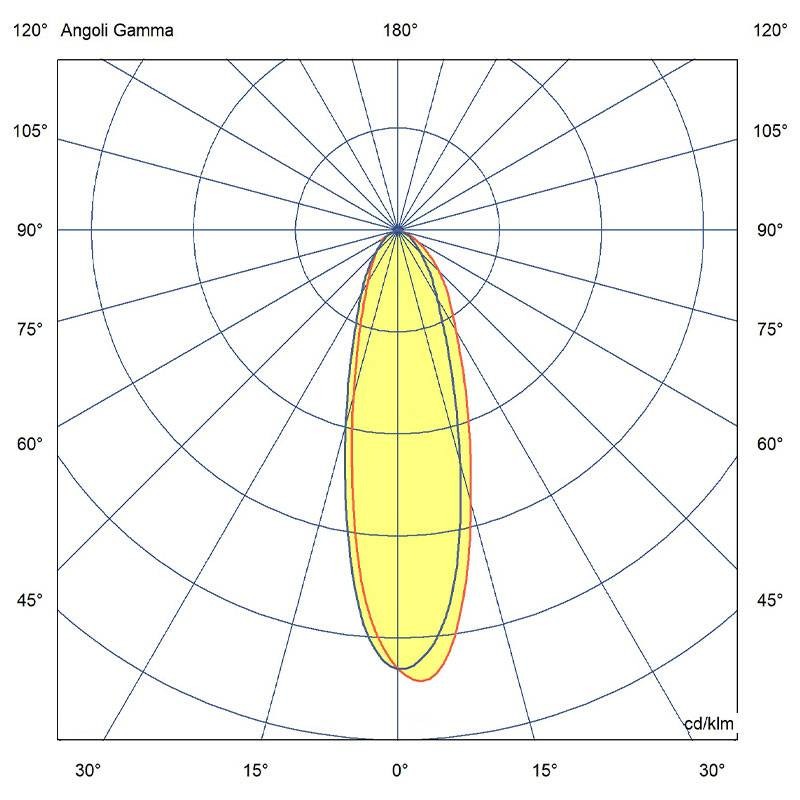

| Aperture angle | 30° |
| Adjustable | Yes |
| LED type | 3030 |
| Number of light sources | 144 |
| Power consumption | 120 W |
| Power supply | 230V |
| Consumption tolerance | ±7% |
| Power factor (PF) | 0,95 |
| Dimmable | Non-dimmable |
| Insulation class | I |
| Warranty | 7 years |
| Operating temperature range | -35°C to +50°C |
| Storage temperature | From -35°C to +80°C |
| Recyclability index | 95% |
| Body | Painted passivated die-cast aluminum |
| Finish | RAL9023 |
| Screen | High thickness tempered glass |
| Cable gland | Nickel-plated brass |
| Cable | 3x1.00 mm² Neoprene |
There are no reviews
Data sheet
- Colour: Grey
- Type: Led floodlights
- Watts: From 101 to 200W
- Reflector: Symmetrical
