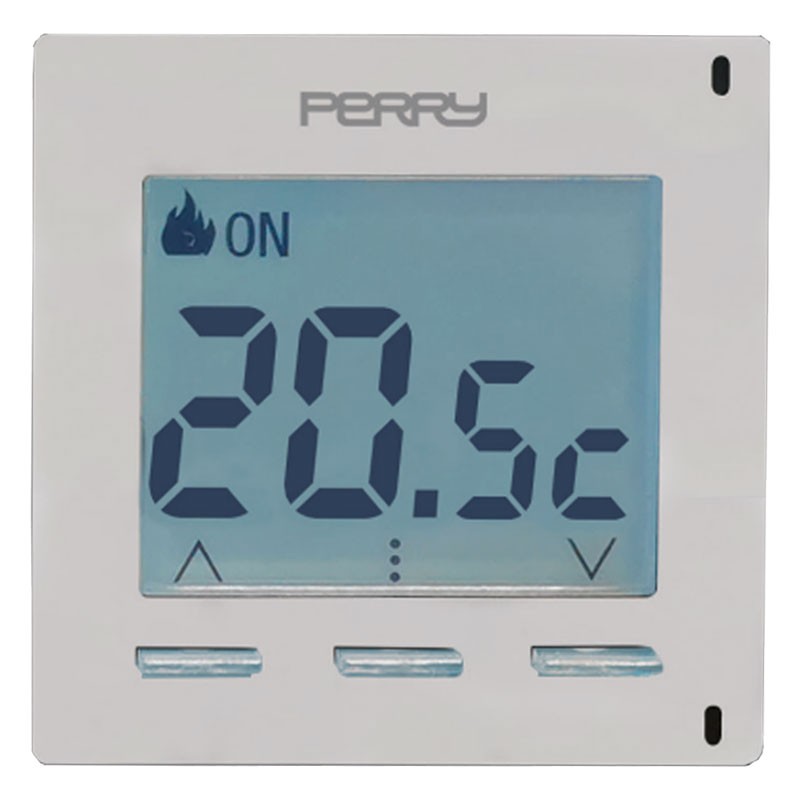

Perry Programmable Thermostat for flush-mounted switch ranges 2 modules 1CRCDG02
PER 1CRCDG02
8019108033133
Perry 2 modules Programmable Thermostat for flush-mounted switch ranges with the following features:
- 230V power supply
- 1.44 backlit LCD display
- Temperature levels 2 + antifreeze OFF
- Max 8 daily interventions
- Automatic daylight saving time changeover
- Timed or fixed backlighting
- Relay status indication
- EAST/INV control
- Temperature set lock
- Dimensions: 41.5x41.5x43.5 mm (WxHxD)

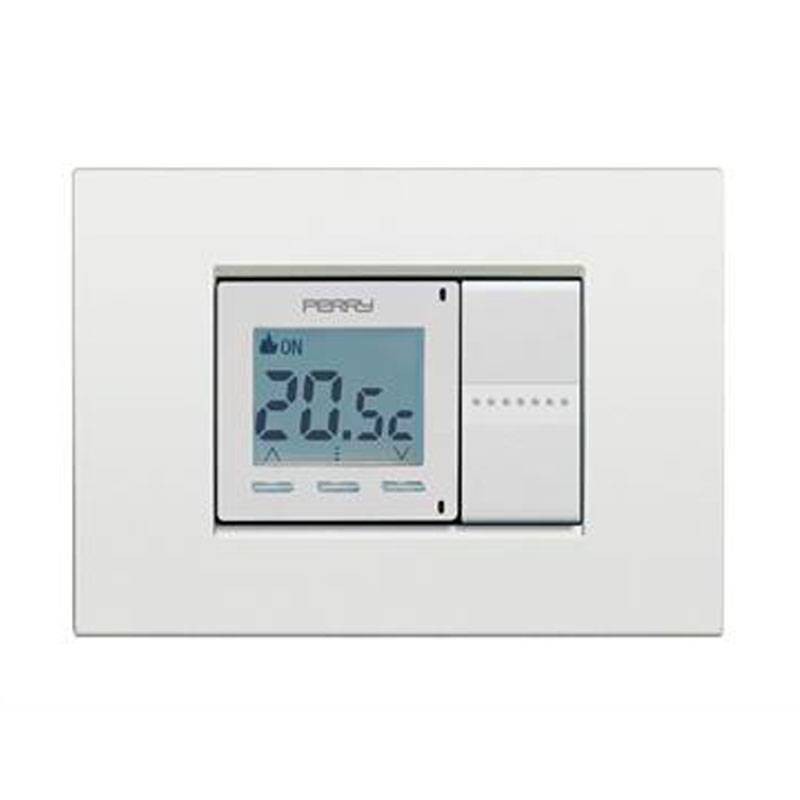

Package includes 5 black and white frames and 2 black and white faceplates for compatibility of the following switch ranges:
- BTicino: Matix, Livinlight, Livinglight Air, Light white
- BTicino: Living, Livinlight, Livinglight Air, Light anthracite
- Vimar: Arké, Arké Fit, Eikon, Eikon Evo, Plana white
- Vimar: Arké, Arké Fit, Eikon, Eikon Evo black
For compatibility with the Bticino Living Now series, purchase items 1PAK002NAB and 1PAK002NS separately.
€67.36
Items Available: 3
Frequently bought together
The Programmable Thermostat is suitable for all heating and/or cooling systems, allows you to regulate the room temperature in the place where it is installed, and thus is able to meet the users' needs in terms of Comfort and Energy Saving.
The device is equipped with a clear backlit display to keep track of all its functions in real time. Ease of use through menu navigation is the key feature, in fact despite the comprehensiveness of its functions, it is very easy to use.
The Programmable Thermostat is equipped with 3 levels of Temperature Set adjustable according to one's needs (comfort) (economy) (antifreeze for Winter mode or anti heat for Summer mode). The t1 t2 OF factory device, adjusts the temperature in a Proportional modulating mode over time with cycles of duration that can be set from 7 to 20minutes (default 7 min.); this system allows the desired temperature to be kept more stable, increasing the feeling of comfort for the user and is particularly suitable for systems with high thermal inertia such as, for example, underfloor radiant panels. Alternatively, you can select operation in Differential ON/OFF mode with the hysteresis settable from 0.2°C to 1.5°C (default 0.3°C) to suit the thermal inertia of your specific system. Depending on the positioning of the device, you have the possibility to calibrate the reading of the detected room temperature by setting a correction value from -6°C to +6°C. Particular attention has been paid to energy saving, you will be able to program according to your needs a 24-hour time/thermal profile (daily program, one for Winter mode and another for Summer mode); optional blocking of set temperatures (MAX/MIN) and adjustable anti-freeze or anti-hot temperature value, allow you to avoid wasting energy resulting in economic savings: see the description of these and other functions on the following pages.
Features:
- ON/OFF type control with adjustable differential from 0.2 - 1.5°C or modulating proportional with control period from 7 - 20 min
- Timed or fixed backlighting
- Set temperature lockout
- Correction t sensing according to product positioning
- Control range 4 - 39°C
- IP30 degree of protection
- Dimensions: 41.5x41.5x43.5 mm (WxHxD)
Package includes:
- 5 black and white finish frames
- 2 black and white faceplates
Prodotto di uso normale, uno dei pochi in commercio (ndr. cronotermostato) inseribile in scatole esistenti con utilizzo di soli due moduli. Tasti del termostato forse troppo duri, aggancio su portafrutti Vimar Plana non del tutto solido
Ottimo prodotto ad un prezzo veramente conveniente
Data sheet
- Type: Programmable thermostats
- Model: With display
- Installation: Recessed
- WIFI: No
