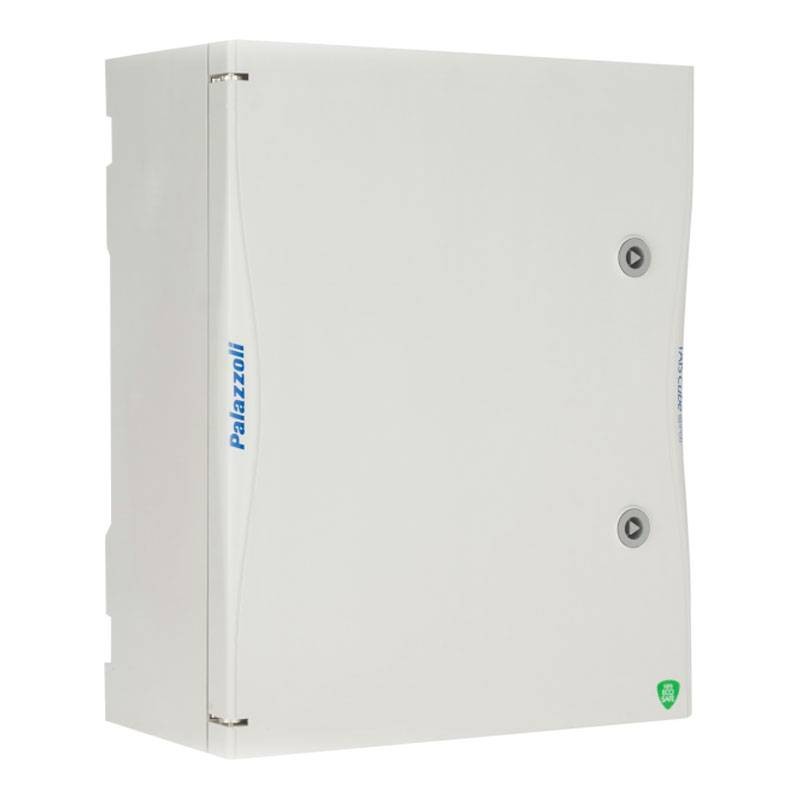

Palazzoli vacuum switchboard blind door 340x430x180 mm IP66 550002
PAL 550002
8014950050840
Palazzoli thermoset vacuum switchboard Tais Cube series with the following features:
- Installation: Wall-mounted
- Door type: Blind
- Color: Gray
- Degree of protection: IP66

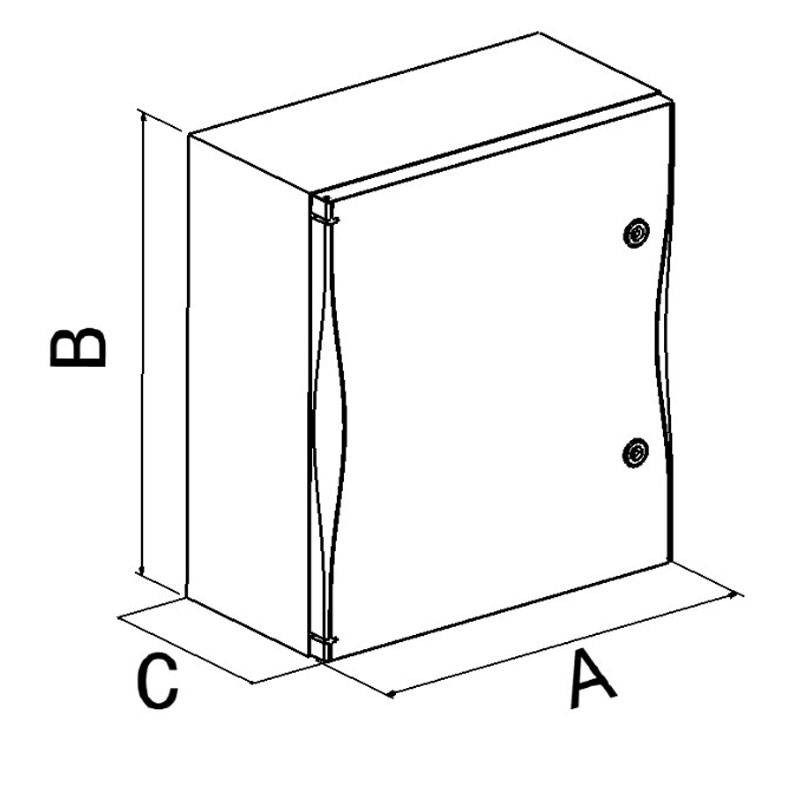

- Dimensions: 340x430x180 mm (A-B-C)
- Maximum allowable load: On the doors: 10 kg - Mounting surfaces: 20 kg - On the bottom: 20 kg
- Size 2
€122.24
Items Available: 19
Features:
- Insulation class: II
- Rated insulation voltage: 1000 Vac - 1500 Vdc
- Power dissipation: 90W
- Body material: Palazzoli thermosetting resin
- Door type: Blind
- Installation: Wall-mounted
- Color: Gray
- Number and type of latches: 2 triangle key locks
- Degree of protection: IP66
- Impact Resistance: IK10
- Operating Environment Temperature: -30/+90 degrees
- Storage Environment Temperature: -50/+90 degrees
- Dimensions: 340x430x180 mm (A-B-C)
- Weight: 4.288 kg
- Maximum allowable load: On doors: 10 kg - Mounting surfaces: 20 kg - On bottom: 20 kg
There are no reviews
Data sheet
- Type: Switchboards
- Degree of protection: IP66
- Model: Blind Door
