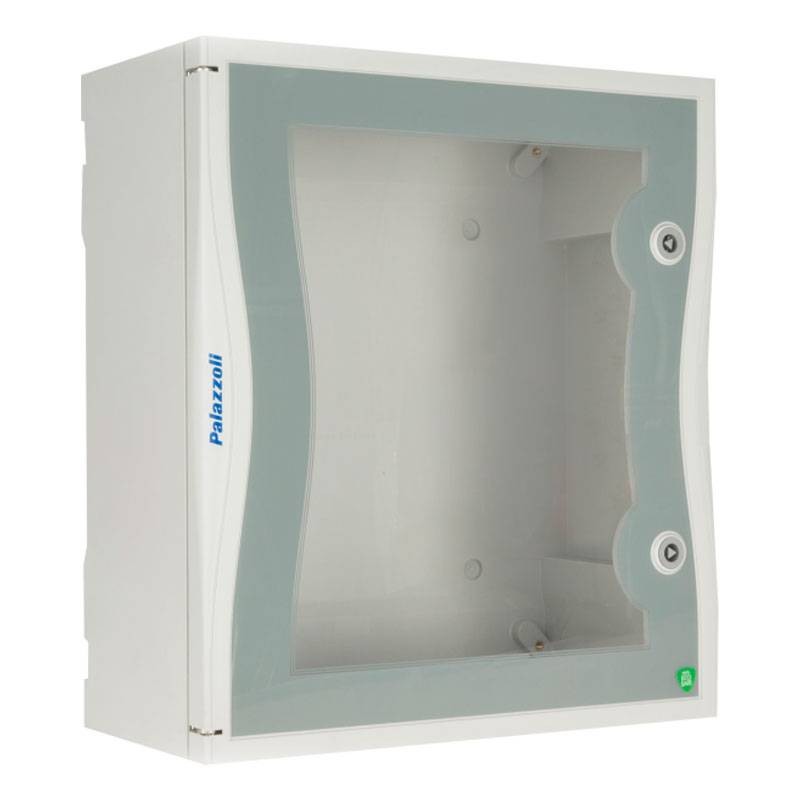

Palazzoli empty square transparent door 450x505x220 mm 550033
PAL 550033
8014950050925
Palazzoli thermoset vacuum panel Tais Cube series with the following features:
- Installation: Wall-mounted
- Door type: Transparent
- Colour: Grey
- Degree of protection: IP66

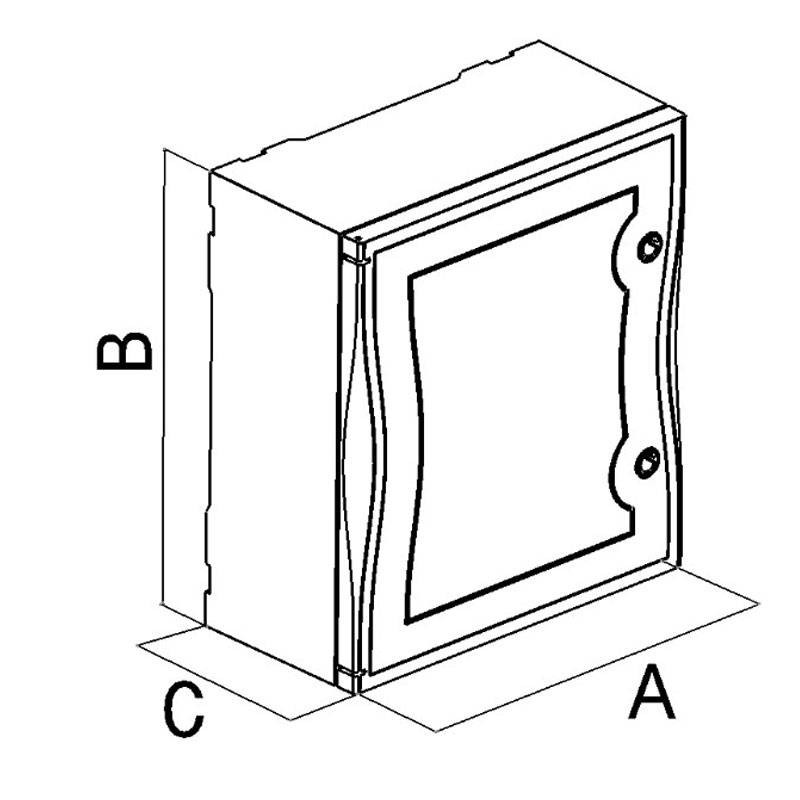

- Dimensions: 450x505x220 mm (A-B-C)
- Maximum allowable load: On the doors: 0 kg - Mounting surfaces: 30 kg - On the bottom: 30 kg
- Size 3
€207.89
Items Available: 11
Features:
- Insulation class: II
- Rated insulation voltage: 1000 Vac - 1500 Vdc
- Power dissipation: 138W
- Body material: Thermosetting resin
- Door type: Transparent
- Installation: Wall-mounted
- Color: Gray
- Number and type of latches: 2 triangle key latches
- Degree of protection: IP66
- Impact Resistance: IK10
- Operating Environment Temperature: -30/+70 degrees
- Storage Environment Temperature: -50/+70 degrees
- Dimensions: 450x505x220 mm (A-B-C)
- Weight: 6.78 kg
- Maximum allowable load: On the doors: 0 kg - Mounting surfaces: 30 kg - On the bottom: 30 kg
There are no reviews
Data sheet
- Type: Switchboards
- Degree of protection: IP66
- Model: Glass Door
