Item ventilation panel with 2 fans for floor standing cabinets IP30 Black 20292N
IT2 20292N
Item ventilation panel with 2 fans, for IP30 floor cabinets, with the following features:
-
Consists of: 2 high-efficiency fans
-
Installation: Roof-mounted on IP30 cabinets (3U)
-
Power supply: 220V AC - 50 Hz
-
Fan speed: 2300-2500 RPM
-
Material: Sheet Steel
-
Color: Black
€139.89
Items Available: 12
: 2
Ventilation panel with 2 fans for cabinets

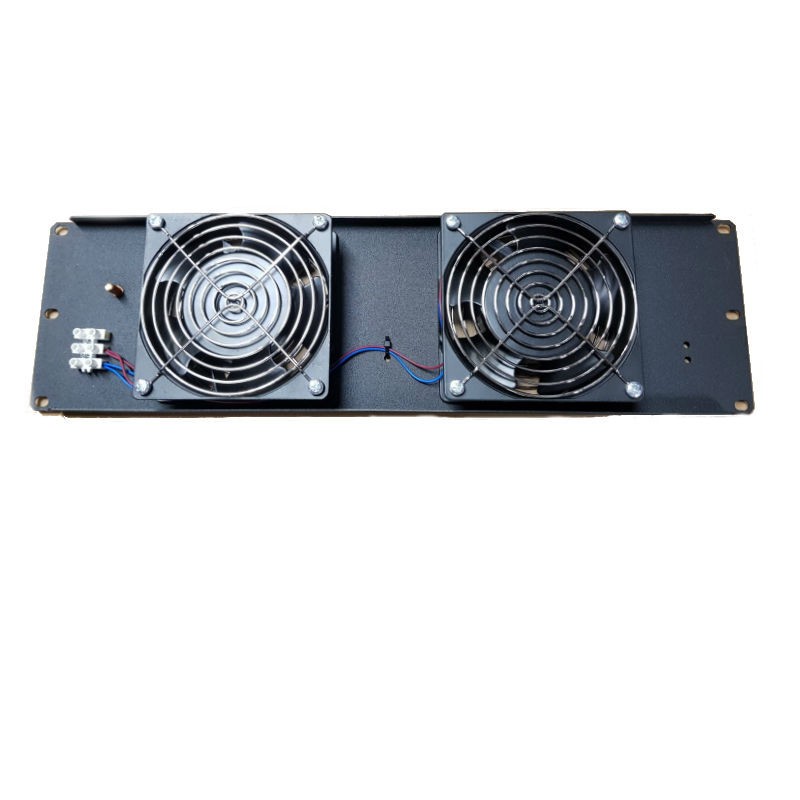

The ventilation panel is a unit designed to provide effective forced ventilation in IP30 floor-standing cabinets, ensuring the disposal of heat generated by electronic devices installed inside them. The system includes two integrated axial fans, pre-installed inside a 3-unit (3U) black painted sheet steel panel.
Optimal for electrical, network or video surveillance installations
Due to its quiet operation (36-40 dBA) and long life (60,000 hours at 25°C), this panel is ideal for:
-
Floor standing rack cabinets
-
Data and power distribution panels
-
Video surveillance installations
-
Network equipment enclosures
Easy rooftop installation by removing the pre-drilled flanges enables efficient thermal management even in closed or poorly ventilated environments.
Product advantages
-
Quick installation on existing cabinets
-
High efficiency in air exchange
-
Long service life and low maintenance
-
Compact and robust design
-
Reduced acoustic impact
Technical Specifications Item ventilation panel
| Parameter | Value |
|---|---|
| Composition | 2 high-efficiency fans |
| Air flow rate | 85-93 CFM (2.4-2.6 m³/min) |
| Rotational speed | 2300-2500 RPM |
| Sound level | 36-40 dBA |
| Operating life | 60,000 hours (at 25 °C) |
| Power supply | 220V AC - 50 Hz |
| Power consumption | 0.1 A - 11 W |
| Installation | Rooftop on IP30 floor standing cabinets (3U) |
| Material | 15/10 steel sheet |
| Color | Black |
| Insulation resistance | >100 MΩ |
| Ideal operating temperature | Up to 25 °C |
| Max. operating humidity | 85% RH |
