Elcart fan for electromechanical components 120x120x38mm 450961000
ERT 450961000
8029564134466

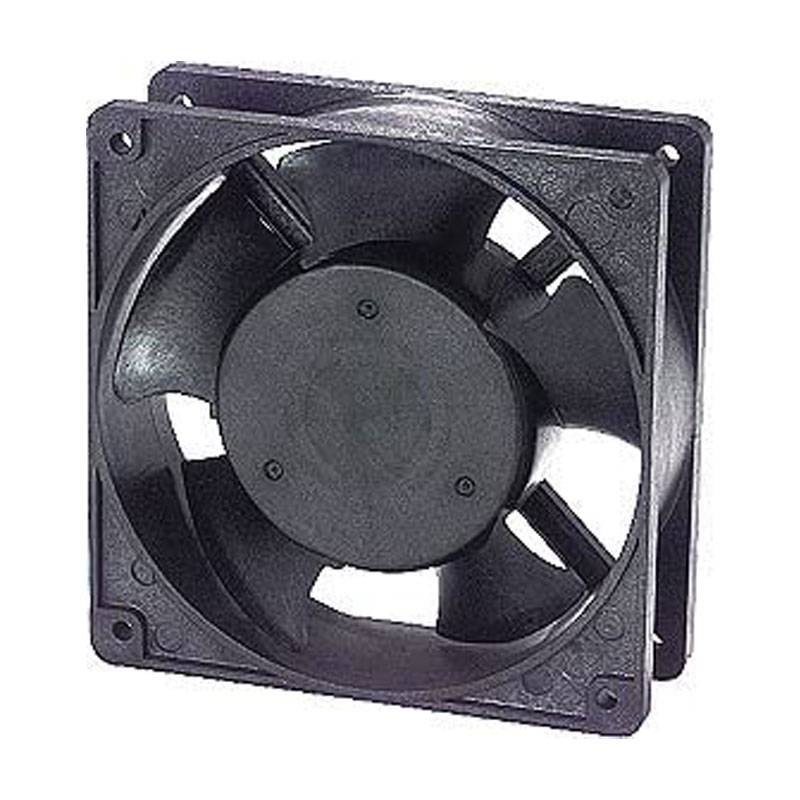

Elcart axial fan for electromechanical components bearing 120x120x38mm with the following characteristics:
- Voltage: 220V
- Voltage Type: AC
- Power: 18W
- Air Flow Rate: 105.0 CFM
Elcart fan for electromechanical components 120x120x38mm 450961000
€13.67
€13.67
Tax included
Tax included
Pay in installments with Klarna
Items Available: 28
Features:
- Frame: Die-cast aluminum, painted black or natural finish, die-cast zinc, painted black or natural finish, PBT plastic material (UL 94V0)
- Motor: Shielded pole motor construction
- Fan: Injection molded, non-flammable thermoplastic material, UL 94V0 category
- Insulation resistance: 10 Mohms minimum at 500 VDC
- Dielectric resistivity: 1 minimum at 1,500 VAC/50-60 Hz
- Operating temperature: -10°C to +70°C for bushing mounts
- Operating voltage: 110/120V Voltage fluctuating from 85V to 125V - 220/230V Voltage fluctuating from 190V to 245V
- Ambient humidity: RH 20% to 80%
The fans are designed so that the wiring will not be burned even if the rotating parts shrink. The use of non-combustible insulating materials ensures their safety.
The noise level ranges from 24 to 46 dBA, depending on speed and model.
There are no reviews
Data sheet
- Type:
- Fans
