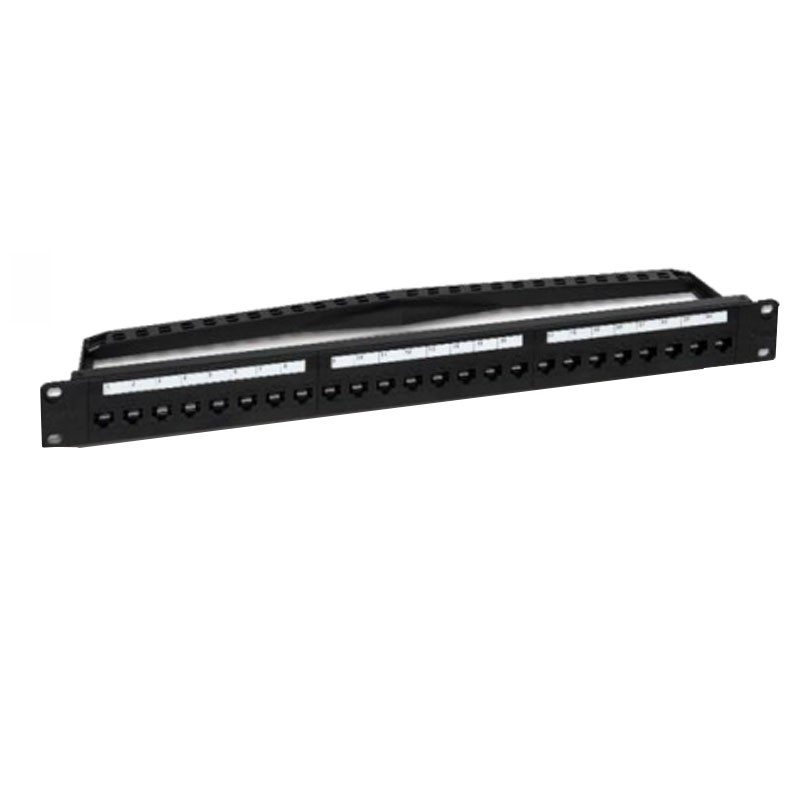

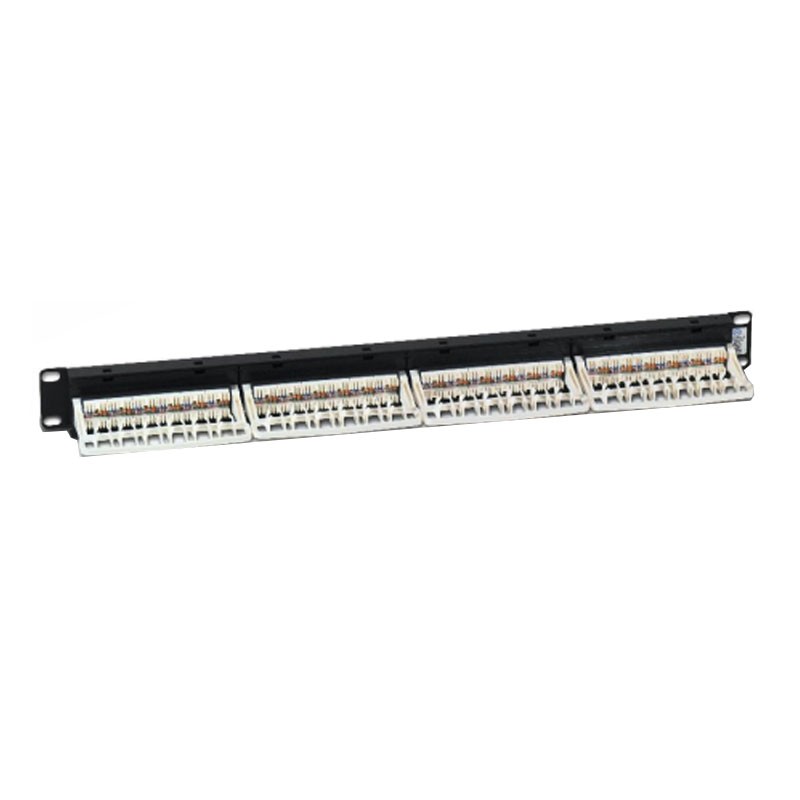

Item stackable 24-socket RJ45 cat.6 UTP permutation panel 60112
IT2 60112
Item LINKAGE series preloaded permutation panel, with the following features:
- Number of sockets: 24, RJ45 cat.6 interchangeable model
- Type: U/UTP
- Color: black
- Conductor size (AWG): 26/7
- Dielectric strength: 1000V
- Number of connection cycles: 750
- Allowable V-I values: 150V - 1.5A
- Complete with identification labels and rear cable guide
- Standard 19" rack sizing
- 12/10 mm sheet metal frame with 3 8-position modules in 4 different colors
- ABS and PC compound connectors
- Nickel-plated 50/60 micron bronze terminals
- Nickel contacts with 50-micron gold plating
- Adhesive identifying connections to be made according to EIA/TIA 568A
- Dimensions: Height: 40mm - Width: 500mm - Depth: 40mm
€119.33
Items Available: 11
Normative references:
- IEC 60603-7-5 (standard on RJ45 connectors)
- ISO 11801 2 ed. (general systems)
- EIA/TIA 568B (cat.6 systems)
- IEC 61935-1 (general systems)
- EN 50173-1 (Structured cabling)
- 306-2 (residential wiring guide)
There are no reviews
Data sheet
- Type: Patch panels
