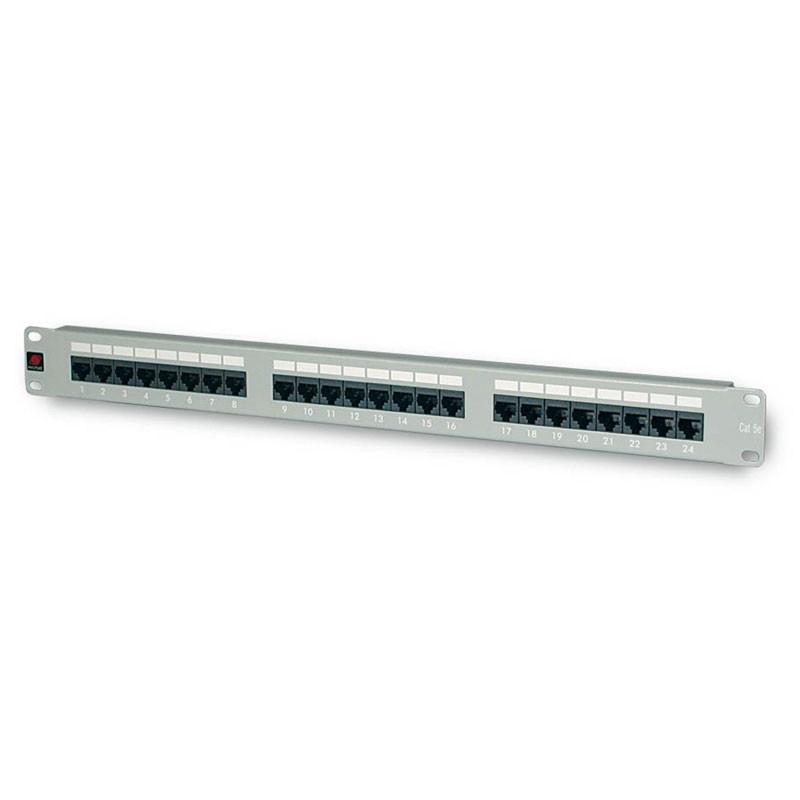

Fanton Patch Panel 24 Ports UTP Cat 5e Gray 23422
FME 23422
8015450234228
Fanton UTP Cat. 5e patch panel, reliable connections for 19-inch rack cabinets, with the following features:
-
Number of RJ45 ports: 24
-
Connector type: RJ45 8/8
-
Size: 1U for 19 inch rack
-
Structure material: 10/12 mm steel sheet
-
Supported conductors: 22 - 26 AWG
-
Dielectric strength: 1000 V
-
Connection cycles: 750 (plug) - 200 (IDC)
€89.06
Items Available: 3
Professional patch panel for data and voice networks
The Fanton 24-port UTP Cat. 5e patch panel is the ideal solution for building structured cabling in 19-inch network cabinets, thanks to its compact and robust 1U format. Equipped with RJ45 8/8 connectors, it is designed for centralized and orderly management of LAN networks in professional, tertiary or advanced residential environments.
Solid construction and quality materials
The structure is made of 12/10 mm steel sheet, while the connectors are made of ABS and PC compound, ensuring high mechanical strength. IDC terminals are nickel-plated phosphor bronze (50/60 micron) with 50-micron gold-plated nickel contacts, ensuring long-term reliability and up to 750 plug cycles / 200 IDC cycles.
Efficient and neat connection
Rear connection, available in 180-degree or horizontal mode, is facilitated by:
-
Cable ties included
-
Rear metal cable clamp
-
Identification sticker for quick labeling
These features simplify the organization of cables within the rack, improving accessibility and maintenance.
Technical Specifications Fanton patch panel
| Parameter | Value |
|---|---|
| Category | Cat. 5e - UTP |
| Number of RJ45 ports | 24 |
| Type | Patch panel |
| Connector type | RJ45 8/8 |
| Rear connection | 180° or horizontal |
| Size | 1U - for 19" rack |
| Structure material | Sheet steel 10/12 mm |
| Connector material | ABS + PC with nickel-plated phosphor bronze contacts |
| Supported conductors | 22 TO 26 AWG |
| Dielectric capacity | 1000 V |
| Connection cycles | 750 (plug) / 200 (IDC) |
| Accessories included | Cable ties, metal cable clamp, labels |
| Operating temperature range | -20 ÷ +70 °C |
| Installation temperature | -5 ÷ +50 °C |
| Storage temperature | -40 ÷ +70 °C |
| Certifications | Compliant with ISO, IEC, EIA/TIA |
There are no reviews
Data sheet
- Type: Patch panels
- Doors: 24
