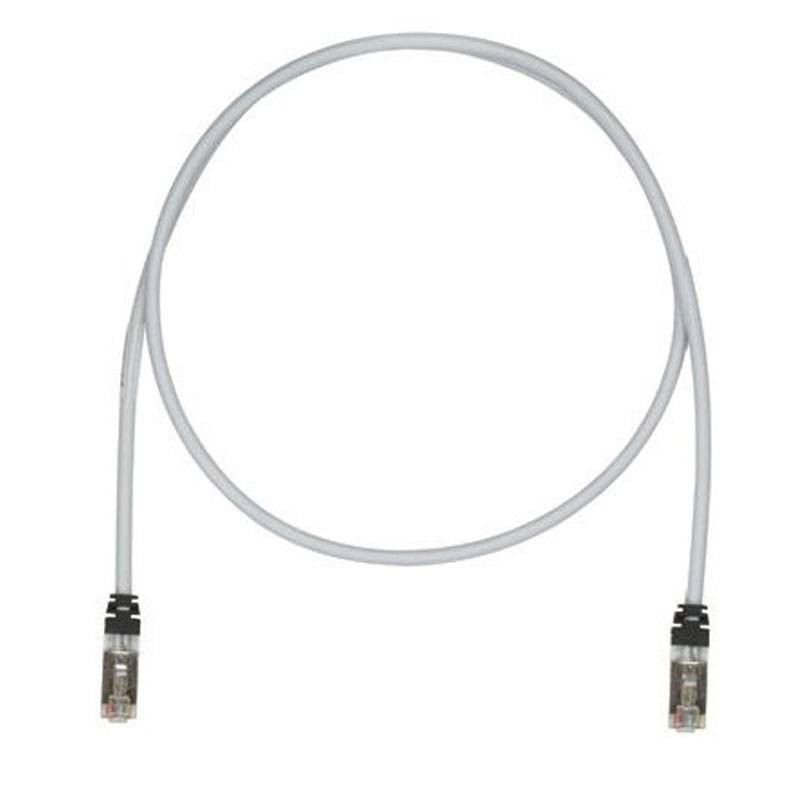

Panduit Patch Cable F/UTP Cat 6A 28 AWG 2.5 m Grey STP28X2.5MIG
PAN STP28X2.5MIG
Panduit F/UTP shielded patch cable with the following characteristics:
- Conductor gauge: 28 AWG
- Performance level: Category 6A
- Cable construction: F/UTP
- Cable length: 2.5 meters
- Nominal cable outer diameter: 4.7 mm
- Color: Gray
Anti-tangle closure prevents snags and ensures quick release, simplifying movements, additions and changes.
€18.45
Items Available: 20
: 18
STP TX6A-28 10Gig Cat 6A patch cable is a gray shielded, twisted pair, solid, CM/LSZH cable with high-performance modular connectors. Its compact 28 AWG design simplifies installation and handling.
The anti-tangle closure prevents snags and ensures quick release, simplifying movements, additions, and changes. RapidID-enabled, the product has preinstalled barcodes for easy port mapping using RapidID software.
Features:
- Conductor gauge: 0.16 kcmil
- Conductor Type: Solid
- Type of connecting cable: Shielded
- Plug housing material: Polycarbonate
- Jacket Material: LSZH material
- Operating temperature: -10/+60 degrees
- Storage temperature: -40/+70 degrees
- Flammability rating: Double classification (CM/LSZH)
- PoE compatibility: IEEE 802.3af (PoE), IEEE 802.3at (PoE+) and IEEE 802.3bt Type 3 and 4 (PoE++)
- Plug type: 8 positions
Application:
- 10GBASE-T Ethernet
- Data center I/O consolidation
- Virtualization of data center servers
- Backbone aggregation
- Parallel processing and high-speed computing
There are no reviews
Data sheet
- Type: Patch cables
- Cable Length: 2.5 meters
