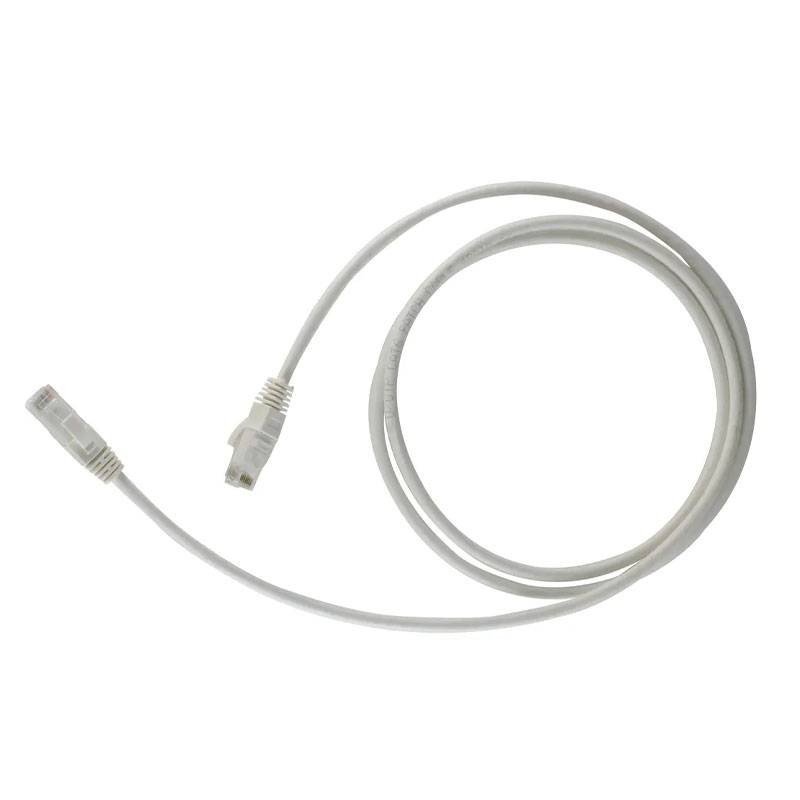

Fracarro UTP CAT6 Patch cable RJ-45 connectors 5 meters white 287720
FRA 287720
8016978107667
Fracarro UTP CAT6 Patch cable is a high-performance patchcord with RJ-45 connectors, ideal for Gigabit Ethernet networks. It provides a stable and secure connection for medium and high-density applications, with the following features:
-
Type: Patch CAT6 U/UTP
-
Operating frequency: 250 MHz
-
Connectors: RJ-45 CAT6 plug
-
Contacts: 50 µm gold plated
-
Conductors: Flexible red copper AWG26
-
Sheath: LSZH (Low Smoke Zero Halogen) white
-
Length: 5 meters
-
Outer diameter: 5 mm
-
Minimum bending radius: 36 mm
-
Colour: White
€4.68
Items Available: 26
: 24
Fracarro Patch cable Reliable, Robust and Easy to Install
Reliable connection for high-performance networks
This CAT6 patch cable is designed to provide high transfer rates of up to 1 Gbps, making it ideal for LAN networks, IT infrastructure and data centers. Compliant with ANSI/TIA?568?B.2?1 and ISO/IEC 11801 standards, it ensures a stable signal without interference.
Rugged construction and quality materials
Small 5 mm diameter and soft boot improve maneuverability in high-density installations. LSZH sheathing offers protection in case of fire, reducing the emission of toxic fumes. 50 µm gold-plated contacts provide excellent conductivity and durability.
Easy installation and universal compatibility
With the interchangeable colored clip, cables can be mapped into patch panels, making network organization easier. The RJ-45 connector is compatible with all network devices, ensuring quick and easy installation.
Applications and Uses of the Patch cable
-
Connections in LAN networks and data centers
-
Connections in business and home infrastructures
-
Patch panels and switches for structured cabling
-
Support for Gigabit Ethernet (1000BASE-T)
Technical Specifications Fracarro Patchcord Cable
General Characteristics
| Feature | Value |
|---|---|
| Cable Type. | CAT 6 U/UTP |
| Connector | RJ45 CAT 6 PLUG |
| Contacts | 50 µm gold plated |
| Holding Tensile Voltage | 50N |
| Working frequency | 250 MHz |
| Maximum speed | 1000BASE?T |
| Impedance | 100 ±15 Ohms |
Materials and Structure
| Feature | Value |
|---|---|
| Inner conductor material | Copper |
| Outer sheath material | LSZH White |
| Insulation material | Thermoplastic with high mechanical strength 0.98 mm |
| Capacity | < 560pF/100m (mutual) |
Dimensions and Performance
| Feature | Value |
|---|---|
| Diameter | 5 mm |
| Cable length | 5 meters |
| Minimum bending radius | 36 mm |
| Working temperature | -20/+60 degrees |
| Colour | White |
There are no reviews
Data sheet
- Type: Patch cables
- Cable Length: 5 meters
