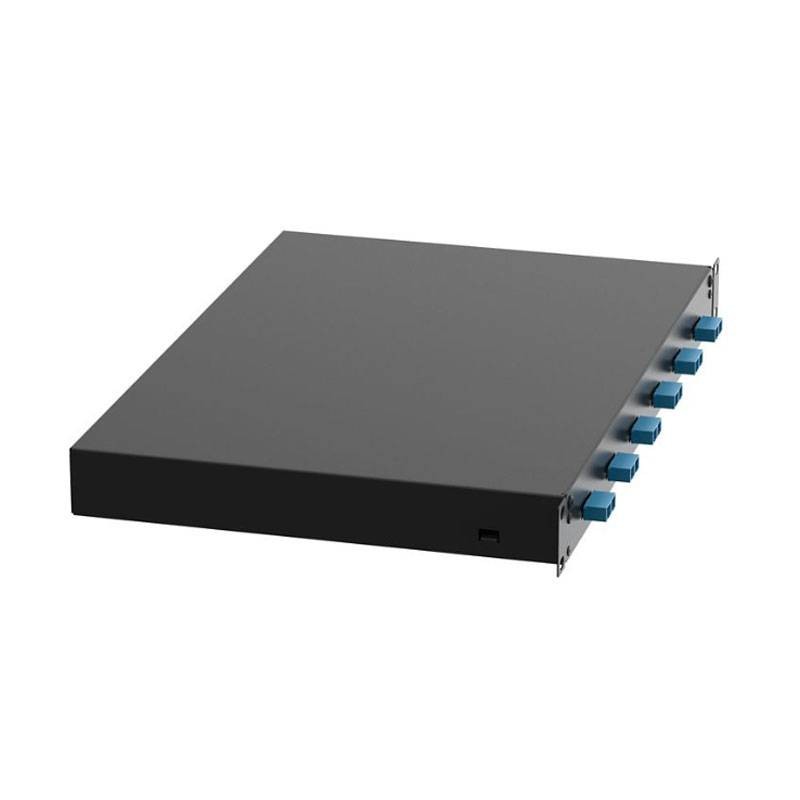

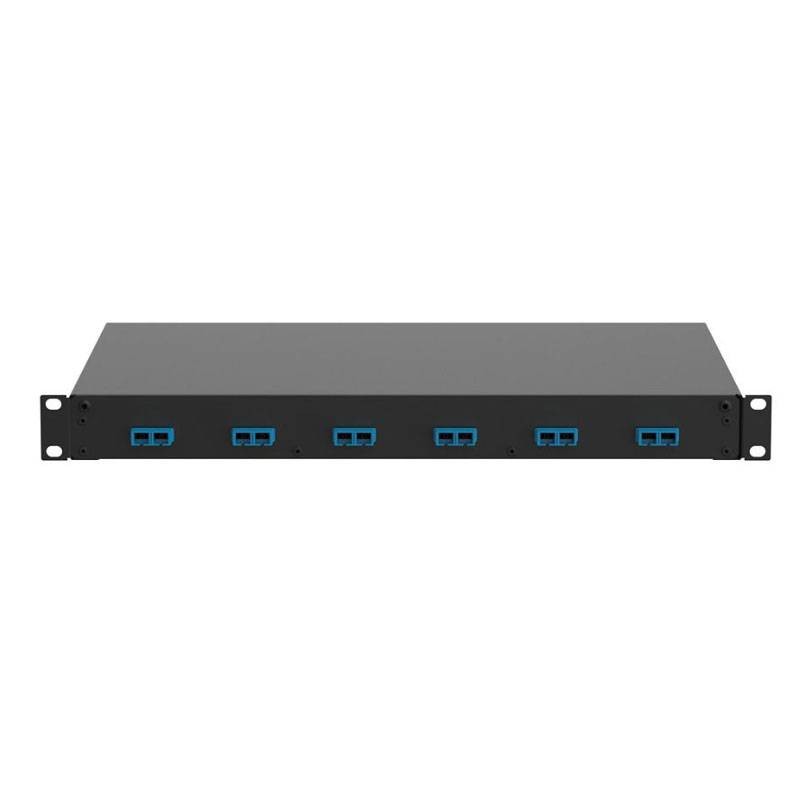

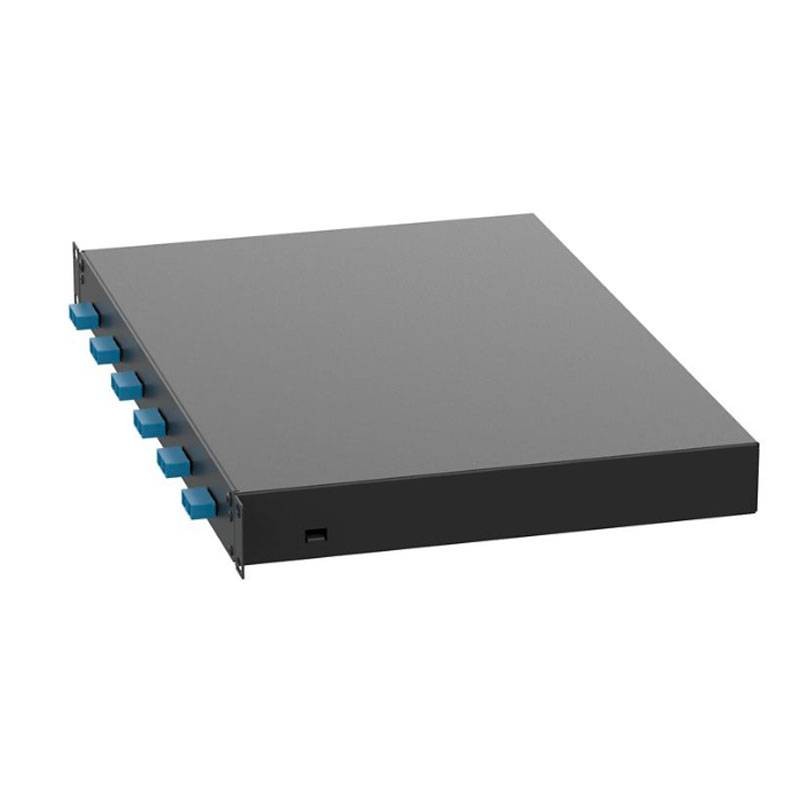

Panduit NetKey advanced fiber management drawer for critical environments
The Panduit fiber enclosure is a professional solution for managing fiber connections in data centers. With its pre-assembled configuration with duplex SC adapters, it simplifies installation and ensures order, reliability, and immediate accessibility to fiber terminations.
Smart design and sturdy construction
Made of metal, the drawer consists of two parts: a fixed base and a sliding drawer with an extension of up to 300mm for easy access to connections during maintenance or modifications. Installation is simplified with built-in brackets compatible with all standard 19-inch racks (EIA-310/IEC 60297).
Ready-to-use with duplex SC adapters
The enclosure comes pre-loaded with 6 duplex SC adapters compatible with OS1/OS2 single-mode fiber. It is then immediately operational for patching and fiber termination, without the need for additional components.
Maximum flexibility and simplified identification
The enclosure offers several cable entry methods, including PG11 ferrules, 30mm rubber conduits, and 20mm prefolds. Screen-printed labeling areas facilitate visual identification of fiber channels, improving document management of installations.
Recommended Applications.
-
Data centers and technical rooms for patching between backbone and distribution
-
Transition between trunk providers and in-building cabling
-
Fiber to the Zone (FTZ) installations
-
Telecommunications and high-density IT infrastructure
Panduit Fiber Drawer Technical Specifications
| Product Type. |
Preconfigured 1RU fiber enclosure |
|---|
| Number of ports |
6 duplex SC ports |
|---|
| Type of fiber supported |
OS1 / OS2 (single-mode) |
|---|
| Connector type |
SC Duplex |
|---|
| Body/adapter color |
Black / Blue |
|---|
| Mounting |
19" rack EIA-310 / IEC 60297 |
|---|
| Height |
43.9 mm |
|---|
| Width |
482.6 mm |
|---|
| Depth |
308.2 mm |
|---|
| Material |
Two-piece metal with sliding drawer |
|---|
| Accessories included |
FMS1 brushes, PG11 sleeves, cable ties, M6/#12-24 screws |
|---|
| Standards Compliant |
EIA-310, IEC 60297, RoHS |
|---|
| Applications |
Patching, trunk transition, distribution management |
|---|
