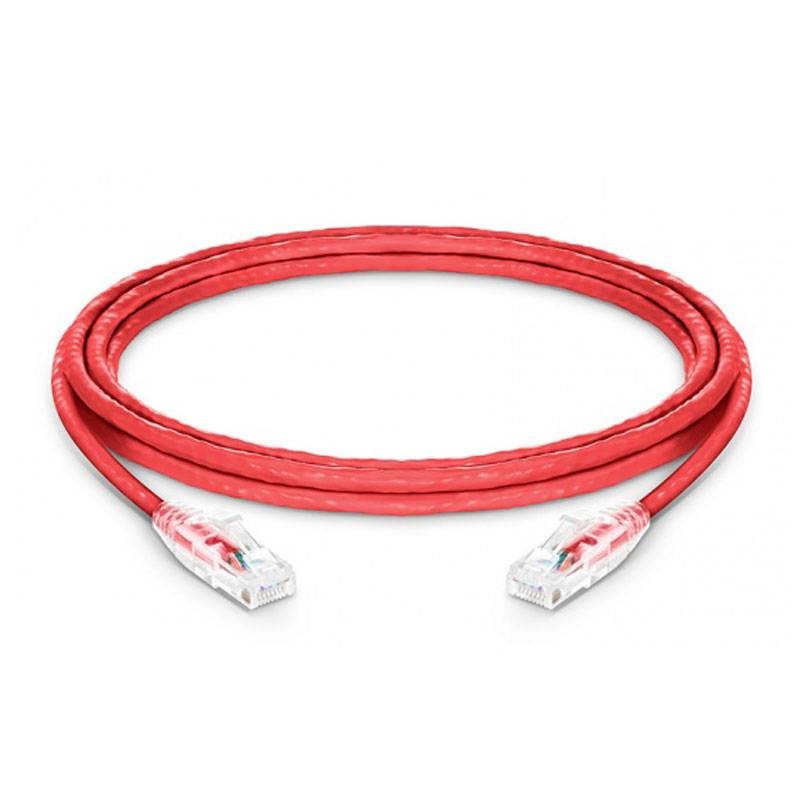

TX6A-28 Cat 6A UTP patch cable consists of an unshielded, twisted-pair, unshielded, solid CM/LSZH cable with performance-enhancing modular connectors. The use of 28 AWG cable ensures that this patch cable has a small diameter, making it easy to install and use. The patented tangle-free closure prevents rips and provides easy release saving time on frequent moves, adds, and changes. The patch cable is 3 meters long, has a nominal diameter of 0.185 inch (4.7 mm) and is red.

Features:

• Application: 10GBASE-T Ethernet, Data center I/O consolidation, Data center server virtualization, Backbone aggregation, Parallel processing and high-speed computing.
• Connector type 1: Modular plug
• Connector type 2: Modular plug
• Wiring Diagram: T568B
• Maximum operating temperature (°C): 60
• Minimum operating temperature (°C): -10
• Maximum storage temperature (°C): 70
• Minimum storage temperature (°C): -40
• Flammability classification: dual classification (CM/LSZH)
• IEC Variant: 60603-7
• PoE compatibility: IEEE 802.3af (PoE), IEEE 802.3at (PoE+) and IEEE 802.3bt type 3 and 4 (PoE++)
• Plug type: 8 position
• Part features: 100% tested performance for cable mapping, NEXT and return loss, Centered disconnected plug, Built-in torque management, Patented anti-tangle closure
