4Power PoE Media Converter 1 port 10/100/1000T +1P SFP 4N-MGP1T1F

4power
4power
4PW 4N-MGP1T1F

The Industrial PoE Media Converter 4Power 4N-MGP1T1F integrates 1 Gigabit RJ45 PoE+ port and 1 SFP slot, allowing copper-fibre conversion with power up to 30W for IP devices:

  • 1 port 10/100/1000Base-T PoE+

  • 1 SFP slot 1000Base-X

  • Standard IEEE 802.3af/at

  • PoE power up to 30 Watt

  • Power supply 48VDC

  • Compact industrial design

  • Fanless design with low power consumption

  • RJ45 transmission speed: 10/100/1000 Mbps

  • Status LEDs: Power, Link/Activity

  • Operating humidity: 10%–90% non-condensing

  • Compact dimensions (94 × 71 × 26 mm)

Offer expires in
Do you have questions about this product or did you not find what you were looking for? Ask us!
4Power PoE Media Converter 1 port 10/100/1000T +1P SFP 4N-MGP1T1F
€75.76
€73.49
€73.49

Lowest price in 30 days:
€75.76
Save 3%
€73.49
Tax included
Calculate shipping cost
Offer expires in
Items Available: 2
Further availability of the manufacturer
€73.49

Buy it within and receive it from Thursday, 19 March
Two-year warranty
Easy return within 14 days
Purchase with tax breaks

Are you a professional ?

Request access to

Trustpilot

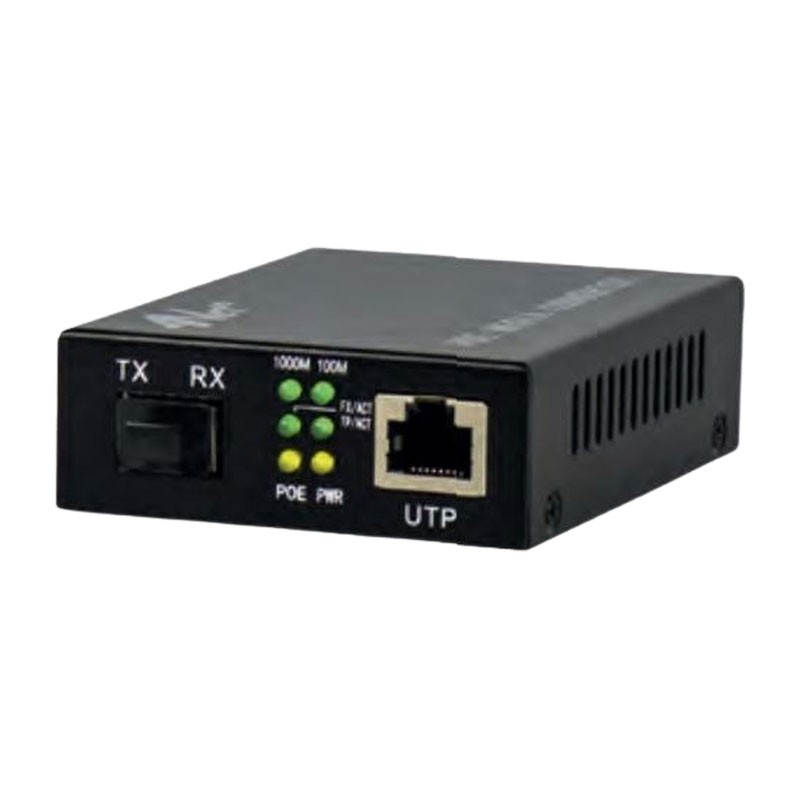

Industrial PoE Media Converter 4Power 4N-MGP1T1F

The 4N-MGP1T1F from 4Power is an industrial PoE media converter designed to integrate copper Ethernet networks with fibre optic infrastructures, while simultaneously providing PoE power to connected devices.

Ideal for IP video surveillance systems, wireless access points, industrial installations, and corporate networks where fibre-copper conversion with centralized power is required.

Thanks to its compact dimensions (94 × 71 × 26 mm), it can be easily integrated into technical panels or network cabinets.


Compatible with UTP Cat.5 or higher LAN cables, up to 100 metres on copper.

General Data
Network Standard IEEE802.3i 10BASE-T, IEEE802.3u 100BASE-TX, IEEE802.3ab 1000BASE-T, IEEE802.3x Flow Control, IEEE802.3af/at PoE, IEEE802.3az EEE
Fibre Optic Type SFP
LAN Cable Type UTP Cat.5 or higher
Transmission Speed 10/100/1000 Mbps (RJ45), 1000 Mbps (SFP)
Output Connections RJ45 - SFP
Wavelength 850 nm / 1310 nm / 1550 nm
LED Indicators Power, Link/Activity
Power Supply 48 VDC
PoE Output Power 48 VDC / Max. 30 Watt
Assigned Power Pin 1/2 (+), 3/6 (-)
Maximum Consumption 30 Watt
Humidity 10% - 90% non-condensing
Dimensions (LxWxH) 94 x 71 x 26 mm

There are no reviews

Data sheet

Type:
IP Converters
