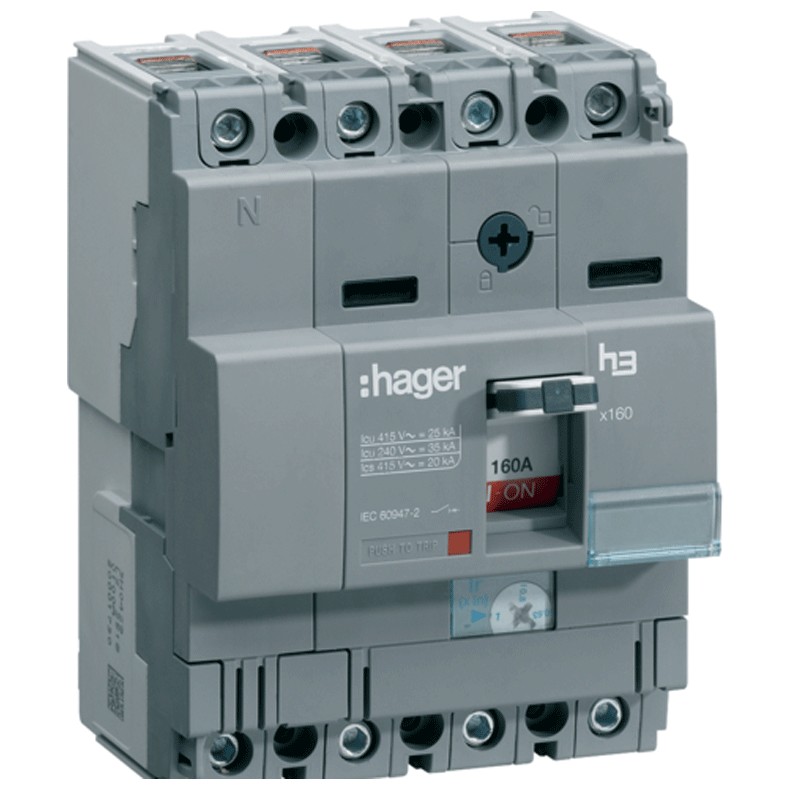

Hager 4P 160A 25KA X160 thermomagnetic circuit breaker box HHA161H
HAG HHA161H
3250613130930
Hager X160 boxed thermomagnetic release switch with the following characteristics:
- Voltage 220/415 Vac
- Rated current 160 amperes
- Interrupting power 25kA
- 4 modules
- 4 protected poles
- DIN connection (universal for any switchboard on the market)
€677.23
Items Available: 7
: 2
Frequently bought together
Features:
- Hager Series
- Voltage 220/415 Vac
- Rated current 160A
- Interrupting power Icn 25kA
- Frequency 50/60 Hz
- 4 modules
- 4 Poles protected
- Fixing method DIN rail type O or type J
- Box type Fixed built-in
- Rated insulation voltage 690 V
- Rated fault withstand current 8000 V
- Depth 68 mm
- Height 130 mm
- Width 100 mm
- Screw connection
- IP4X enclosure degree of protection
- Total power loss 43.8 W
- Power loss per pole 14.6 W
- Electrical life and number of cycles 1000
- Number of operations (mechanical life) 4000
- Tightening torque 6 Nm
- Screw connection
- Pollution degree 3
- Altitude 2000m
- Calibration temperature 50 °C
There are no reviews
Data sheet
- Type: Under-voltage Releases
- Modules: 4
- Poles: 4P
- Breaking capacity: 25KA
