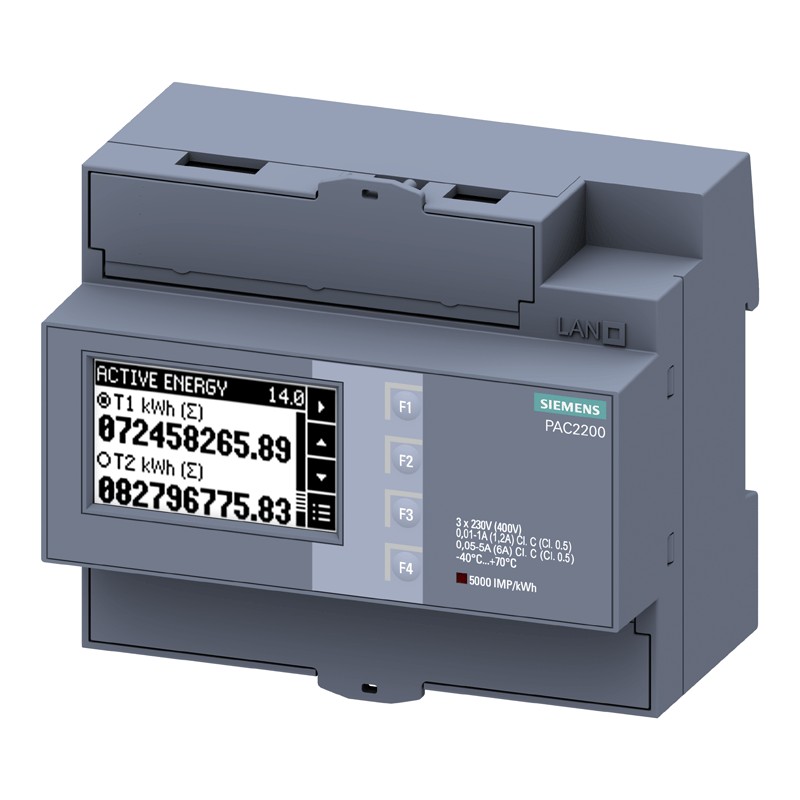

Siemens Sentron PAC2200 measuring device Din connection 7KM22002EA301DA1
SIE 7KM22002EA301DA1
4001869538525
Siemens Sentron PAC2200 measuring device:
- 7 km PAC2200
- LCD
- L-L: 400 V
- L-N: 230 V
- 5 A
- DIN rail-mounted device
- Three-phase Modbus RTU, apparent energy/active energy/reactive energy, self-powered, screw terminal.
€342.43
Items Available: 6
Supply voltage:
- between L and L / min. 3 V
- between L and L / max. 480 V
- between N and L / min. 3 V
- between N and L / max. 276 V.
Features:
- IP40 degree of protection
- execution by type of electric meter current transformer
- execution of electric meter tariff Two tariffs
- execution of electric meter energy type active and apparent power
- short-time overload current 100 A
- frequency of use / rated value min. 45 Hz - max. 65 Hz
- usage current / rated value 5 A
- suitability for use Imported/exported energy
- product function: reversing block Si - block code Si
- execution of digital display
- number of characters representable 12
- number of width modular units 6
- net weight 405 g.
There are no reviews
Data sheet
- Type: Meters
